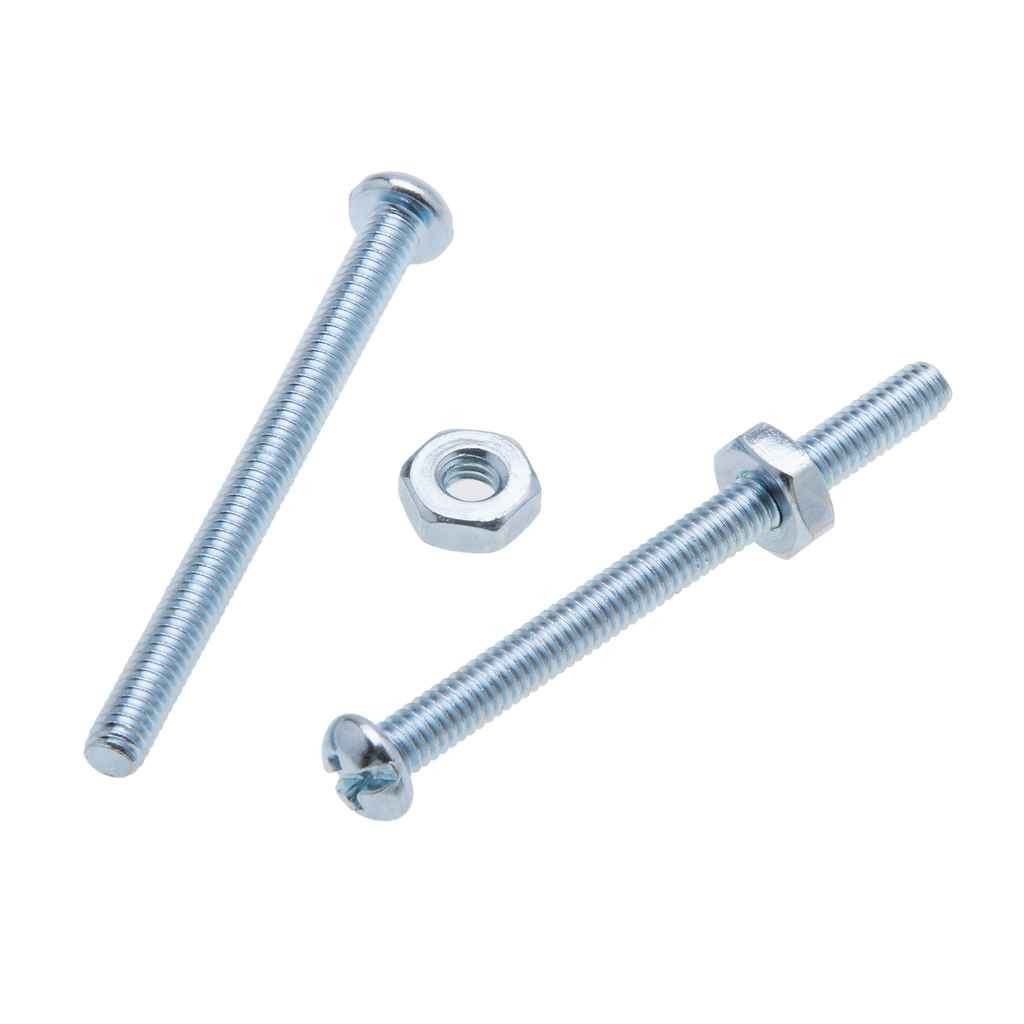

10-32 x 1-1/4 in. Round Head Combo Stove Bolt Screws with Hex Nut - Steel Zinc - 100qty
Features
- Hex Machine Screw Nut is designed to be used specifically with machine screws.
- Round head with slotted and Phillips Drive
- 10-32 Diameter, 1-1/4" Length
- Steel Zinc Material
- Includes Hex nut
Additional Notes
- Standard Package Square Plastic Jar | Two drives in one head | other sizes and quantities available by request | Steel machine screws which have a nominal diameter smaller than #4 are not subject to tensile testing. No. 4 and No. 5 machine screws which are shorter than 1/2" are not subject to tensile testing. Steel machine screws of diameters No. 6 to 1/2" inclusive, which are shorter than either 1/2" or 3D (where D is the nominal screw size in inches) are not subject to tensile testing. Such steel machine screws of a size to be tested shall meet the tensile load requirements listed above.
Manufacturer Resources
Product Specs
- Minimum Purchase:
- 100 units
- Arra Compliant:
- N
- Buy American Compliant:
- No
- Dimensional Standard:
- ANSI B18.6.3
- Division:
- Electrical H1
- Drive Type:
- Slotted/Phillips
- Driver Size:
- #2
- Fastener Head Height:
- 0.123 - 0.137 in.
- Fastener Head Type:
- Round
- Fastener Head Width:
- 0.334 - 0.359 in.
- Fastener Length:
- 1/1/04
- Field Application:
- Electrical, Plumbing, Heating, Air Conditioning Industries
- Hardness:
- Rockwell B70-B100
- Language Code:
- EN
- Material Standard:
- AISI 1006 - 1022
- Neurspe:
- https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Stove_Bolt.pdf
- Order Minimum Imperial:
- 100
- Order Minimum Uom Imperial:
- JR
- Pack Type:
- Clamshell
- Phillips Recess Depth:
- 0.119
- Phillips Recess Diameter:
- 0.182 - 0.195
- Phillips Recess Width:
- 0.031
- Product Group:
- Bolts
- Product Height:
- 3.6 in
- Product Length:
- 3 in
- Product Weight:
- 1.28 lbs
- Product Width:
- 3 in
- Slot Depth:
- 0.065 - 0.087
- Slot Width:
- 0.05 - 0.06
- Sub Division:
- Electrical-E H2
- Tensile Strength:
- 60000 psi minimum
- Thread Direction:
- Right Hand
- Thread Per Inch:
- 32
- Department:
- Fasteners
- Product Subgroup:
- Specialty Bolts
- Product Type:
- Stove Bolt
- Type2:
- Stove Bolt
- Series:
- RSB
- Product Finish:
- Zinc
- Product Details:
- Stove Bolt
- Product Material:
- Steel Zinc
Metallics RSB19 – Frequently Asked Questions
1) Does the Metallics RSB19 stove bolt come with nuts, or do I have to order those separately?
Each RSB19 10-32 x 1-1/4 in. round head stove bolt ships with a hex machine screw nut, so no separate nut order is needed. The nut is the machine screw type (not a coarse-thread hex nut), which is what mates correctly with the 32 threads per inch, right-hand thread on this bolt.
2) Are Metallics RSB19 stove bolts Buy American or ARRA compliant for a government job?
No. The RSB19 is not Buy American compliant and is not ARRA compliant, and its country of origin is listed as multiple. If your federal, state, or institutional contract carries a domestic sourcing clause, this fastener will not satisfy it.
3) Is a 10-32 machine screw thread the same as a sheet metal screw, and will it bite into an untapped hole?
It is not the same. The RSB19 carries a 32 threads per inch right-hand machine screw thread, which needs either a tapped hole or the supplied hex nut on the back side. It will not form its own thread in bare sheet metal the way a self-tapping screw does. Most electrical enclosures, device boxes, and ground lug holes are tapped 10-32, which is where this bolt belongs.
4) What driver do I need for the Metallics RSB19 stove bolt, Phillips or flat?
Either. The RSB19 has a combination head with both a slot and a Phillips recess, so a #2 Phillips driver or a flat blade will both seat. The slot runs 0.05 to 0.06 in. wide and 0.065 to 0.087 in. deep; the Phillips recess is 0.182 to 0.195 in. diameter at 0.119 in. deep. For overhead work in a panel or box, the Phillips side holds the bit better.
5) Is the 10-32 Metallics stove bolt made to a dimensional standard I can put on a submittal?
Yes. The RSB19 is manufactured to ANSI B18.6.3 for head and drive dimensions, with steel in the AISI 1006 to 1022 range, a hardness of Rockwell B70 to B100, and a minimum tensile strength of 60,000 psi. That is the data an MRO or institutional buyer needs for a fastener submittal on electrical, plumbing, or HVAC work.
6) Is the 1-1/4 inch length right, or do I need a shorter 10-32 bolt?
At 1-1/4 in. of length under the round head, the RSB19 suits stacked material, strut, or standoff work where a short machine screw bottoms out. If you are only fastening a cover plate or a single thickness of enclosure steel, that extra shank will protrude past the nut; other sizes and quantities in the Metallics RSB series are available by request.
7) How many Metallics RSB19 bolts come in a package and how are they packed?
The RSB19 is sold in a 100 piece quantity, with a minimum order of 100, packed in a clamshell. That jar-and-clamshell packaging is what makes it practical to keep on a service van or in a shop bin rather than loose in a bag.
8) Do these 10-32 stove bolts get tensile tested, and does that affect the 60,000 psi rating?
The 60,000 psi minimum tensile applies to steel machine screws of a size subject to testing. Per the governing criteria, screws from No. 6 to 1/2 in. diameter that are shorter than 1/2 in. or 3D (three times the nominal diameter) are not tensile tested. A 10-32 at 1-1/4 in. is longer than 3 times its nominal diameter, so it falls in the tested category and the 60,000 psi minimum applies.
