Metallics JBSC10321 10-32 x 1 ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.33
$0.33

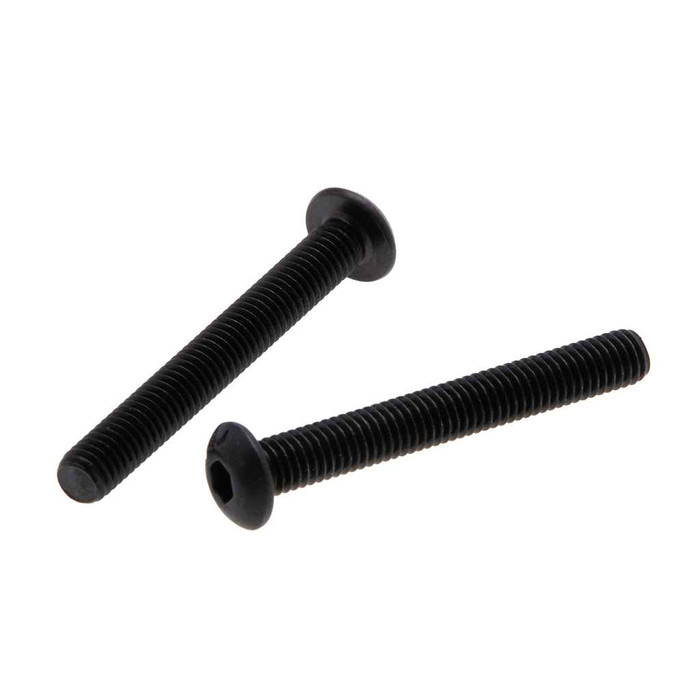

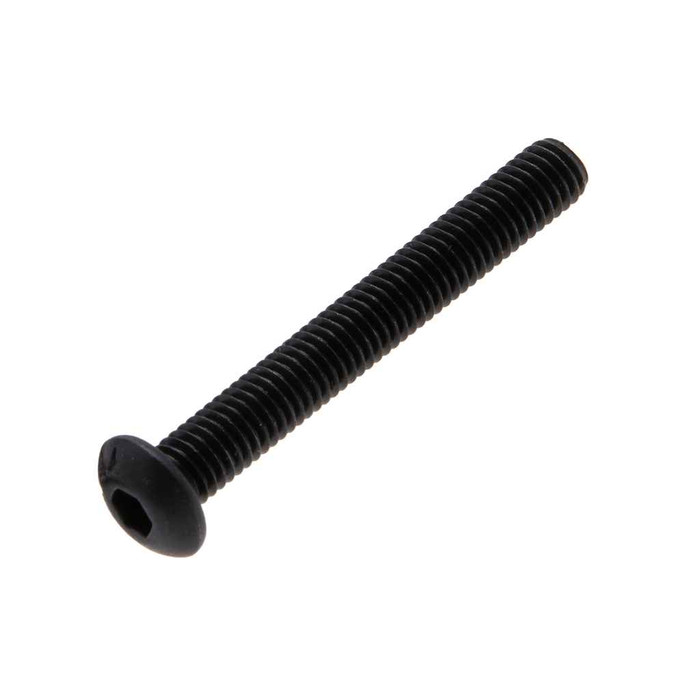

Metallics JBSC10321 10-32 x 1 in. Socket Button Head Hex Cap Screws - Alloy Steel Black - 100qty

Metallics JBSC10321 10-32 x 1 in. Socket Button Head Hex Cap Screws - Alloy Steel Black - Each

(No reviews yet) Write a Review

Model: JBSC10321
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.33
$0.33
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
10-32 x 1 in. Socket Button Head Hex Cap Screws - Alloy Steel Black - 100qty

  • Features

    • Alloy Steel Black Material
    • The are not recommended for critical, high-strength applications.
    • Screws are supplied plain.
    • Button Socket head with Hex Drive
    • 10-32 Diameter, 1" Length

  • Additional Notes

    • Other sizes and quantities available by request | 8% minimum (applies to machined specimens of lengths at least 4D where D equals the nominal diameler of the screw) | 35% minimum (applies to machined specimens) | Screws must be of a length equal to or greater than 3 diameters to be subject to tensile testing | Class 3A threads over 1" diameter screws are Class 2A threads

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
C
Buy American Compliant:
C
Dimensional Standard:
ASME B18.3-2012
Division:
Electrical H1
Drive Type:
Hex
Fastener Head Height:
0.091 - 0.101 in.
Fastener Head Type:
Socket
Fastener Head Width:
0.347 - 0.361 in.
Fastener Length:
1
Hardness:
Rockwell C39-44
Hex Size:
8-Jan
Language Code:
EN
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Socket_Head_Button_Screw.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
CT
Pack Type:
Jar
Product Group:
Fasteners
Product Height:
2.15 in
Product Length:
3 in
Product Weight:
0.73 lbs
Product Width:
3 in
Slot Depth:
0.07
Sub Division:
Electrical-E H2
Tensile Strength:
2440 lb minimum
Thread Per Inch:
32
Thread Standard:
ANSI/ASME B1.1
Thread Type:
UN
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Cap Screw
Type2:
Cap Screw
Series:
BSC
Product Finish:
Black
Product Details:
Cap Screw
Product Material:
Alloy Steel Black

Metallics JBSC10321 – Frequently Asked Questions

1) How much clearance does the button head need, and will it sit nearly flush in a tight space?
The head measures 0.347 to 0.361 inch across and only 0.091 to 0.101 inch tall, so it stands under a tenth of an inch off the surface. That low profile is why button heads get used on panel covers, enclosure doors, and anywhere a socket cap head would snag, but it is not a flush or countersunk screw. If you need it truly flush with the surface, use a flat head socket screw instead.
2) Is the black finish on these screws a corrosion coating suitable for outdoor or damp locations?
No. The material is alloy steel with a black finish and the screws are supplied plain, meaning there is no plating or protective coating applied. Plain alloy steel will rust in wet or exterior conditions. Keep these to dry interior work, or choose a stainless or zinc-plated screw for damp and outdoor locations.
3) How are these 10-32 x 1 in. screws packaged, and what is the minimum I can buy?
They ship in a jar of 100 pieces, and 100 count is the order minimum. Total weight of the jar is 0.73 lbs. Metallics offers other sizes and quantities by request.
4) Do these Metallics cap screws meet a recognized dimensional spec for submittals?
They are manufactured to ASME B18.3-2012 for socket cap screw dimensions and ANSI/ASME B1.1 for the threads, so head and thread geometry are to published standard, which is what a spec reviewer or MRO buyer standardizing a parts crib is checking for. Hardness is Rockwell C39-44.
5) Are Metallics JBSC10321 screws Buy American or ARRA compliant for a government or institutional job?
Metallics lists the JBSC10321 as compliant for both Buy American and ARRA purposes. Country of origin is China. If your contract language treats domestic origin and Buy American compliance as the same requirement, verify against your own contract terms, since the two are separate determinations.
6) Is a 1 inch long 10-32 screw long enough to be tensile tested to its rated strength?
Yes. Metallics notes screws must be at least 3 diameters long to be subject to tensile testing, and a 1 inch length on a 10-32 (0.190 inch nominal diameter) is well past that. The published minimum is 2440 lb. The elongation and reduction figures Metallics cites, 8 percent and 35 percent minimum, apply to machined specimens, not to the as-supplied screw.
