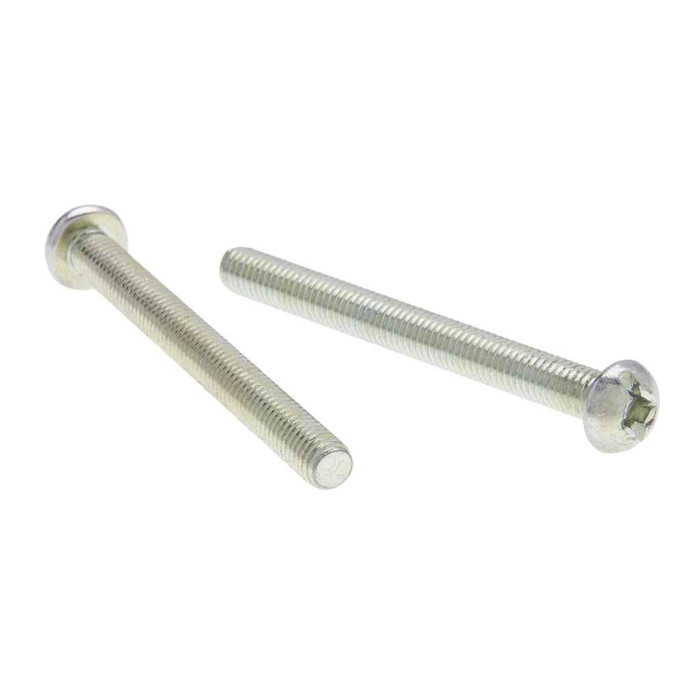

Metallics JTRM92 10-32 x 3/4 in. Round Head Tri-Drive Machine Screws - Steel Zinc - 100qty

Metallics JTRM92 10-32 x 3/4 in. Round Head Tri-Drive Machine Screws - Steel Zinc - Each

(No reviews yet) Write a Review

Model: JTRM92
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.31
$0.31
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
10-32 x 3/4 in. Round Head Tri-Drive Machine Screws - Steel Zinc - 100qty

  • Features

    • Made in the USA
    • Round head with slotted, Phillips and square Drive
    • Steel Zinc Material
    • 10-32 Diameter, 3/4" Length

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Division:
Electrical H1
Fastener Head Type:
Round
Pack Type:
Jar
Product Group:
Fasteners
Sub Division:
Electrical-E H2
Department:
Electrical
Product Subgroup:
Screws
Product Material:
Steel Zinc

Metallics JTRM92 – Frequently Asked Questions

1) Will a 10-32 machine screw thread into a standard electrical box or panel ground hole?
Yes. 10-32 is the machine screw thread used for ground screws and device mounting in steel outlet boxes, panels, and enclosures, and the JTRM92 is a 10-32 thread at 3/4 inch length. The 3/4 inch shank gives you enough reach for a ground lug or stacked washers; if you only need to catch a tapped hole flush, a shorter 10-32 is the better pick.
2) Do I need a nut with these, or do they thread into the metal?
Machine screws like the JTRM92 need a mating thread: a tapped hole, a nut, or a threaded insert. There is no self-tapping point on it. For a 10-32 bolted connection through sheet metal, order 10-32 nuts separately; for a tapped box or panel hole, the screw alone is all you need.

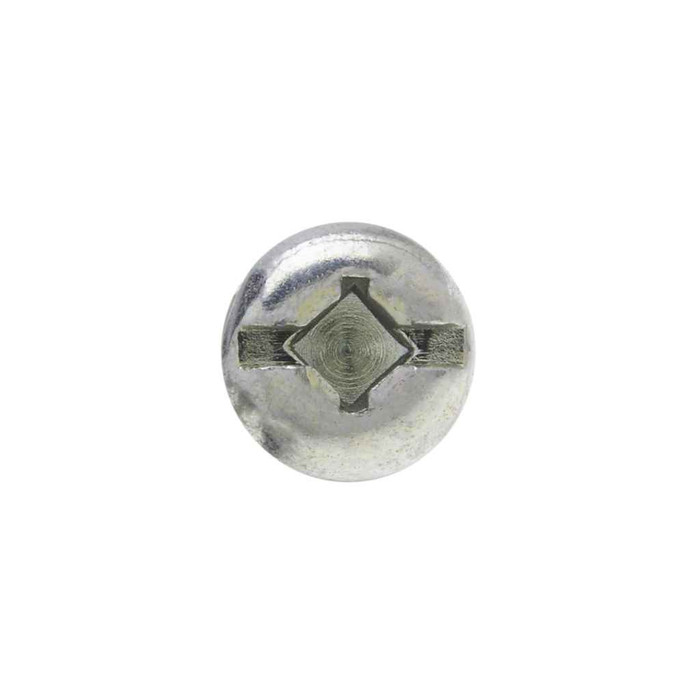

3) What drivers can I use on Metallics JTRM92 tri-drive machine screws?
The JTRM92 round head has three drive recesses in one head: slot, Phillips, and square. So a flat blade, a Phillips bit, or a square (Robertson) bit all drive it. Handy on a panel or box job where whatever is in your pouch will work.
4) Are these zinc screws OK for outdoor or damp locations?
The JTRM92 is steel with a zinc plating, which is a dry-location and general indoor finish. It resists handling and storage corrosion, not standing weather or washdown. For exterior enclosures, coastal sites, or wet locations, specify a stainless 10-32 machine screw instead.
5) What is the difference between a round head and a pan or truss head 10-32 screw?
The JTRM92 uses a round head, a domed profile that sits proudly on the surface and bears on a smaller footprint than a pan or truss head. That is fine for threading into tapped metal, cover plates, and grounding work. If you are clamping a slotted or oversized hole and need more bearing area, a truss or washer head is the better choice.
6) How do Metallics JTRM92 screws come packaged?
They ship in a jar, which is the shop-bin pack for this fastener rather than a loose bag. Convenient to keep on a van shelf or a bench without the screws spilling.
