Metallics JTEKDHH19M 10 x 1-1/...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.27
$0.27

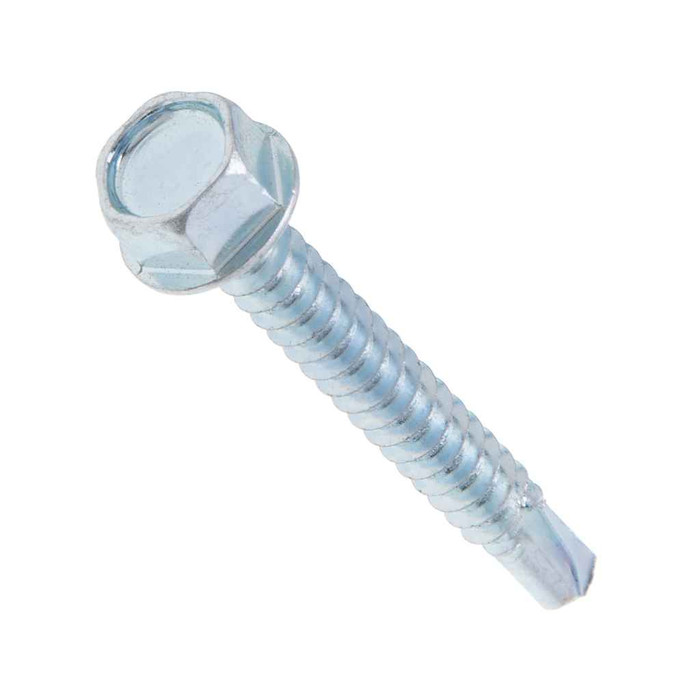

Metallics JTEKDHH19M 10 x 1-1/2 in. 5/16 High Hat Hex Head Self-Drilling & Tapping Screws with Washer - #3 Drill Point - Steel Zinc - 1000qty

Metallics JTEKDHH19M 10 x 1-1/2 in. 5/16 High Hat Hex Head Self-Drilling & Tapping Screws with Washer - #3 Drill Point - Steel Zinc - Each

(No reviews yet) Write a Review

Model: JTEKDHH19M
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.27
$0.27
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
10 x 1-1/2 in. 5/16 High Hat Hex Head Self-Drilling & Tapping Screws with Washer - #3 Drill Point - Steel Zinc - 1000qty

  • Features

    • #3 Drill Point
    • 10 Diameter, 1-1/2" Length
    • 5/16 High Hat Hex Head with Hex Drive
    • Steel Zinc Material

  • Additional Notes

    • For Maximum Drilling Engagement “Don’t Slip When You Drive” | Other sizes and quantities available by request | SAE J78 does not include Specifications for #7 diameter drill screws. | This table is only a guide and does not constitute a warranty of any type.

Manufacturer Resources

Product Specs

Minimum Purchase:
1000 units
Arra Compliant:
C
Buy American Compliant:
C
Division:
Electrical H1
Drill Point Size:
#3
Drive Type:
Hex
Fastener Head Height:
0.125 - 0.13 in.
Fastener Head Type:
Hex "High Hat" Washer
Fastener Head Width:
0.305 - 0.312 in.
Fastener Length:
1/1/02
Hardness:
Rockwell C32-40
Language Code:
EN
Material Standard:
AISI 1016 - 1024
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-High_Hat_Washer_Hd_Self_Drill_TS.pdf
Order Minimum Imperial:
1000
Order Minimum Uom Imperial:
TH
Pack Type:
Jar
Panel Thickness:
0.110 - 0.175 IN
Product Group:
Fasteners
Product Height:
7.25 in
Product Length:
4.5 in
Product Weight:
10.5 lbs
Product Width:
4.5 in
Screw Point Type:
Drill Point
Sub Division:
Electrical-E H2
Thread Per Inch:
16
Thread Standard:
SAE J78 - 2013
Torsional Strength:
61 lb-in minimum
Washer Od:
0.364 - 0.414 in.
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Type BSD Self-Drilling & Tapping Screw
Type2:
Type BSD Self-Drilling & Tapping Screw
Series:
JTEKDHH
Product Finish:
Zinc
Product Details:
Type BSD Self-Drilling & Tapping Screw
Product Material:
Steel Zinc

Metallics JTEKDHH19M – Frequently Asked Questions

1) Will these screws snap off when I drive them with an impact driver?
Torsional strength is 61 lb-in minimum, with case hardness at Rockwell C32-40 on AISI 1016-1024 steel. That is enough for normal drill-screw gun work, but an impact driver can easily exceed 61 lb-in once the head seats. Use a screw gun with a depth-sensing nose or a clutch set to stop at seat rather than an uncontrolled impact.
2) Do these screws meet Buy American requirements for a federal or public works job?
Metallics lists the JTEKDHH19M as Buy American compliant and ARRA compliant. Country of origin is listed as multiple, so if your specification requires a single named origin on the submittal, request origin documentation for the specific lot you are receiving.
3) Does this screw have a built-in washer, or do I add one?
The washer is integral. It is a hex "high hat" washer head with a washer outside diameter of 0.364 to 0.414 inch, so you get the extra bearing surface without stacking a separate washer under the head. That wider footprint is what keeps it from pulling through strap, clip, and light-gauge channel work.
4) What thread pitch is a #10 self-drilling screw, and will it match my existing fasteners?
16 threads per inch, which is the standard #10-16 self-drilling (Type BSD) thread. It is built to SAE J78 - 2013, so it interchanges with other J78 #10-16 drill screws of the same length and point size.
5) Can I use zinc-plated self-drilling screws outdoors or on a rooftop?
The JTEKDHH19M is zinc-plated steel. Zinc plating is a mild corrosion coating meant for dry interior and protected work such as conduit strap, clip, and panel mounting. For exposed rooftop, coastal, or wash-down locations, specify a stainless or coated exterior-rated drill screw instead.
6) How do these Metallics screws ship, and is there a minimum order?
They come in a jar of 1000, and 1000 is the order minimum. The packed jar weighs 10.5 lbs. If you need a count other than a full thousand, other sizes and quantities are available by request.
7) Is a 1-1/2 inch drill screw too long for fastening strut or strap to steel?
At #10 x 1-1/2 inch it is a long-shank drill screw, meant for work where you are fastening through a spacer, strap, clip, or stacked material before reaching steel in the 0.110 to 0.175 inch range. If you are fastening a thin strap flat to a stud with nothing between, a shorter #10 in the same JTEKDHH series will seat the threads without leaving excess point behind the panel.
