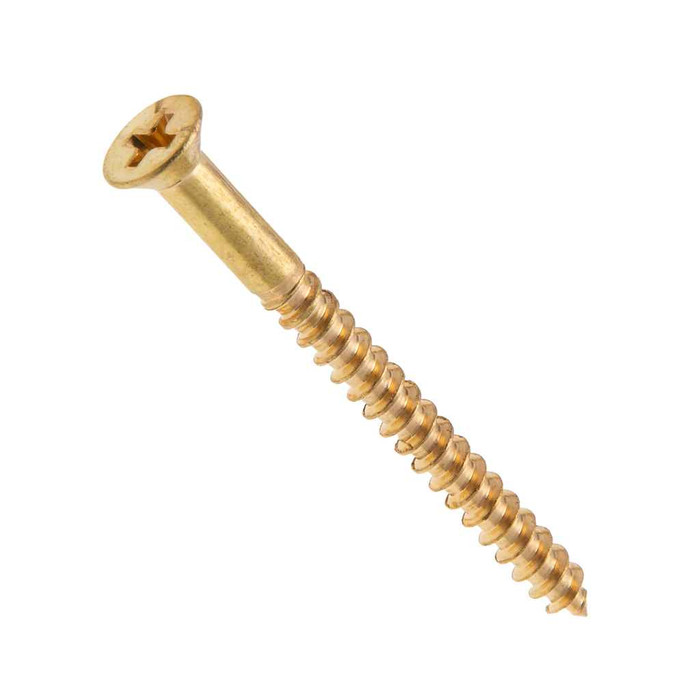

Metallics JFWPB31 10 x 1-1/2 in. Flat Head Phillips Wood Screws - Brass - 100qty

Metallics JFWPB31 10 x 1-1/2 in. Flat Head Phillips Wood Screws - Brass - Each

(No reviews yet) Write a Review

Model: JFWPB31
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$192.86
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
10 x 1-1/2 in. Flat Head Phillips Wood Screws - Brass - 100qty

  • Features

    • Brass Material
    • Flat Head with Phillips Drive
    • 10 Diameter, 1-1/2" Length

  • Additional Notes

    • Other sizes and quantities available by request | Length of Thread: Length = 1 inch then 2/3 thread

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Dimensional Standard:
ASME B18.6.1
Division:
Electrical H1
Drive Type:
Phillips
Driver Size:
#3
Fastener Head Height:
0.116 in.
Fastener Head Type:
Flat
Fastener Head Width:
0.34 - 0.385 in.
Fastener Length:
1/1/02
Field Application:
Electrical, Plumbing, Heating, Air Conditioning Industries
Language Code:
EN
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Flat_Head_Wood_Screw_Brass.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Phillips Recess Depth:
0.123 - 0.146
Phillips Recess Diameter:
0.245 - 0.258
Phillips Recess Width:
0.034
Product Group:
Fasteners
Product Height:
2.7 in
Product Length:
3 in
Product Weight:
0.89 lbs
Product Width:
3 in
Sub Division:
Electrical-E H2
Thread Per Inch:
13
Thread Standard:
ASME B18.6.1-1997
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Wood Screw
Type2:
Wood Screw
Series:
JFWPB
Product Details:
Wood Screw
Product Material:
Brass

Metallics JFWPB31 – Frequently Asked Questions

1) How many screws come in a pack of the Metallics JFWPB31 brass wood screws?
They ship in a jar of 100, and 100 is the order minimum, so the smallest quantity you can buy is one full jar. If you need a different count or a different size in the same flat head brass line, other sizes and quantities are available by request.
2) What size Phillips driver do I need for these #10 brass wood screws?
A #3 Phillips bit is the correct driver. The recess measures 0.245 to 0.258 inch across, 0.123 to 0.146 inch deep, with a 0.034 inch slot width, so a #2 bit will sit shallow in it and cam out. Brass is soft, so a #3 bit seated fully and moderate torque matter more here than they would on a steel screw.
3) Will a #10 flat head screw sit flush in a standard countersink?
Yes, if the countersink is cut for a #10 flat head. The head measures 0.34 to 0.385 inch across with a 0.116 inch head height, and the screw is made to ASME B18.6.1, so it drops into any standard 82 degree countersink or a factory-countersunk hole in a strike plate, hinge, or escutcheon and finishes level with the surface.
4) Are these Metallics brass screws Buy American or ARRA compliant for a federal job?
No. The JFWPB31 brass wood screw is not Buy American compliant and is not ARRA compliant, and country of origin is listed as multiple. If your contract carries a domestic sourcing clause, this part will not satisfy it and you will need a domestically sourced fastener instead.
5) How much of the 1-1/2 inch length is actually threaded?
On this brass flat head line, screws over 1 inch long are threaded for two thirds of their length, so a 1-1/2 inch #10 carries roughly an inch of thread with a plain shank under the head. Thread pitch is 13 threads per inch to ASME B18.6.1-1997. The unthreaded shank is what lets the top member pull tight against the bottom one, which is why you want the shank length to roughly match the thickness of the piece you are fastening through.
6) Do I need to pre-drill for brass wood screws, or can I drive them straight in?
Pre-drill. Brass is a soft material, and a #10 at 13 threads per inch driven dry into hardwood will shear the head off or strip the recess before it seats. Drill a pilot for the thread in the lower member, a clearance hole for the shank in the top member, and countersink for the 0.34 to 0.385 inch head. On harder stock, running a steel screw of the same size in first and backing it out saves broken brass.
7) Is the JFWPB31 a #10 by 1-1/2 inch screw, and what is the exact part number to order?
Order it as Metallics JFWPB31, a #10 diameter by 1-1/2 inch flat head Phillips wood screw in brass, from the JFWPB series. Within that series the part number changes with diameter and length, so the JFWPB31 designation is what pins down this exact #10 x 1-1/2 inch combination.
