Metallics JSTS23 10 x 1-1/4 in...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$192.86

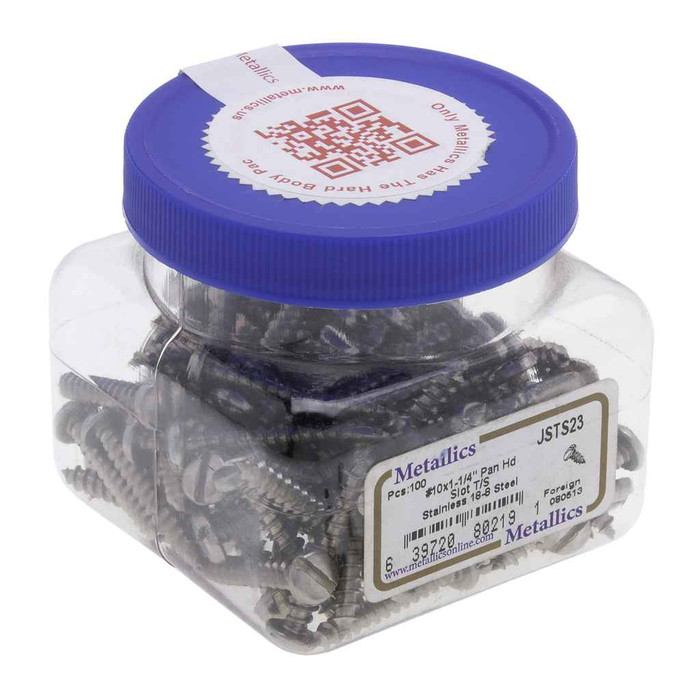

Metallics JSTS23 10 x 1-1/4 in. Pan Head Slotted Tapping Screws - 18-8 Stainless - 100qty

Metallics JSTS23 10 x 1-1/4 in. Pan Head Slotted Tapping Screws - 18-8 Stainless - Each

(No reviews yet) Write a Review

Model: JSTS23
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$192.86
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
10 x 1-1/4 in. Pan Head Slotted Tapping Screws - 18-8 Stainless - 100qty

  • Features

    • Pan head with Slotted Drive
    • Fastening stainless steel parts to aluminum or steel can cause a type of corrosion known as a galvanic couple in some environments.
    • 18-8 Stainless Material
    • 10 Diameter, 1-1/4" Length

  • Additional Notes

    • Other sizes and quantities available by request | Dimensions for #9 diameter are independent of ASME B18.6.4

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Dimensional Standard:
ASME B18.6.3-2013
Division:
Electrical H1
Drive Type:
Slotted
Fastener Head Height:
0.099 - 0.11 in.
Fastener Head Type:
Pan
Fastener Head Width:
0.357 - 0.373 in.
Fastener Length:
1/1/04
Field Application:
Electrical, Plumbing, Heating and Air Conditioning Industries
Language Code:
EN
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Pan_Slotted_Phillips_Self_Tap_SS.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Product Group:
Fasteners
Product Height:
2.7 in
Product Length:
3 in
Product Weight:
0.87 lbs
Product Width:
3 in
Screw Point Type:
Gimlet Point
Slot Depth:
0.053 - 0.068
Slot Width:
0.05 - 0.06
Sub Division:
Electrical-E H2
Thread Per Inch:
12
Thread Standard:
ASME B18.6.4
Torsional Strength:
48 lb-in minimum
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Type A Tapping Screw
Type2:
Type A Tapping Screw
Series:
JSTS
Product Details:
Type A Tapping Screw
Product Material:
18-8 Stainless

Metallics JSTS23 – Frequently Asked Questions

1) Will a #10 x 1-1/4 stainless tapping screw hold in sheet metal without a pre-tapped hole?
Yes. The JSTS23 is a Type A tapping screw with a gimlet point, so it forms its own thread in a drilled pilot hole in sheet metal. Thread pitch is 12 threads per inch to the ASME B18.6.4 thread standard, and each screw is rated to 48 lb-in minimum torsional strength, so it can be driven to full seat without snapping the head off in normal sheet-metal work.
2) Can I use these 18-8 stainless screws to fasten into aluminum or steel?
Mechanically yes, but be aware of the galvanic issue: fastening stainless steel parts to aluminum or steel can set up a galvanic couple and corrode in some environments, particularly damp or coastal ones. For dry indoor boxes and straps it is a non-issue; for exterior or wet locations on aluminum, consider matching the fastener material to the substrate.
3) Are Metallics JSTS23 screws Buy American or ARRA compliant for a government job?
No. The JSTS23 is not Buy American compliant and is not ARRA compliant, with country of origin listed as multiple. If your project carries a domestic-content requirement, this part will not satisfy it.
4) How much does the pan head on a #10 tapping screw stick up and how wide is it?
Head width is 0.357 to 0.373 inch and head height is 0.099 to 0.110 inch. That is a low, broad bearing surface, so it spreads load on thin sheet and clears most cover plates and enclosure doors without interference. Dimensions follow ASME B18.6.3-2013.
5) What trades actually use these Metallics JSTS tapping screws?
They are catalogued for the electrical, plumbing, heating and air conditioning industries. Typical use is mounting straps, brackets, covers, and duct or enclosure hardware to sheet metal where a self-tapping stainless fastener is wanted for corrosion resistance.
6) Can I get the JSTS screws in other lengths or diameters than 10 x 1-1/4?
Other sizes and quantities in the Metallics JSTS tapping screw line are available by request. One caution from the manufacturer: dimensions for #9 diameter screws fall outside ASME B18.6.4, so a #9 will not match the standard the #10 is built to.
