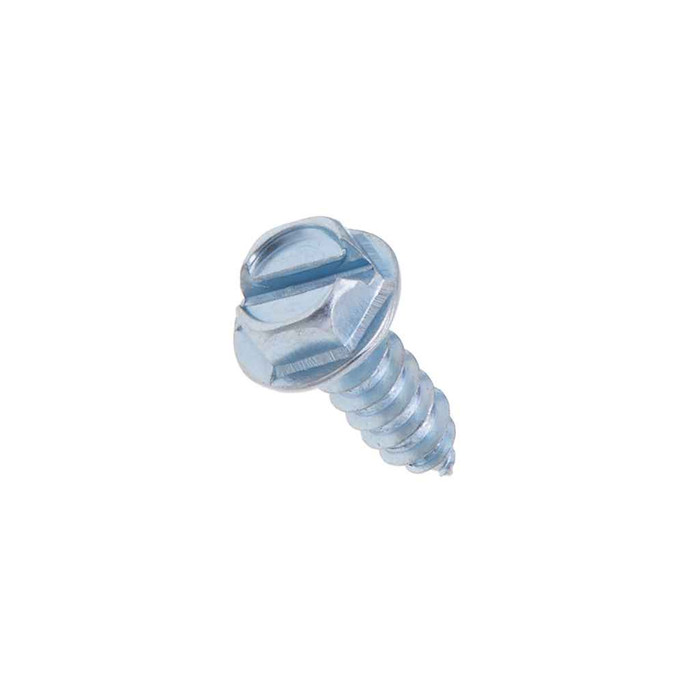

Metallics JDS158V 10 x 1 in. 1/4 Indented Hex Head Slotted Sharp Point Tapping Screws - Steel Zinc - 500qty

Metallics JDS158V 10 x 1 in. 1/4 Indented Hex Head Slotted Sharp Point Tapping Screws - Steel Zinc - Each

(No reviews yet) Write a Review

Model: JDS158V
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.16
$0.16
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
10 x 1 in. 1/4 Indented Hex Head Slotted Sharp Point Tapping Screws - Steel Zinc - 500qty

  • Additional Notes

    • Other sizes and quantities available by request | Dimensions for #9 diameter are independent of ASME B18.6.4

  • Features

    • Hex 1/4 Head with slotted Drive
    • 10 Diameter, 1" Length
    • Steel Zinc Material

Manufacturer Resources

Product Specs

Minimum Purchase:
500 units
Arra Compliant:
C
Buy American Compliant:
C
Dimensional Standard:
ASME B18.6.3-2010
Division:
Electrical H1
Drive Type:
Hex/Slotted
Fastener Head Height:
0.105 - 0.12 in.
Fastener Head Type:
Indented Hex
Fastener Head Width:
0.305 - 0.312 in.
Fastener Length:
1
Hardness:
RockweII C28-38
Language Code:
EN
Material Standard:
AISI 1016 - 1024
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Indent_Hex_Head_Slot_TS.pdf
Order Minimum Imperial:
500
Order Minimum Uom Imperial:
CT
Pack Type:
Jar
Product Group:
Fasteners
Product Height:
7.25 in
Product Length:
4.5 in
Product Weight:
3.05 lbs
Product Width:
4.5 in
Screw Point Type:
Gimlet Point
Slot Depth:
0.057 - 0.072
Slot Width:
0.05 - 0.06
Sub Division:
Electrical-E H2
Thread Per Inch:
12
Thread Standard:
ASME B18.6.4
Torsional Strength:
48 lb-in minimum
Washer Od:
0.384 - 0.414 in.
Washer Thickness:
0.019 - 0.031 IN
Width Across Corners:
0.34
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Type A Tapping Screw
Type2:
Type A Tapping Screw
Series:
JDS
Product Finish:
Zinc
Product Details:
Type A Tapping Screw
Product Material:
Steel Zinc

Metallics JDS158V – Frequently Asked Questions

1) What is a Type A tapping screw used for, and is the Metallics JDS158V right for sheet metal?
The Metallics JDS158V is a Type A tapping screw, meaning it has a sharp gimlet point and a coarse 12 threads-per-inch thread that forms its own thread in thin sheet metal as it drives. That makes it the screw for light-gauge steel work like mounting straps, boxes, and plates. It is not a machine screw, so it needs no nut or pre-tapped hole, just a pilot hole in the sheet.
2) Do these screws meet a published standard for a spec'd job?
Yes. The JDS158V is built to ASME B18.6.3-2010 for dimensions and ASME B18.6.4 for the tapping thread, with material per AISI 1016-1024 and a case hardness of Rockwell C28-38. Minimum torsional strength is 48 lb-in. One caveat the manufacturer notes: dimensions for the #9 diameter in this family fall outside ASME B18.6.4.
3) How many screws come in the JDS158V pack and how is it packaged?
The JDS158V ships 500 count in a jar, and 500 is the order minimum. If you need a different size or a different quantity of this indented hex head slotted tapping screw, Metallics builds other sizes and counts to request.
4) Will these Metallics tapping screws rust in a damp mechanical room or outdoors?
The JDS158V is carbon steel with a zinc finish, which handles indoor and damp interior conditions like mechanical rooms, plenums, and panel work. Zinc plating is not a marine or sustained-wet coating, so for direct exterior exposure or washdown areas step up to a stainless or hot dip galvanized fastener instead.
5) Are Metallics JDS158V tapping screws acceptable on a federally funded or Buy American job?
Metallics lists the JDS158V as both ARRA compliant and Buy American compliant. Country of origin is recorded as multiple, so if your contract requires a single documented origin, request that confirmation against the lot you are buying.
6) Can I use a self-drilling screw instead of this sharp point tapping screw?
They are not the same thing. The JDS158V has a gimlet point, which pierces and taps thin sheet but expects a pilot hole in heavier gauge. A self-drilling point cuts its own hole and is the better choice in thicker steel or where you cannot pre-drill. For light-gauge sheet metal, the Type A sharp point drives faster and strips less.
7) Is there an integral washer under the head on the JDS158V, and how much does it cover?
Yes, the indented hex head carries a washer face with an outside diameter of 0.384 to 0.414 inch and a thickness of 0.019 to 0.031 inch. That bearing surface spreads load on thin sheet and covers a slightly oversized hole, which is why this head style gets used for box and strap mounting.
8) How much will a jar of 500 of these screws weigh for shipping or a job cart?
A 500 count jar of the JDS158V weighs 3.05 lbs, with the container measuring 7.25 in by 4.5 in by 4.5 in. Light enough to toss several jars in a van stock bin.
