Leviton 4100M-B9W 100 Amp, 240...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$3,793.37
$3,743.37

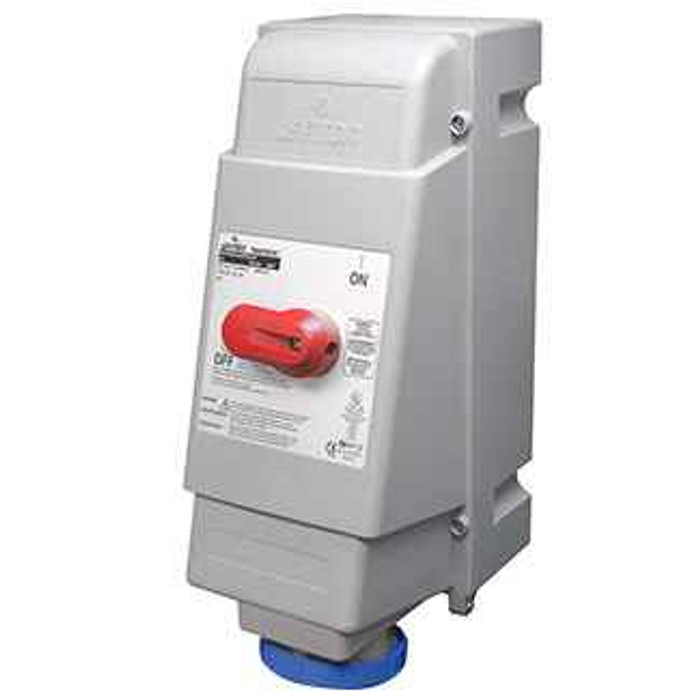

Leviton 4100M-B9W 100 Amp, 240 Volt 3-Phase, IEC 309-1 & 309-2, 3P, 4W, Mechanical Interlock North American Pin & Sleeve Receptacle, Hub Sold Separately (See Cat Number HUB-xxx), Industrial Grade, IP67, Watertight, Integrated Circuit Breaker

Leviton 4100M-B9W 100 Amp, 240 Volt 3-Phase, IEC 309-1 & 309-2, 3P, 4W, Mechanical Interlock North American Pin & Sleeve Receptacle, Hub Sold Separately (See Cat Number HUB-xxx), Industrial Grade, IP67, Watertight, Integrated Circuit Breaker

(No reviews yet) Write a Review

Model: LEV-4100M-B9W
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$3,793.37
$3,743.37
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
100 Amp, 240 Volt 3-Phase, IEC 309-1 & 309-2, 3P, 4W, Mechanical Interlock North American Pin & Sleeve Receptacle, Hub Sold Separately (See Leviton Cat Number HUB-xxx), Industrial Grade, IP67, Watertight, Integrated Circuit Breaker

Manufacturer Resources

Product Specs

Actuator Material:
Zinc-Coated Steel
At Rated Voltage:
30 HP
Ce Marking:
Per low voltage directives 73/23/EEC, 93/68/EEC
Cold Impact:
Same as above, after conditioning to -35C
Conduit Grounding Plate:
Zinc-Coated Steel
Contact Carrier:
Nylon
Cover Eyelet:
Nickel-Plated Brass
Cover With Arm:
Valox 357
Crush Test:
100 lbs
Current Interrupting:
Certified for current interrupting at full rated current
Device Type:
Mechanical Interlock
Dielectric Voltage:
1000 V plus rated voltage for 1-minute
Gasket Aging:
70C for 168 hours
Gasket Material:
Chloroprene
Ground Contacts:
Brass
Ground Terminal:
Plated Brass/Steel
Ground Terminal Block:
Nylon
Handle Material:
Valox 357
Housing Material:
Valox 357
Housing Screws:
Stainless Steel
Iec Rating:
60309-1 and 60309-2
Internal Screws:
Zinc-plated steel
Ip Rating:
IP67/IP69K
Locking Mechanism:
Valox 357
Locking Ring:
Valox 357
Mold Stress Relief:
70ºC for 7 hours
Neutral Terminal:
Plated Brass/Steel
Neutral Terminal Block:
Nylon
Operating Temperature:
-40°C to 60°C
Phase And Ground Sleeves:
Brass
Strength Of Insulating Base And Support:
110% of specified tightening torque on terminal screws
Switch Contacts:
Cadmium-Free Silver Alloy
Switch Material:
Reinforced Nylon
Switch Terminal Contacts:
Brass
Terminal Shaft Key:
Die-Cast Aluminum
Ul 508:
Non-Fused
Uv Resistance:
Exposed plastic materials are UV stabilized
Product Group:
Outlets
Department:
Electrical
Product Subgroup:
Switches & Receptacles
Amperage:
100 A
Color:
Blue
Configuration:
North American
Csa:
C22.2
Dust:
Type 12K per UL 50
Endurance:
6,000 cycles inductive motor type load
Flammability:
Rated V-0 per UL 94
Hosedown:
Type 4X per UL 50
Impact:
1.2 lb ball dropped from 5 ft
Phase:
3-Phase
Pole:
3
Pullout:
18 lb pull on internal wires
Rain:
Type 3R per UL 50
Ul:
231 & 1686
Voltage:
240 VAC
Wire:
4
!
