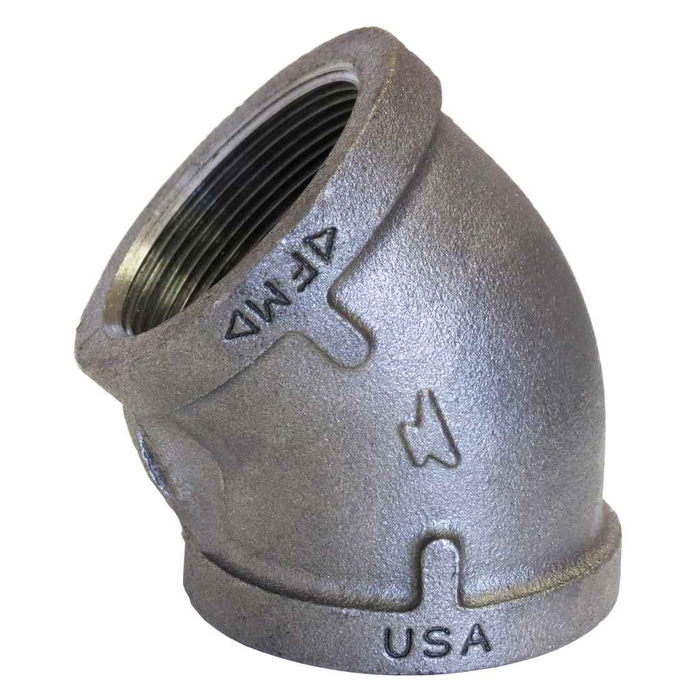

11/2 BLK MI 45 ELL
Manufacturer Resources
Product Specs
- Dimensions Specification:
- ASME B16.3
- End Conn Size 1:
- FPT
- End Conn Size 2:
- FPT
- Material Specification:
- ASTM A-197
- Pressure Rating Specification:
- ASME B16.3
- Size 1:
- 1.5
- Size 2:
- 1.5
- Strength:
- STD
- Thread Specification:
- ASME B1.20.1
- Ul Fm:
- Yes
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Elbows
- Product Type:
- 45° Elbow
- Product Finish:
- Black
- Product Material:
- Malleable Iron
- Product Weight:
- 1.13 lbs
ASC Engineered Solutions 310024203 – Frequently Asked Questions
1) What thread does the 1-1/2 inch black malleable iron 45 degree elbow take on each end?
Both ends are female pipe thread (FPT) at 1-1/2 inch, cut to ASME B1.20.1 NPT. So it threads directly onto male-threaded 1-1/2 inch black steel pipe nipples or field-cut pipe ends, no adapters needed.
2) Can I use this black malleable iron elbow on a fire sprinkler line?
It carries UL/FM approval, which is what an inspector looks for on sprinkler piping. It's standard (STD) class malleable iron to ASTM A-197, with pressure ratings per ASME B16.3. Confirm the class matches what the sprinkler drawings call for on your system pressure.
3) Will this elbow match the dimensions on my piping drawing?
Center-to-end dimensions follow ASME B16.3, the standard dimensional spec for threaded malleable iron fittings, so it will lay out the same as any other B16.3 1-1/2 inch 45 degree ell from any manufacturer. That matters when you're prefabbing spools off a drawing.
4) When should I use a 45 degree elbow instead of a 90 on a 1-1/2 inch black iron run?
Use the 45 when you need to offset around an obstruction or ease a direction change without the pressure drop of a hard 90. Two 45s and a short nipple make a clean offset. If you're turning a full right angle at a wall or riser, a 90 degree ell is the fitting to order.
5) How much does the ASC 1-1/2 inch black 45 degree ell weigh for shipping and hanger sizing?
1.13 lbs each. Worth counting into your hanger and support spacing when a spool has several fittings clustered together.
