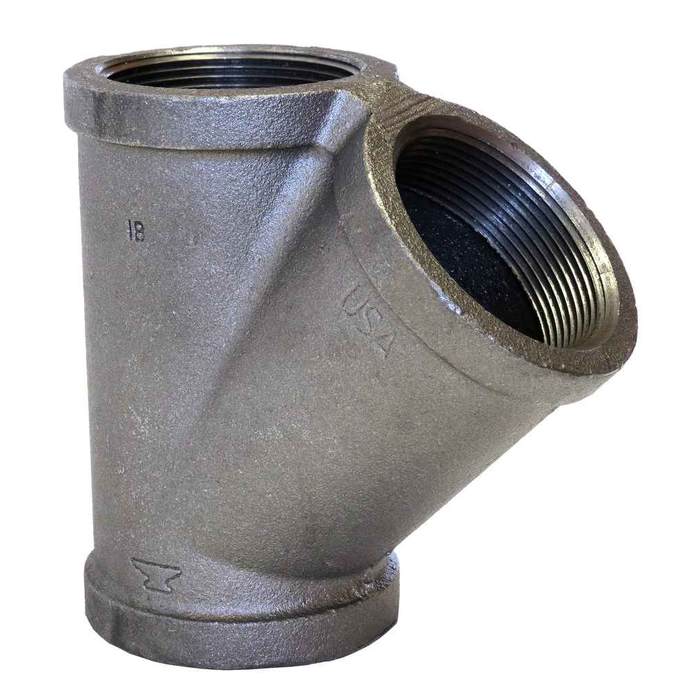

11/2 BLK MI WYE
Manufacturer Resources
Product Specs
- Dimensions Specification:
- ASME B16.3
- End Conn Size 1:
- FPT
- End Conn Size 2:
- FPT
- End Conn Size 3:
- FPT
- Material Specification:
- ASTM A-197
- Pressure Rating Specification:
- ASME B16.3
- Size 1:
- 1.5
- Size 2:
- 1.5
- Size 3:
- 1.5
- Strength:
- STD
- Thread Specification:
- ASME B1.20.1
- Ul Fm:
- Yes
- Department:
- Plumbing
- Product Group:
- Pipe Fittings
- Product Subgroup:
- Other Fittings
- Product Type:
- Fitting
- Product Finish:
- Black
- Product Material:
- Malleable Iron
- Product Weight:
- 2 lbs
ASC Engineered Solutions 310067400 – Frequently Asked Questions
1) Are all three openings on the 1-1/2 inch black malleable iron wye the same size?
Yes, all three ports are 1-1/2 inch, so it's a straight-size wye with no reduction on any branch. Every opening is female pipe thread (FPT), so it takes male-threaded pipe or nipples on all three sides.
2) Will this malleable iron wye thread onto standard NPT pipe?
Yes. The threads are cut to ASME B1.20.1, which is the standard NPT taper thread spec, so it mates with ordinary threaded black steel pipe and nipples. Use pipe dope or PTFE tape on the male threads as usual.
3) Is this wye approved for use on a fire sprinkler system?
It carries UL/FM approval, which is the listing fire protection contractors and AHJs look for on sprinkler piping components. It's standard weight malleable iron to ASTM A-197 with dimensions and pressure rating per ASME B16.3.
4) Can a black malleable iron wye be used on a potable water line?
No. Black malleable iron fittings are for non-potable service, typically gas, air, sprinkler and other black steel pipe systems. The black finish has no corrosion protection against water. For water lines you want a galvanized or brass fitting instead.
5) Will this wye match the laying dimensions on my piping drawing?
Dimensions are per ASME B16.3, the dimensional standard for threaded malleable iron fittings, so center-to-end lengths match any other B16.3 fitting of the same size and class. Drop-in substitution for another manufacturer's 1-1/2 inch standard weight B16.3 wye works.
6) What part number do I order for the ASC 1-1/2 inch black wye?
The manufacturer part number is 310067400 from ASC Engineered Solutions. It's a single configuration, 1-1/2 x 1-1/2 x 1-1/2 FPT, black malleable iron, weighing 2 lbs each.
