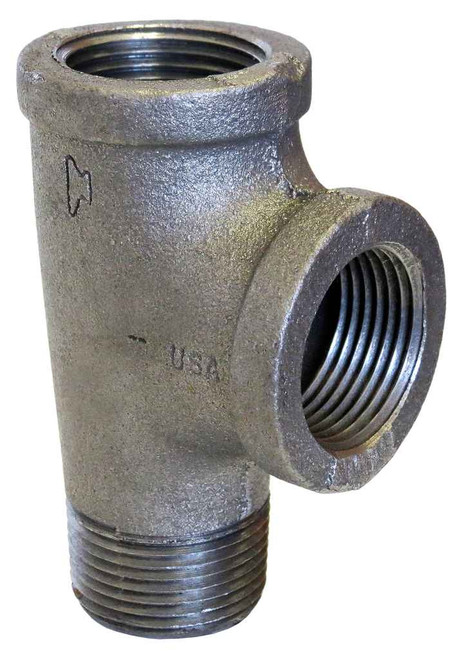

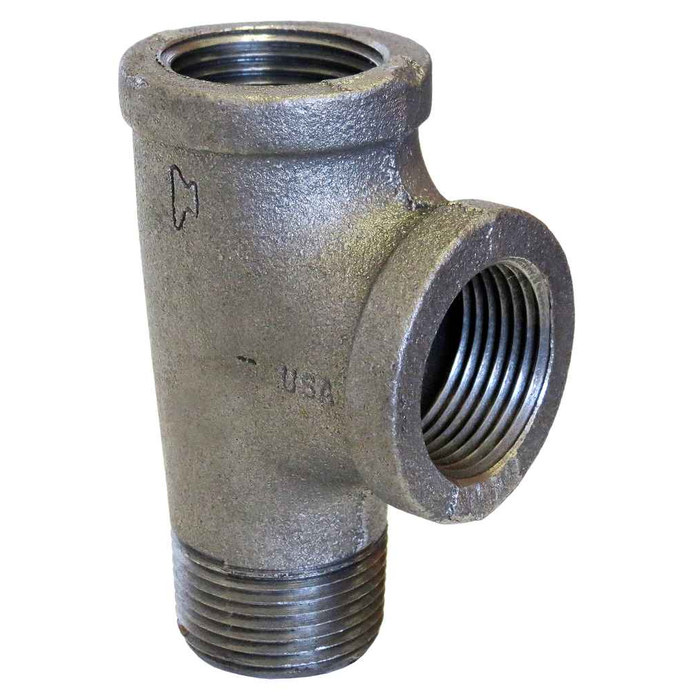

11/2 GALV MI STREET TEE
Manufacturer Resources
Product Specs
- Dimensions Specification:
- ASME B16.3
- End Conn Size 1:
- FPT
- End Conn Size 2:
- MPT
- End Conn Size 3:
- FPT
- Finish Specification:
- ASTM A-153
- Material Specification:
- ASTM A-197
- Pressure Rating Specification:
- ASME B16.3
- Size 1:
- 1.5
- Size 2:
- 1.5
- Size 3:
- 1.5
- Strength:
- STD
- Thread Specification:
- ASME B1.20.1
- Ul Fm:
- Yes
- Department:
- Plumbing
- Product Group:
- Pipe Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Finish:
- Galvanized
- Product Material:
- Malleable Iron
- Product Weight:
- 2 lbs
ASC Engineered Solutions 311062806 – Frequently Asked Questions
1) Is this 1-1/2 inch street tee full size on all three openings, or is one leg reduced?
All three openings are 1-1/2 inch, so it is a full-size straight tee, not a reducing tee. If you need the branch smaller than the run, this is not the fitting.
2) Can I use this galvanized malleable iron tee on a fire sprinkler line?
It is UL/FM recognized, and the pressure rating follows ASME B16.3, which is the governing standard for malleable iron threaded fittings. The galvanized finish is applied to ASTM A-153 (hot-dip on hardware), the usual choice for wet and dry sprinkler piping where corrosion is a concern. Confirm the rating matches the working pressure on your approved drawings.
3) Is this a standard weight or extra heavy fitting?
Standard weight (STD), which on malleable iron threaded fittings is the Class 150 line. Extra heavy (Class 300) fittings are thicker walled and carry a higher pressure rating; if your spec calls out Class 300, this one will not satisfy it.
4) Galvanized or black iron: which should I be buying for my application?
This is the galvanized version, with the zinc coating applied per ASTM A-153. Galvanized is what you want for domestic water, wet sprinkler service, outdoor runs, and anywhere condensation or damp will sit on the pipe. Black malleable iron is the normal pick for natural gas and for dry indoor mechanical piping. Do not mix galvanized into a gas line where the spec calls for black.
5) What is the material grade on this ASC malleable iron tee?
Malleable iron produced to ASTM A-197, the standard grade for cupola malleable iron pipe fittings. That is what gives the fitting its ductility, so it takes thread engagement and wrench torque without cracking the way a grey cast fitting would.
6) How much does one 1-1/2 inch galvanized street tee weigh for freight estimating?
Two pounds each. Worth doing the math if you are pulling a case quantity for a repipe, since malleable iron adds up fast on a pallet.
