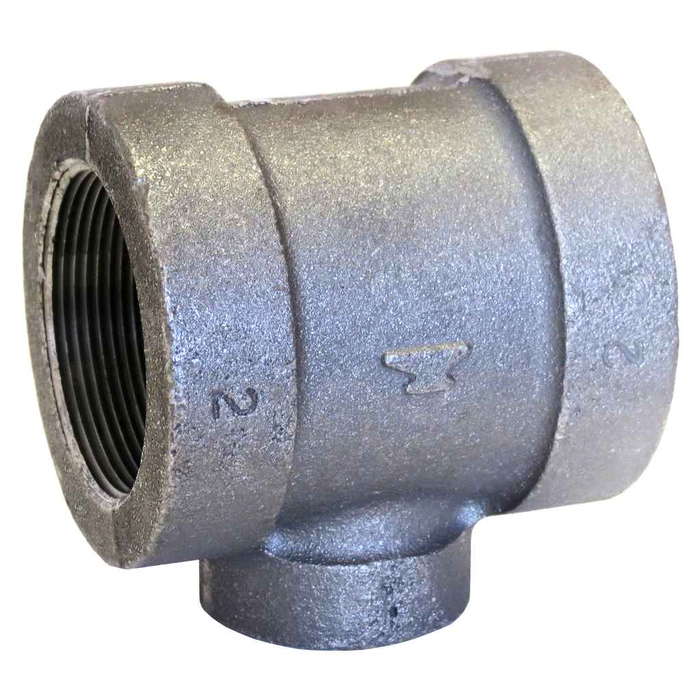

11/4X11/4X1 XH BLK MI TEE
Manufacturer Resources
Product Specs
- Dimensions Specification:
- ASME B16.3
- End Conn Size 1:
- FPT
- End Conn Size 2:
- FPT
- End Conn Size 3:
- FPT
- Material Specification:
- ASTM A-197
- Pressure Rating Specification:
- ASME B16.3
- Size 1:
- 1.25
- Size 2:
- 1.25
- Size 3:
- 1
- Strength:
- XH
- Thread Specification:
- ASME B1.20.1
- Ul Fm:
- Yes
- Department:
- Plumbing
- Product Group:
- Pipe Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Finish:
- Black
- Product Material:
- Malleable Iron
- Product Weight:
- 2.1 lbs
ASC Engineered Solutions 310522800 – Frequently Asked Questions
1) What size pipe does the ASC Engineered Solutions 310522800 black malleable iron tee take on each opening?
It's a reducing tee: two 1-1/4 inch openings on the run and a 1 inch branch. All three ends are female pipe thread (FPT), so it threads onto male-threaded pipe nipples, no welding or soldering.
2) Will this black malleable iron tee thread onto standard NPT pipe?
Yes. The threads are cut to ASME B1.20.1, which is the standard NPT taper thread spec, so it mates with any standard NPT male pipe or nipple. Use pipe dope or PTFE tape on the taper as usual.
3) Is this tee UL Listed and FM Approved for fire sprinkler work?
Yes, the 310522800 tee carries UL/FM recognition, so it can be used on fire protection piping where the AHJ requires listed and approved fittings. Confirm the class and working pressure against your system design.
4) Do I need a bushing to drop from 1-1/4 inch down to 1 inch at a branch?
Not with this fitting. The tee is already reduced on the branch, 1-1/4 x 1-1/4 x 1, so you tap off a 1-1/4 inch run straight into 1 inch pipe with no bushing. That removes one joint and one potential leak point compared with a full-size tee plus a reducing bushing.
5) What material spec does this ASC malleable iron tee meet?
The casting is ASTM A-197 malleable iron, with dimensions and pressure class to ASME B16.3. That combination is what most commercial and industrial piping specs call out for threaded malleable fittings, so it will match a spec line reading "malleable iron, ASTM A197, ASME B16.3".
6) Will an extra heavy tee interchange with a standard weight tee in the same run?
Yes, dimensionally. Both are built to ASME B16.3 center-to-end dimensions with ASME B1.20.1 threads, so the XH tee drops into the same makeup length as a standard weight fitting of the same sizes. The difference is wall thickness and pressure class, not layout.
7) How much does this 1-1/4 x 1-1/4 x 1 extra heavy tee weigh?
About 2.1 lbs each. Worth knowing if you're figuring hanger spacing and support loads on a long threaded run, since extra heavy fittings add up quickly over a riser.
