11/4X1X1/2 GALV MI TEE
Manufacturer Resources
Product Specs
- Dimensions Specification:
- ASME B16.3
- End Conn Size 1:
- FPT
- End Conn Size 2:
- FPT
- End Conn Size 3:
- FPT
- Finish Specification:
- ASTM A-153
- Material Specification:
- ASTM A-197
- Pressure Rating Specification:
- ASME B16.3
- Size 1:
- 1.25
- Size 2:
- 1
- Size 3:
- 0.5
- Strength:
- STD
- Thread Specification:
- ASME B1.20.1
- Ul Fm:
- Yes
- Department:
- Plumbing
- Product Group:
- Pipe Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Finish:
- Galvanized
- Product Material:
- Malleable Iron
- Product Weight:
- 0.79 lbs
ASC Engineered Solutions 311043806 – Frequently Asked Questions

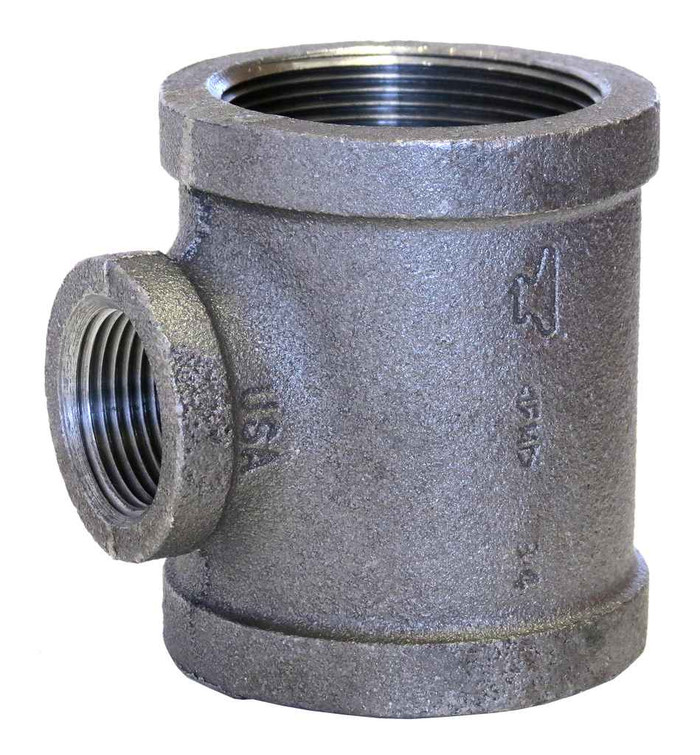

1) What are the three port sizes on the ASC Engineered Solutions 1-1/4 x 1 x 1/2 galvanized malleable iron tee?
It's a reducing tee with 1-1/4 inch, 1 inch, and 1/2 inch openings. All three ends are female pipe thread (FPT), so it threads directly onto male-threaded pipe or nipples of those sizes. Model 311043806.
2) Are the threads on this galvanized reducing tee standard NPT?
Yes. The threads are cut to ASME B1.20.1, which is the standard for NPT pipe threads, and all three ends are female. That means it mates with any standard NPT male thread, including the same-size galvanized or black steel nipples you'd already have on the truck.
3) Is this tee UL/FM approved for fire sprinkler work?
It is UL/FM listed, so it can be used on fire protection piping where an approved fitting is called for. It's a standard (STD) pressure class malleable iron fitting rated per ASME B16.3.
4) Can I use a galvanized malleable iron tee on a domestic water line, or should it be black iron?
Galvanized is the finish you want on wet service like water lines; black malleable iron is normally kept to gas and dry systems. This one is hot-dip galvanized to ASTM A-153 over malleable iron made to ASTM A-197, which is the usual combination for threaded water, air, and fire protection piping.
5) Will this reducing tee match the dimensions on my piping drawing?
Center-to-end dimensions conform to ASME B16.3, the dimensional standard for threaded malleable iron fittings, so it drops into a layout spec'd to B16.3 without changing your takeoffs.
6) How much does this malleable iron tee weigh for freight or bulk ordering?
Each fitting weighs 0.79 lbs, useful if you're pricing freight on a case quantity or checking hanger loads on a threaded run.
