Metallics JFM114 1/2-13 x 1 in...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$192.86

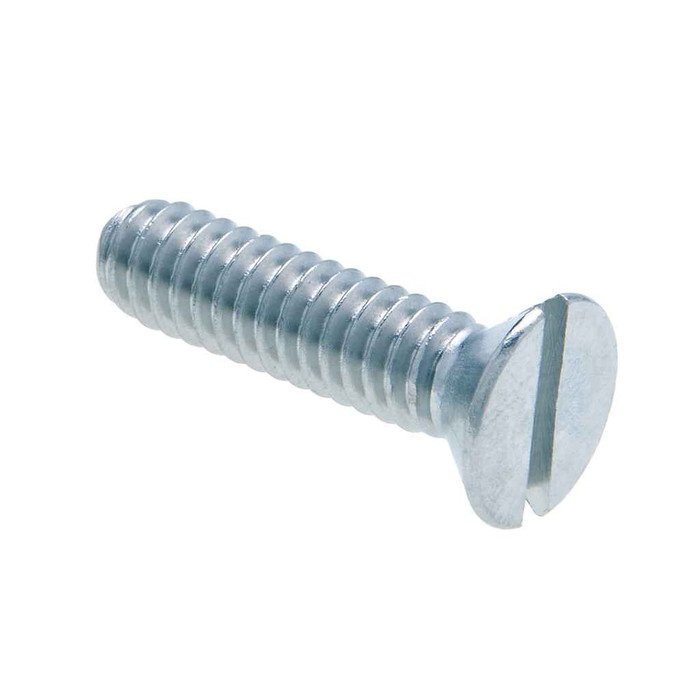

Metallics JFM114 1/2-13 x 1 in. Flat Head Slotted Machine Screws - Steel Zinc - 100qty

Metallics JFM114 1/2-13 x 1 in. Flat Head Slotted Machine Screws - Steel Zinc - Each

(No reviews yet) Write a Review

Model: JFM114
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$192.86
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
1/2-13 x 1 in. Flat Head Slotted Machine Screws - Steel Zinc - 100qty

  • Additional Notes

    • Other sizes and quantities available by request | Hardness and tensile strength standards are offered as guides only for stainless machine screws. There is currently no national standard for these performance requirements for stainless machine screws.

  • Features

    • Zinc yellow screws are popular in electronics applications.
    • Flat head with slotted Drive
    • Steel Zinc Material
    • 1/2-13 Diameter, 1" Length

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Dimensional Standard:
ASME B18.6.3-1998
Division:
Electrical H1
Drive Type:
Slotted
Fastener Head Height:
0.186 - 0.223 in.
Fastener Head Type:
Flat
Fastener Head Width:
0.765 - 0.815 in.
Fastener Length:
1
Hardness:
Rockwell B70-B100
Language Code:
EN
Material Standard:
AISI 1006 - 1022
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Flat_Head_Mach_Screw.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Product Group:
Fasteners
Product Height:
2.7 in
Product Length:
3 in
Product Weight:
5.52 lbs
Product Width:
3 in
Slot Depth:
0.065 - 0.103
Slot Width:
0.091 - 0.106
Sub Division:
Electrical-E H2
Tensile Strength:
8500 lb minimum
Thread Per Inch:
13
Thread Standard:
ANSI/ASME B1.1
Thread Type:
UNC
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Machine Screw
Type2:
Machine Screw
Series:
FM and FMP
Product Finish:
Zinc
Product Details:
Machine Screw
Product Material:
Steel Zinc

Metallics JFM114 – Frequently Asked Questions

1) Will the Metallics JFM114 machine screw thread into a 1/2-13 tapped hole or standard 1/2 inch coarse nut?
Yes. The JFM114 is a 1/2-13 UNC screw, 13 threads per inch, cut to ANSI/ASME B1.1. That is the standard coarse series for 1/2 inch diameter, so it mates with any 1/2-13 tapped hole, nut, or strut channel nut. If the hole you are threading into is 1/2-20 fine, this screw will not start.
2) Do these Metallics screws qualify for a Buy American or ARRA funded job?
No. The JFM114 is not Buy American compliant and is not ARRA compliant, with country of origin listed as multiple. On a federally funded project with domestic sourcing requirements, you will need a domestically manufactured fastener instead.
3) How many 1/2-13 x 1 in. Metallics flat head screws come in a jar?
They ship 100 to a jar, and the jar is the order minimum, so the smallest buy is 100 pieces. Jar weight is listed at 5.52 lbs. If you need a count other than 100, Metallics states other sizes and quantities are available by request.
4) Are zinc plated steel machine screws okay outdoors or in a wet location?
Zinc plated carbon steel is the finish here, which suits dry indoor use, panels, enclosures, and electronics work. It is a sacrificial plating, not stainless, so in rain, washdown, or coastal exposure it will eventually bloom white and then rust. For wet or corrosive locations, specify a stainless flat head machine screw in the same 1/2-13 x 1 in. size.
5) Is a machine screw the right choice, or do I need a bolt or sheet metal screw for mounting to a panel?
A machine screw like this 1/2-13 x 1 in. flat head is fully threaded for its length and meant to go into a pre-tapped hole or take a nut. It will not cut its own thread, so it is the wrong part for driving straight into unthreaded sheet metal, where a self tapping or sheet metal screw belongs. Pick the flat head version, as here, when the fastener has to finish flush in a countersunk hole; a pan or hex head is the choice when a raised head is acceptable and you want a better driving surface.
