1/2 45 DEG GR LT
Manufacturer Resources
Product Specs
- Number Of Batteries:
- 0
- Product Type:
- Grounding Connectors-45 degree
- Department:
- Electrical
- Product Material:
- Malleable Iron
Thomas & Betts 5242GRX – Frequently Asked Questions

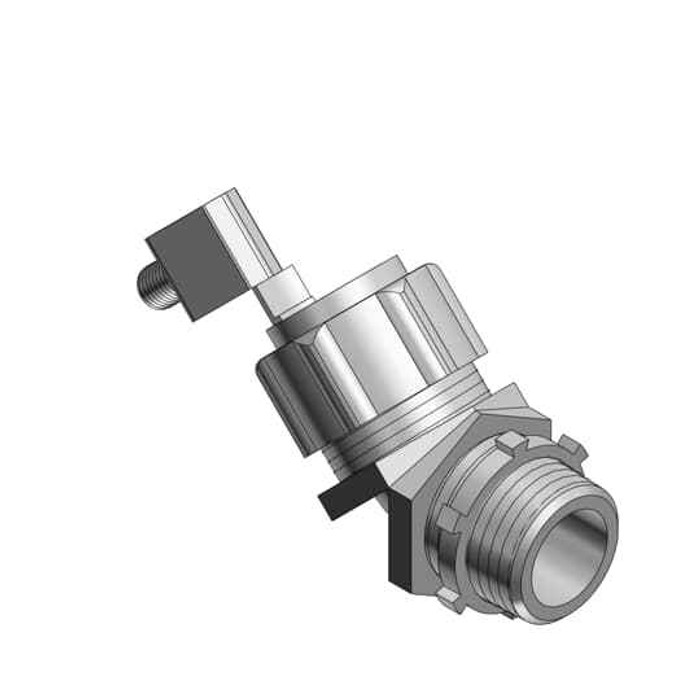

1) Does the Thomas & Betts 5242GRX have a grounding lug for bonding flexible conduit?
Yes. The 5242GRX is built as a grounding type fitting, so it carries a lug for landing a bonding conductor at the connector rather than requiring a separate bonding bushing. That is the reason to pick the GR version over a plain liquidtight 45 when the flex run needs an equipment grounding path terminated at the box.
2) What is the Thomas & Betts 5242GRX made of?
Malleable iron. That is the heavier-duty body choice compared with die cast zinc fittings, and it is what a lot of industrial and MRO specs call for on motor and machine-tool flex connections where the fitting takes mechanical abuse.
3) What is the exact part number to order for the Thomas & Betts 45 degree 1/2 inch grounding liquidtight connector?
Order it as Thomas & Betts 5242GRX. The 5242 base number is the 1/2 inch 45 degree liquidtight body, and the GR suffix identifies the grounding version.
4) Should I use a 45 degree liquidtight connector or a 90 degree one?
Use the 45 when a 90 would force the conduit into too tight a turn or aim it at the wrong plane, which is common on motor terminal boxes, pumps, and rooftop equipment where the box sits at an angle to the raceway. A 90 is the choice when the flex has to exit flat along a wall or ceiling. The 5242GRX covers the 45 degree case in 1/2 inch with a grounding lug.
How fast can I get the Thomas & Betts 5242GRX delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the
continental
U.S.
Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit,
reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the Thomas & Betts 5242GRX come with a warranty?
Absolutely. The Thomas & Betts 5242GRX is backed by a manufacturer’s warranty.
For full warranty terms, check the product documentation or Contact Us.
How do I get technical support or installation help for the Thomas & Betts 5242GRX?
You can call, text, or email our expert support team for fast answers. We’re here to help with
product
selection,
installation tips, and troubleshooting. Contact Us
Why buy the Thomas & Betts 5242GRX from ZenSupply?
ZenSupply makes it easy to get the commercial door hardware you need—fast shipping, expert support,
and
rewards on
every order.
Our team is always ready to help you choose the right product for your project.
