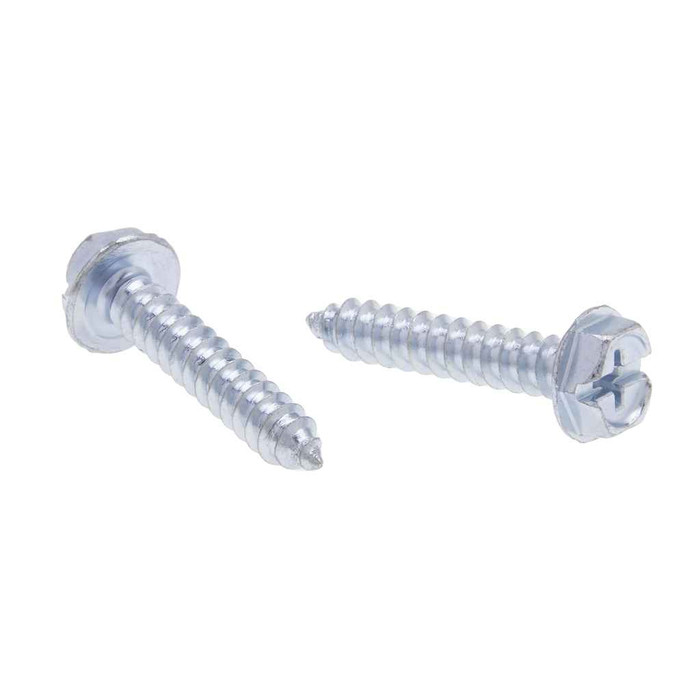

12 x 1-1/2 in. 5/16 Hex Head Phillips Sharp Point Tapping Screws - Steel Zinc - 100qty
Features
- Hex 5/16 Head with Phillips Drive
- 12 Diameter, 1-1/2" Length
- Steel Zinc Material
Additional Notes
- Other sizes and quantities available by request | Dimensions for #9 diameter are independent of ASME B18.6.4
Manufacturer Resources
Product Specs
- Minimum Purchase:
- 100 units
- Arra Compliant:
- C
- Buy American Compliant:
- C
- Country Of Origin:
- China
- Dimensional Standard:
- ASME B18.6.3-2013
- Division:
- Electrical H1
- Drive Type:
- Phillips
- Driver Size:
- #3
- Fastener Head Height:
- 0.139 - 0.155 in.
- Fastener Head Type:
- Hex
- Fastener Head Width:
- 0.305 - 0.312 in.
- Fastener Length:
- 1/1/02
- Finish:
- Zinc
- Hardness:
- RockweII C28-38
- Height:
- 3.6 in
- Language Code:
- EN
- Length:
- 3 in
- Material:
- Steel Zinc
- Material Standard:
- AISI 1016 - 1024
- Order Minimum Imperial:
- 100
- Order Minimum Uom Imperial:
- CT
- Pack Type:
- Jar
- Phillips Recess Diameter:
- 0.247
- Product Family:
- Electrical Supplies
- Product Group:
- Fasteners
- Product Height:
- 91.44 MM
- Product Length:
- 76.2 MM
- Product Series:
- JDSP
- Product Weight:
- 599 g
- Product Width:
- 76.2 MM
- Recess Penetration Gaging Depth:
- 0.127 - 0.152
- Screw Point Type:
- Gimlet Point
- Sub Division:
- Electrical-E H2
- Thread Per Inch:
- 11
- Thread Standard:
- ASME B18.6.4
- Torsional Strength:
- 83 lb-in minimum
- Type:
- Type A Tapping Screw
- Washer Od:
- 0.398 - 0.432 in.
- Washer Thickness:
- 0.022 - 0.039 IN
- Weight:
- 1.32 lbs
- Width:
- 3 in
- Department:
- Electrical
- Product Subgroup:
- Screws
- Product Type:
- Type A Tapping Screw
- Type2:
- Type A Tapping Screw
