Metallics JSTS28 12 x 1 in. Pa...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$192.86

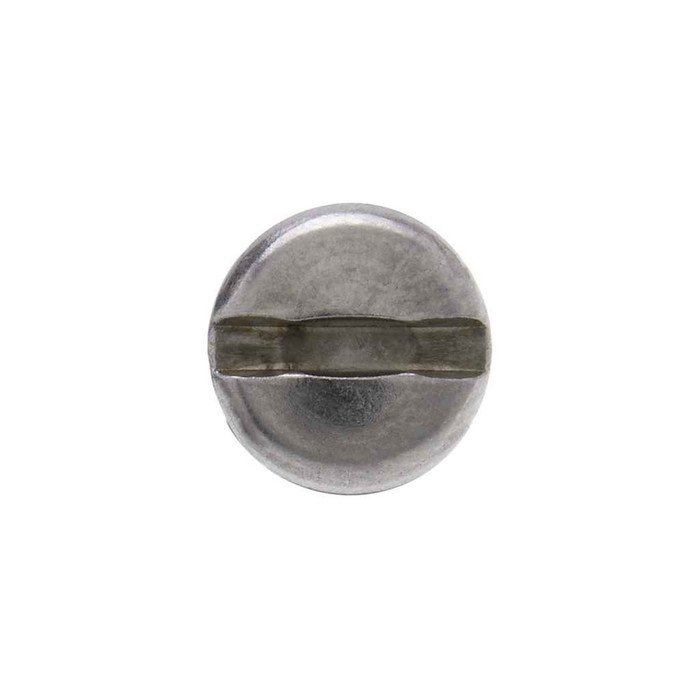

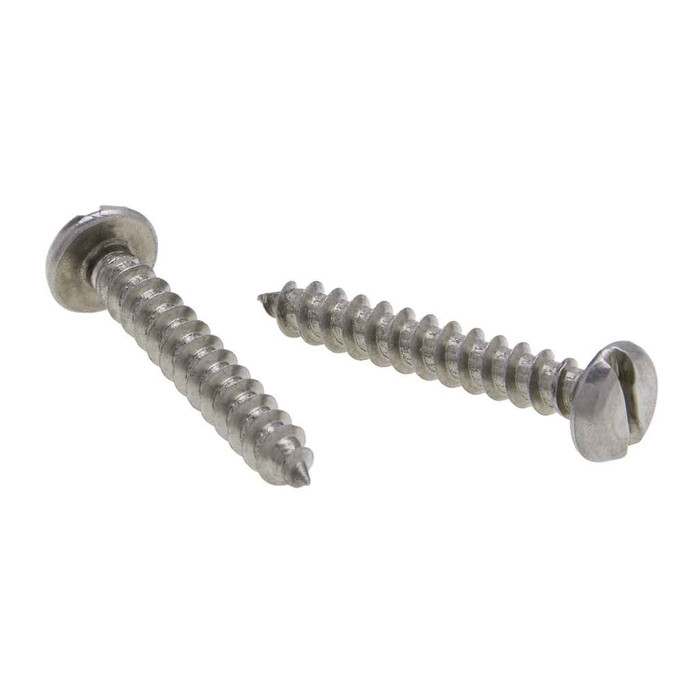

Metallics JSTS28 12 x 1 in. Pan Head Slotted Tapping Screws - 18-8 Stainless - 100qty

Metallics JSTS28 12 x 1 in. Pan Head Slotted Tapping Screws - 18-8 Stainless - Each

(No reviews yet) Write a Review

Model: JSTS28
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$192.86
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
12 x 1 in. Pan Head Slotted Tapping Screws - 18-8 Stainless - 100qty

  • Additional Notes

    • Other sizes and quantities available by request | Dimensions for #9 diameter are independent of ASME B18.6.4

  • Features

    • 18-8 Stainless Material
    • Fastening stainless steel parts to aluminum or steel can cause a type of corrosion known as a galvanic couple in some environments.
    • 12 Diameter, 1" Length
    • Pan head with Slotted Drive

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Dimensional Standard:
ASME B18.6.3-2013
Division:
Electrical H1
Drive Type:
Slotted
Fastener Head Height:
0.112 - 0.125 in.
Fastener Head Type:
Pan
Fastener Head Width:
0.407 - 0.425 in.
Fastener Length:
1
Field Application:
Electrical, Plumbing, Heating and Air Conditioning Industries
Language Code:
EN
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Pan_Slotted_Phillips_Self_Tap_SS.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Product Group:
Fasteners
Product Height:
2.7 in
Product Length:
3 in
Product Weight:
0.94 lbs
Product Width:
3 in
Screw Point Type:
Gimlet Point
Slot Depth:
0.061 - 0.077
Slot Width:
0.056 - 0.067
Sub Division:
Electrical-E H2
Thread Per Inch:
11
Thread Standard:
ASME B18.6.4
Torsional Strength:
83 lb-in minimum
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Type A Tapping Screw
Type2:
Type A Tapping Screw
Series:
JSTS
Product Details:
Type A Tapping Screw
Product Material:
18-8 Stainless

Metallics JSTS28 – Frequently Asked Questions

1) Do the Metallics JSTS28 tapping screws need a pilot hole, or will they cut their own threads in sheet metal?
The JSTS28 is a Type A tapping screw with a gimlet point, so it forms its own threads in a pre-drilled or punched hole in sheet metal. The point starts the hole but it is not a self-drilling screw, you still need a pilot. Thread count is 11 threads per inch on a #12 diameter, 1 inch long.
2) Will stainless tapping screws cause corrosion if I drive them into aluminum enclosures or steel strut?
They can. Fastening 18-8 stainless parts to aluminum or steel can set up a galvanic couple in some environments, which corrodes the softer metal at the joint. In dry interior electrical work that is usually a non issue; in damp, coastal or chemically aggressive locations, isolate the joint or match the fastener metal to the base metal.
3) Can I use these on a Buy American or ARRA funded job?
No. The JSTS28 screws are not Buy American compliant and are not ARRA compliant, with multiple countries of origin. For federally funded work carrying those clauses you need a domestically sourced fastener instead.
4) How much torque can a #12 18-8 stainless slotted pan head tapping screw take before it snaps?
Minimum torsional strength on the JSTS28 is 83 lb-in. That is the driving limit, and with a slotted drive it is easy to cam out or twist off with an impact driver. Run these with a hand screwdriver or a clutched driver set low.
5) What standards do these Metallics tapping screws follow?
Head and drive dimensions follow ASME B18.6.3-2013, and the thread form follows ASME B18.6.4. Note that Metallics states dimensions for #9 diameter are independent of ASME B18.6.4, so that caveat applies to other diameters in the JSTS series, not to this #12.
6) How are these sold, loose screws or a jar?
JSTS28 ships in a jar with a 100 piece minimum. The jar itself measures 3 x 2.7 x 3 inches and weighs 0.94 lbs, which is worth knowing if you are stocking a van drawer or a shop bin.
