Metallics JSTSP35 12 x 3 in. P...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$192.86

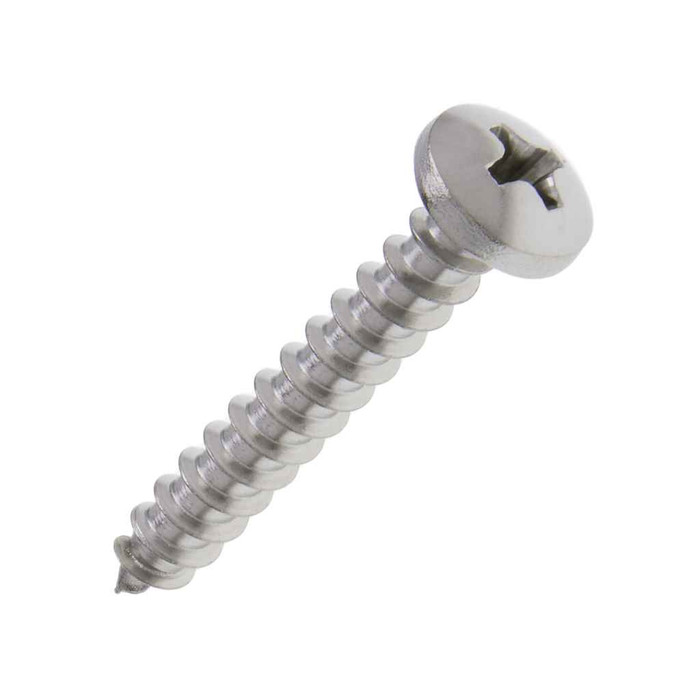

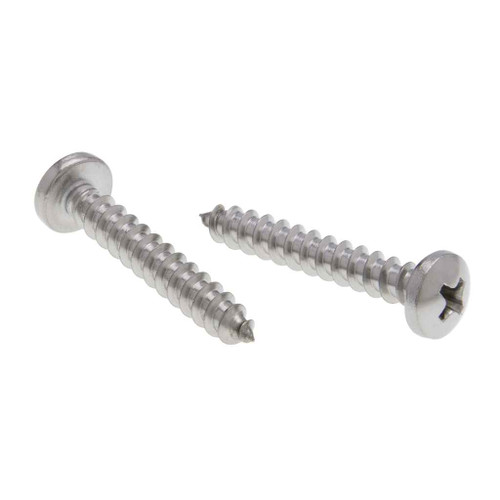

Metallics JSTSP35 12 x 3 in. Pan Head Phillips Tapping Screws - 18-8 Stainless - 100qty

Metallics JSTSP35 12 x 3 in. Pan Head Phillips Tapping Screws - 18-8 Stainless - Each

(No reviews yet) Write a Review

Model: JSTSP35
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$192.86
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
12 x 3 in. Pan Head Phillips Tapping Screws - 18-8 Stainless - 100qty

  • Features

    • Fastening stainless steel parts to aluminum or steel can cause a type of corrosion known as a galvanic couple in some environments.
    • Pan head with Slotted Drive
    • 12 Diameter, 3" Length
    • 18-8 Stainless Material

  • Additional Notes

    • Other sizes and quantities available by request | Dimensions for #9 diameter are independent of ASME B18.6.4

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Dimensional Standard:
ASME B18.6.3-2013
Division:
Electrical H1
Drive Type:
Phillips
Driver Size:
#3
Fastener Head Height:
0.139 - 0.151 in.
Fastener Head Type:
Pan
Fastener Head Width:
0.407 - 0.425 in.
Fastener Length:
3
Field Application:
Electrical, Plumbing, Heating and Air Conditioning Industries
Language Code:
EN
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Pan_Slotted_Phillips_Self_Tap_SS.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Phillips Recess Depth:
0.141
Phillips Recess Diameter:
0.246 - 0.259
Phillips Recess Width:
0.034
Product Group:
Fasteners
Product Height:
5.75 in
Product Length:
3.5 in
Product Weight:
2.51 lbs
Product Width:
3.5 in
Screw Point Type:
Gimlet Point
Sub Division:
Electrical-E H2
Thread Per Inch:
11
Thread Standard:
ASME B18.6.4
Torsional Strength:
83 lb-in minimum
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Type A Tapping Screw
Type2:
Type A Tapping Screw
Series:
JSTSP
Product Details:
Type A Tapping Screw
Product Material:
18-8 Stainless

Metallics JSTSP35 – Frequently Asked Questions

1) Do Type A tapping screws like this need a pilot hole, or do they drill their own?
They need a pilot hole. The JSTSP35 is a Type A tapping screw with a gimlet point, so it cuts its own thread in a pre-drilled or punched hole in sheet metal, but it is not a self-drilling screw with a drill tip. Thread pitch is 11 threads per inch to ASME B18.6.4.
2) Will stainless tapping screws cause corrosion if I fasten into aluminum or steel?
They can. Running 18-8 stainless fasteners into aluminum or plain steel sets up a galvanic couple in some environments, and the lesser metal corrodes around the fastener. Outdoors or in damp or coastal locations, isolate the joint or pick a fastener that matches the base metal. Dry indoor work is normally fine.
3) Are these screws Buy American or ARRA compliant for a government job?
No. The JSTSP35 is not Buy American compliant and is not ARRA compliant; country of origin is listed as multiple. If your contract carries a domestic sourcing clause, these will not satisfy it.
4) What size driver bit do I need for the Metallics JSTSP35 tapping screws?
A #3 Phillips driver. The recess on the JSTSP35 is 0.246 to 0.259 inch in diameter and 0.141 inch deep, which is why a #2 bit cams out on these. Bring a #3 if you are running a jar of 100 with an impact or screw gun.
5) How far will a 12 x 3 in. tapping screw sit above the surface, and how wide is the head?
The pan head measures 0.407 to 0.425 inch across and stands 0.139 to 0.151 inch above the work, to ASME B18.6.3-2013. A pan head is not countersunk, so if you need the fastener flush you want a flat head instead. Length under the head is 3 inches.
6) How much torque can I put on a #12 stainless tapping screw before it snaps?
Minimum torsional strength on these is 83 lb-in. Stainless tapping screws twist off more readily than hardened carbon steel, so set the clutch on your driver rather than running it wide open, especially into heavier gauge metal.
7) How are the Metallics JSTSP35 screws packaged and what is the minimum order?
They ship in a jar of 100, which is the minimum purchase quantity. Jar weight is 2.51 lbs.
8) What are #12 x 3 in. stainless pan head tapping screws typically used for?
They are catalogued for electrical, plumbing, and HVAC work: hanging boxes, straps, clamps, and sheet metal brackets where the 3 inch length lets you reach through insulation, furring, or stacked material into the base. The 18-8 stainless body suits damp or washdown locations where plated steel would rust out.
