Metallics JTSF33 12 x 3/4 in. ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.41
$0.41

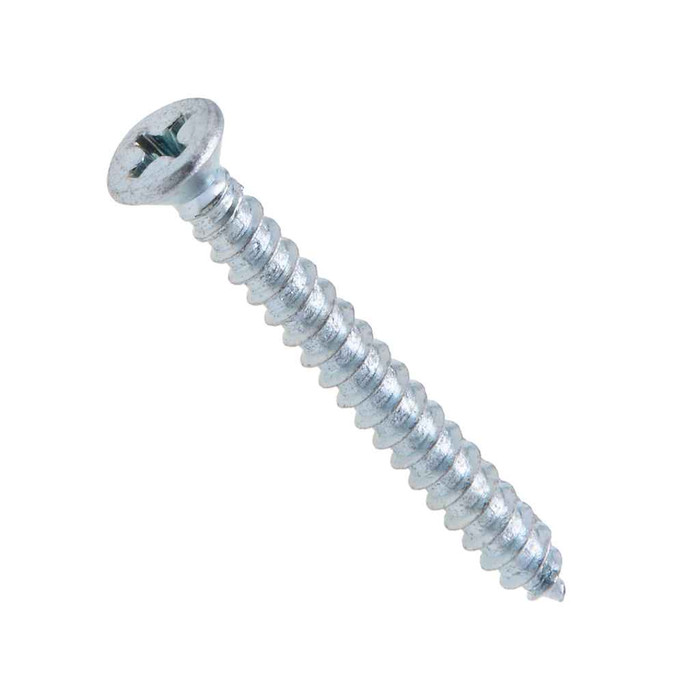

Metallics JTSF33 12 x 3/4 in. Flat Head Phillips Tapping Screws - Steel Zinc - 100qty

Metallics JTSF33 12 x 3/4 in. Flat Head Phillips Tapping Screws - Steel Zinc - Each

(No reviews yet) Write a Review

Model: JTSF33
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.41
$0.41
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
12 x 3/4 in. Flat Head Phillips Tapping Screws - Steel Zinc - 100qty

  • Additional Notes

    • Other sizes and quantities available by request | Dimensions for #9 diameter are independent of ASME B18.6.4

  • Features

    • Flat head with Phillips Drive
    • 12 Diameter, 3/4" Length
    • Steel Zinc Material

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Country Of Origin:
MUL
Dimensional Standard:
ASME B18.6.4-1998
Division:
Electrical H1
Drive Type:
Phillips
Driver Size:
#3
Fastener Head Height:
0.112 - 0.132 in.
Fastener Head Type:
Flat
Fastener Head Width:
0.38 - 0.412 in.
Fastener Length:
4-Mar
Field Application:
Electrical, Plumbing, Heating and Air Conditioning Industries
Gaging Diameter:
0.362
Hardness:
Rockwell C28-38
Language Code:
EN
Material Standard:
AISI 1016 - 1024
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Flat_Phillips_Self_Tap.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Phillips Recess Depth:
0.144
Phillips Recess Diameter:
0.262
Phillips Recess Width:
0.035
Product Family:
Electrical Supplies
Product Group:
Fasteners
Product Height:
2.15 in
Product Length:
3 in
Product Weight:
0.68 lbs
Product Width:
3 in
Protrusion Gaging Diameter:
0.027 - 0.045 Above
Screw Point Type:
Gimlet Point
Sub Division:
Electrical-E H2
Thread Per Inch:
11
Thread Standard:
ASME B18.6.4
Torsional Strength:
83 lb-in minimum
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Type A Tapping Screw
Type2:
Type A Tapping Screw
Series:
JTSF
Product Finish:
Zinc
Product Details:
Type A Tapping Screw
Product Material:
Steel Zinc

Metallics JTSF33 – Frequently Asked Questions

1) What driver bit do I need for the Metallics JTSF33 #12 tapping screws?
A #3 Phillips bit. The JTSF33 uses a Phillips drive with a #3 driver size, and the recess measures 0.262 inch diameter by 0.144 inch deep with a 0.035 inch slot width. Running a #2 bit in a #3 recess is how you cam out and chew the head, so stock the right bit before you start the run.
2) Do I have to drill a pilot hole for a Type A tapping screw, or does it self-start?
The JTSF33 is a Type A tapping screw with a gimlet point, so it forms its own thread in a pilot hole in sheet metal. The gimlet point starts easily and cuts through thin gauge stock, but it is a thread-forming screw, not a self-drilling point with a drill flute, so you still pre-punch or pre-drill sheet heavier than light gauge. Thread pitch is 11 threads per inch.
3) Are these screws hard enough to tap their own thread in steel without snapping?
They are case hardened to Rockwell C28-38 and carry a minimum torsional strength of 83 lb-in, which is what lets a Type A screw form thread rather than shear off in the hole. Base material is AISI 1016-1024 carbon steel. Back the driver off once the head seats; over-torquing past that figure is what breaks them.
4) Will these screws satisfy a Buy American or ARRA requirement on a federal job?
No. The JTSF33 is not Buy American compliant and is not ARRA compliant, and country of origin is listed as multiple. If your contract carries a domestic sourcing clause, this fastener will not clear it.
5) How many screws come in a jar of Metallics JTSF33?
They ship 100 to a jar, and 100 is the order minimum. If you need a different count or a different length in the JTSF series, other sizes and quantities are available by request.
6) Can I use these tapping screws outdoors or in a damp location?
The JTSF33 is carbon steel with a zinc plating, which is a light corrosion coating for dry interior work, panels, boxes, enclosures and HVAC duct. It is not a marine or sustained wet location finish. For exterior or washdown areas, specify stainless or a hot dip galvanized fastener instead.
7) Do these Metallics screws meet a recognized dimensional standard for spec work?
Yes. The JTSF33 is built to ASME B18.6.4-1998 for dimensions and follows ASME B18.6.4 for thread form, with a gaging diameter of 0.362 and a protrusion gaging diameter of 0.027 to 0.045 above. One caveat if you are cross-shopping the series: dimensions for the #9 diameter are independent of ASME B18.6.4. The #12 covered here is to standard.
8) What trades actually use a #12 x 3/4 in. Type A tapping screw?
Metallics lists the JTSF series for the electrical, plumbing, heating and air conditioning industries. In practice that means mounting straps and clamps to sheet metal, fastening enclosure and panel hardware, duct work, and securing brackets where you are threading into thin stock rather than into a tapped hole.
