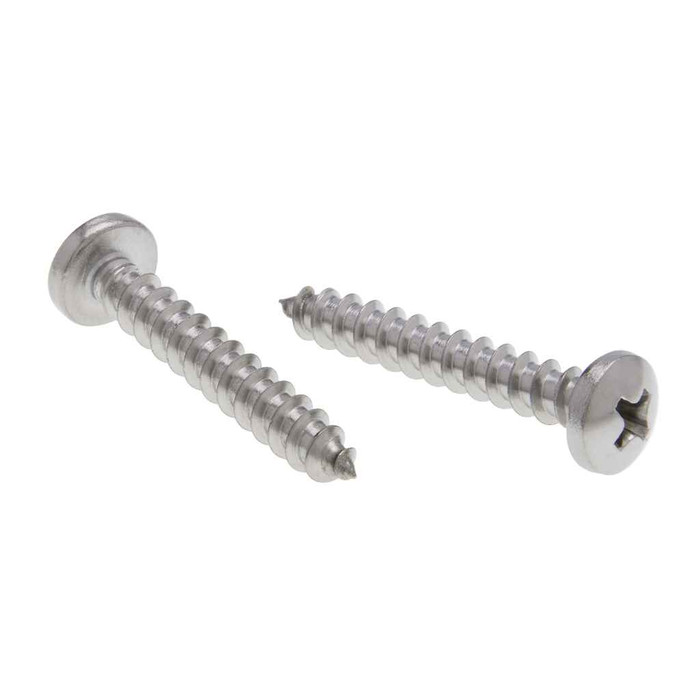

Metallics JSTSP27 12 x 3/4 in. Pan Head Phillips Tapping Screws - 18-8 Stainless - 100qty

Metallics #12 x 3/4 in. Pan Head Phillips Type A Tapping Screws - 18-8 Stainless Steel

(No reviews yet) Write a Review

Model: JSTSP27
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$51.00
$1.76
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Metallics #12 x 3/4 in. Pan Head Phillips Type A Tapping Screws - 18-8 Stainless Steel

Professional Grade Fastening Solutions for Electrical Applications

Metallics delivers reliable fastening performance with these #12 x 3/4 in. pan head Phillips tapping screws manufactured from 18-8 stainless steel. These Type A tapping screws feature gimlet point design and meet ASME B18.6.3-2013 dimensional standards, providing professional-grade fastening solutions for electrical, plumbing, heating and air conditioning industries with corrosion-resistant stainless steel construction.

Professional Features & Benefits

  • 18-8 Stainless Steel Construction: Provides excellent corrosion resistance and durability for long-lasting performance in demanding environments.
  • #12 Diameter x 3/4" Length: Optimal sizing for secure fastening applications with precise dimensional control per ASME standards.
  • Pan Head Phillips Drive: Offers reliable engagement with #3 driver size and consistent torque application for professional installation.
  • Type A Tapping Design: Features gimlet point for efficient self-tapping performance in various materials without pre-drilling.
  • 83 lb-in Minimum Torsional Strength: Ensures reliable holding power and resistance to loosening under operational stress.
  • ASME B18.6.3-2013 Compliance: Meets dimensional standards for consistent quality and interchangeability in professional applications.

Technical Specifications

  • Arra Compliant: N
  • Buy American Compliant: No
  • Country Of Origin: MUL
  • Department: Electrical
  • Dimensional Standard: ASME B18.6.3-2013
  • Division: Electrical H1
  • Drive Type: Phillips
  • Driver Size: #3
  • Fastener Head Height: 0.139 - 0.151 in.
  • Fastener Head Type: Pan
  • Fastener Head Width: 0.407 - 0.425 in.
  • Fastener Length: 4-Mar
  • Field Application: Electrical, Plumbing, Heating and Air Conditioning Industries
  • Height: 2.15 in
  • Language Code: EN
  • Material: 18-8 Stainless
  • Neurspe: https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Pan_Slotted_Phillips_Self_Tap_SS.pdf
  • Order Minimum Imperial: 100
  • Order Minimum Uom Imperial: JR
  • Pack Type: Jar
  • Phillips Recess Depth: 0.141
  • Phillips Recess Diameter: 0.246 - 0.259
  • Phillips Recess Width: 0.034
  • Product Details: Type A Tapping Screw
  • Product Family: Electrical Supplies
  • Product Group: Fasteners
  • Product Height: 54.61 MM
  • Product Length: 3 in
  • Product Subgroup: Screws
  • Product Type: Type A Tapping Screw
  • Product Weight: 399 g
  • Product Width: 76.2 MM
  • Screw Point Type: Gimlet Point
  • Series: JSTSP
  • Sub Division: Electrical-E H2
  • Thread Per Inch: 11
  • Thread Standard: ASME B18.6.4
  • Torsional Strength: 83 lb-in minimum
  • Type2: Type A Tapping Screw
  • Weight: 0.88 lbs
  • Width: 3 in

Professional Applications

  • Electrical Panel and Enclosure Assembly
  • HVAC Equipment Installation
  • Plumbing System Components
  • Industrial Equipment Mounting
  • Commercial Building Systems
  • Maintenance and Repair Operations

Why Choose Metallics Quality?

Metallics fasteners deliver consistent performance with precision manufacturing to ASME dimensional standards and reliable 18-8 stainless steel construction. The gimlet point design and 83 lb-in minimum torsional strength ensure dependable fastening solutions for professional electrical, plumbing, and HVAC applications where corrosion resistance and holding power are essential.

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Dimensional Standard:
ASME B18.6.3-2013
Division:
Electrical H1
Drive Type:
Phillips
Driver Size:
#3
Fastener Head Height:
0.139 - 0.151 in.
Fastener Head Type:
Pan
Fastener Head Width:
0.407 - 0.425 in.
Fastener Length:
4-Mar
Field Application:
Electrical, Plumbing, Heating and Air Conditioning Industries
Language Code:
EN
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Pan_Slotted_Phillips_Self_Tap_SS.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Phillips Recess Depth:
0.141
Phillips Recess Diameter:
0.246 - 0.259
Phillips Recess Width:
0.034
Product Group:
Fasteners
Product Height:
2.15 in
Product Length:
3 in
Product Weight:
0.88 lbs
Product Width:
3 in
Screw Point Type:
Gimlet Point
Sub Division:
Electrical-E H2
Thread Per Inch:
11
Thread Standard:
ASME B18.6.4
Torsional Strength:
83 lb-in minimum
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Type A Tapping Screw
Type2:
Type A Tapping Screw
Series:
JSTSP
Product Details:
Type A Tapping Screw
Product Material:
18-8 Stainless

Metallics JSTSP27 – Frequently Asked Questions

1) Do the Metallics JSTSP27 #12 tapping screws need a pilot hole, or will they cut their own thread in sheet metal?
The JSTSP27 is a Type A tapping screw with a gimlet point, so it starts and forms its own thread in thin sheet material like panel enclosures and duct without pre-drilling. Thread pitch is 11 threads per inch to ASME B18.6.4. In heavier gauge stock or into plastic housings a pilot hole still gives you better control of the start and keeps you under the 83 lb-in minimum torsional rating.
2) Will #12 pan head screws hold up outdoors or in a damp mechanical room?
Yes. These #12 x 3/4 in. pan head screws are 18-8 stainless, which is the austenitic grade used where plated carbon steel would rust out, so wet mechanical rooms, exterior enclosures and coastal-adjacent jobs are fair use. Keep in mind stainless tapping screws run softer than case-hardened carbon steel, so drive them at lower speed and respect the 83 lb-in torsional minimum to avoid snapping heads.
3) Can I use these on a federally funded project with Buy American requirements?
No. The Metallics JSTSP27 screws are listed as not Buy American compliant and not ARRA compliant, with multiple countries of origin. If your contract carries a domestic-sourcing clause, these won't satisfy it and you'll need a domestically produced stainless tapping screw instead.
4) What driver bit do I need for the Metallics JSTSP27 Phillips tapping screws?
A #3 Phillips bit. The recess is 0.246 to 0.259 inch in diameter, 0.141 inch deep, with a 0.034 inch recess width, which is why a #2 bit cams out and chews the recess on a #12 screw. Load a #3 in the impact or screwgun before you start a panel of these.
5) Will these #12 screws interchange with the pan head tapping screws already in my panel stock?
Dimensionally, yes, as long as what you have is also a #12 pan head Type A. Head and recess dimensions are built to ASME B18.6.3-2013 and the thread to ASME B18.6.4, so the screws are interchangeable with any other screw made to those same standards. Where they will not interchange is thread form: a Type A at 11 TPI is a coarse sheet-metal thread and will not chase the finer thread a Type AB or Type B screw cut in an existing hole.
6) How are the Metallics JSTSP27 screws packaged and what is the minimum order?
They ship in a jar, with an order minimum of 100 pieces (one jar). Jar weight is listed at 0.88 lbs. For MRO stockrooms that's a sensible bin quantity to standardize on for enclosure and HVAC work rather than buying loose.
