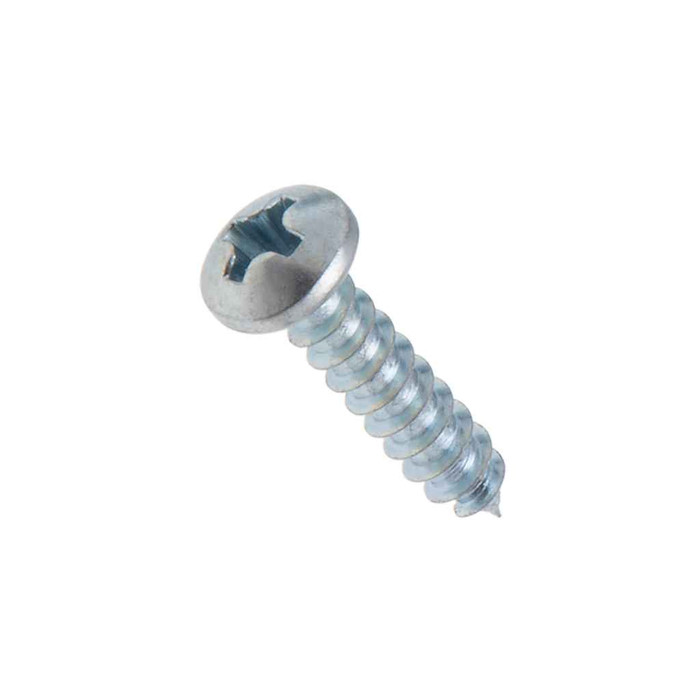

Metallics JTSP86 12 x 4 in. Pan Head Phillips Sharp Point Tapping Screws - Steel Zinc - 100qty

Metallics JTSP86 12 x 4 in. Pan Head Phillips Sharp Point Tapping Screws - Steel Zinc - Each

(No reviews yet) Write a Review

Model: JTSP86
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.61
$0.61
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
12 x 4 in. Pan Head Phillips Sharp Point Tapping Screws - Steel Zinc - 100qty

  • Additional Notes

    • Other sizes and quantities available by request | Dimensions for #9 diameter are independent of ASME B18.6.4

  • Features

    • Steel Zinc Material
    • Pan head with Phillips Drive
    • 12 Diameter, 4" Length

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
C
Buy American Compliant:
C
Dimensional Standard:
ASME B18.6.3-2013
Division:
Electrical H1
Drive Type:
Phillips
Driver Size:
#3
Fastener Head Height:
0.139 - 0.151 in.
Fastener Head Type:
Pan
Fastener Head Width:
0.407 - 0.425 in.
Fastener Length:
4
Hardness:
Rockwell C28 - 38
Language Code:
EN
Material Standard:
AISI 1016 - 1024
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Pan_Slot-Phil-Combo_Self_Tap.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
CT
Pack Type:
Jar
Phillips Recess Depth:
0.141
Phillips Recess Diameter:
0.246 - 0.259
Phillips Recess Width:
0.034
Product Group:
Fasteners
Product Height:
7.25 in
Product Length:
4.5 in
Product Weight:
3.01 lbs
Product Width:
4.5 in
Screw Point Type:
Gimlet Point
Sub Division:
Electrical-E H2
Thread Per Inch:
11
Thread Standard:
ASME B18.6.4
Torsional Strength:
83 lb-in minimum
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Type A Tapping Screw
Type2:
Type A Tapping Screw
Series:
JTSP
Product Finish:
Zinc
Product Details:
Type A Tapping Screw
Product Material:
Steel Zinc

Metallics JTSP86 – Frequently Asked Questions

1) Will a #12 x 4 in. Type A tapping screw work in sheet metal, or do I need a self-drilling screw?
The Metallics JTSP86 is a Type A tapping screw with a gimlet (sharp) point, so it needs a pilot hole in sheet metal, it will not drill its own. The sharp point does let it start in soft materials like wood or fiberboard without a pilot. At 11 threads per inch the thread is coarse, which suits thin gauge metal, wood, and plastic rather than thick steel. If you need to go through structural steel without pre-drilling, you want a self-drilling screw instead.
2) Can I use Metallics zinc plated tapping screws outdoors or in a wet location?
Zinc plated carbon steel is a dry, indoor-grade finish. It handles incidental moisture and humidity, but in direct weather, masonry contact, or a corrosive or coastal environment the plating gives up and the screw rusts. For those openings specify stainless.
3) How wide is the pan head on a #12 tapping screw, and will it pull through a slotted strut or oversized hole?
The head measures 0.407 to 0.425 in. across with a height of 0.139 to 0.151 in. That bears on the surface without a washer on a standard clearance hole, but it is not wide enough to span the slot in strut channel or an oversized knockout, so add a washer there.
4) Do Metallics JTSP86 screws meet a dimensional standard I can put on a submittal?
Head dimensions are built to ASME B18.6.3-2013 and the thread to ASME B18.6.4, which is what a spec reviewer looks for on a tapping screw submittal. The screws are flagged ARRA compliant and Buy American compliant in our records, with country of origin China.
5) How does the JTSP86 come packaged and what is the minimum I can buy?
Sold in a jar of 100, which is the order minimum, at 3.01 lbs for the container. The jar packaging is the practical difference from a loose bin count, it stays sorted on a service truck.
