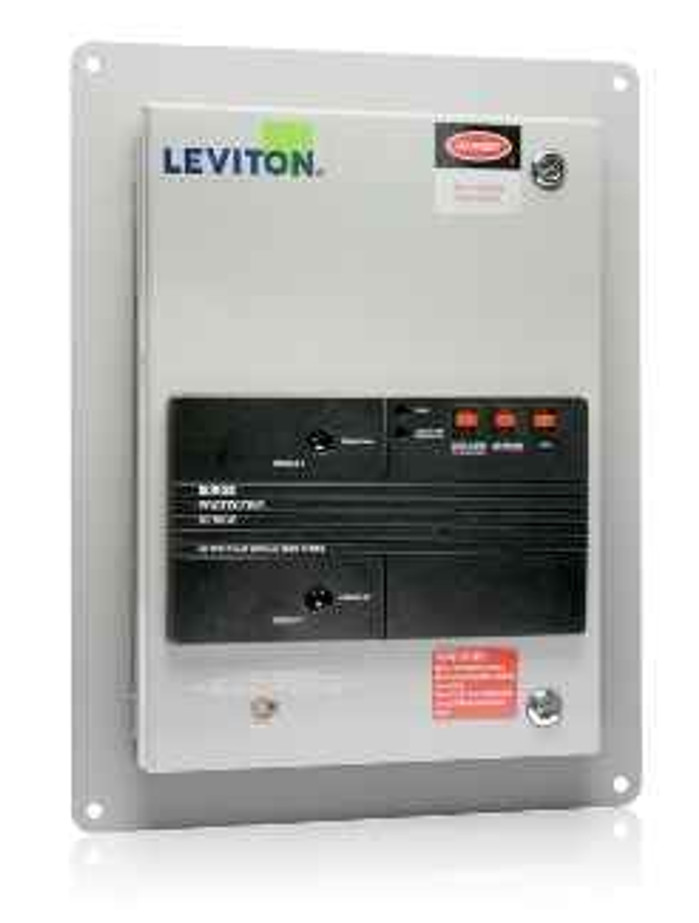

120 VAC Single Phase, Surge Panel with Replaceable Surge Modules: 2120 (1) & 8120-GN (1), NEMA 12 Enclosure, UL 1449 3rd Edition Compliant
Manufacturer Resources
Product Specs
- Ansi Ieee Category A B C:
- C-62.41 & 62.45
- Connection Type:
- Parallel-hardwired, feed-through dual wire terminal block: Accepts up to #3 AWG wire
- Maximum Surge Current Per Mode Per Phase :
- 100kA (200kA)
- Noise Rejection:
- -20 to -40 dB at 5kHz-10MHz
- Nominal Discharge Current Rating:
- 20kA
- Operating Temperature:
- -20⁰C to 40⁰C
- Protection Mode:
- 2 Mode
- Recommended Circuit Breaker Rating:
- 30A, 120V
- Relative Humidity:
- 5% to 95% non-condensing
- Remote Monitoring:
- Dry Contact Leads-N.O./N.C. Form C Rated at 7Amps @ 240VAC or 30 VDC
- Replaceable Modules:
- Yes
- Short Circuit Current Rating:
- 100kA
- Storage Temperature:
- -4°F to 185°F (-20°C to 85°C)
- Surge Counter:
- No
- Surge Technology:
- 40mm MOV Design
- Ul1449 3rd Edition:
- CSA Certified and UL Listed Type 2
- Voltage Configuration:
- 120 V, Single Phase
- Product Group:
- Surge Protection
- Department:
- Electrical
- Product Subgroup:
- Unassigned Modules
- Diagnostics:
- Real Time Protection status LEDs & Audible Alarm
- Enclosure:
- Type 12
- Flammability:
- Rated V-2 per UL 94
- Frequency:
- 50/60Hz
- Mcov:
- L-N:150V, L-G:300V, N-G:150V
- Vpr:
- L-N:1000V, L-G:1500V, N-G:700V
