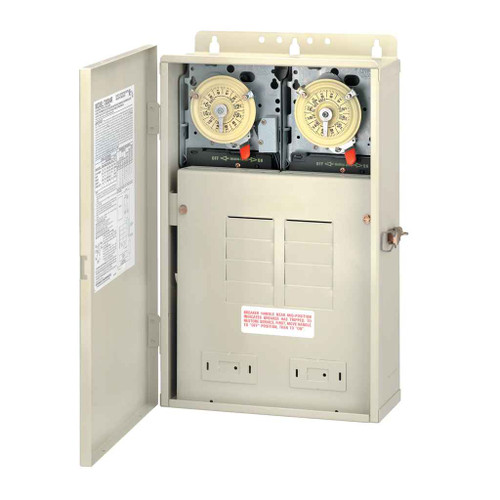

Intermatic 125A Electrical Load Center with T104M Mechanism - 8-Breaker Space Distribution Panel

Intermatic 125A Electrical Load Center with T104M Mechanism - 8-Breaker Space Distribution Panel

Professional All-in-One Load Center for Complete Control Systems

The Intermatic 125A Load Center with T104M Mechanism delivers professional-grade electrical distribution and control in a compact 8-breaker space configuration. This all-in-one electrical load center eliminates the need for additional service panels while providing 125A service capacity with 208-277 VAC input voltage rating. The beige enclosure measures 20.875" x 12.875" x 4.75" and features four knockouts for switches or GFCIs, making it fully compatible with pool/spa installations and various control applications.

Professional Features & Benefits

• 125A Service Rating: Provides robust electrical capacity for demanding residential and commercial applications with reliable power distribution.
• 208-277 VAC Input Range: Accommodates various voltage configurations for flexible installation in different electrical systems.
• 8-Breaker Space Configuration: Offers ample circuit protection capacity while maintaining compact footprint for space-efficient installations.
• T104M Mechanism Included: Pre-installed mechanism reduces installation costs and provides immediate operational capability.
• Four Knockout Design: Dead front panel accommodates switches or GFCIs for enhanced control and safety functionality.
• Universal Mechanism Compatibility: Accepts PF1000M Series, P1403ME, P1353ME, P4043ME, P4243ME, T100M Series, and RC2000M Series mechanisms for versatile applications.
• Pool/Spa Compliant: Fully compatible with all electrical requirements for pool and spa installations ensuring code compliance.

Technical Specifications

• Applications: Distribution/Control Panel;Motor Control;Pump Control
• Country Of Origin: Mexico
• Depth: 4.75 in
• Input Voltage Rating Range S : 208-277 VAC, 60 Hz
• Marketing Description: Can be used as a Load Center only, or add mechanisms or wiring devices for complete control systems
• Product Color: Beige
• Product Height: 20.875 in
• Product Length: NA NA
• Product Weight: NA lbs
• Product Width: 12.875 in
• Warranty Period: 1-Year limited

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Residential electrical distribution and circuit protection systems
• Commercial facility power distribution panels
• Pool and spa electrical control installations
• Motor control and pump control applications
• Multi-unit property electrical distribution
• Professional office and retail electrical systems
• Light industrial distribution and control panels

Why Choose Intermatic Quality?

Intermatic delivers proven reliability with this 125A Load Center backed by a 1-year limited warranty. The beige enclosure construction and universal mechanism compatibility ensure long-term durability and operational flexibility for professional electrical installations across residential, commercial, and specialized applications.
