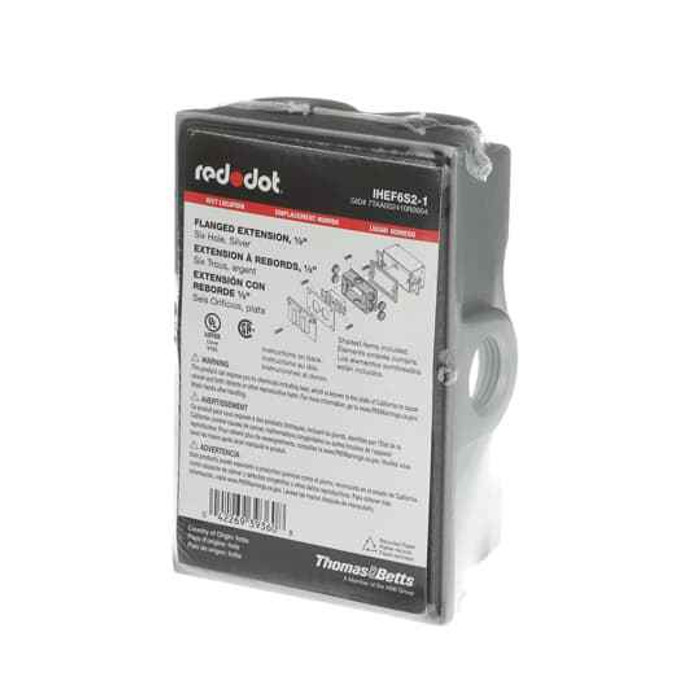

Red Dot 1/2 Inch 6-Hole Flange Extension
Professional Aluminum Die Cast Electrical Box Extension
The Red Dot 1/2 Inch 6-Hole Flange Extension delivers reliable electrical box extension capabilities with durable aluminum die cast construction. This professional-grade extension protects wiring devices, switches, electronic components and terminal blocks in dry, damp and wet locations, making it ideal for versatile electrical applications requiring secure mounting and corrosion resistance.
Professional Features & Benefits
- 1/2 Inch Extension Depth: Provides precise spacing for proper component clearance and installation flexibility in various mounting scenarios.
- 6-Hole Flange Design: Ensures secure mounting with multiple attachment points for enhanced stability and professional installation.
- Aluminum Die Cast Construction: Delivers exceptional durability and long-term performance in demanding electrical environments.
- Silver Finish: Provides professional appearance and additional corrosion protection for extended service life.
- UL Listed (e28688): Meets rigorous safety standards for reliable performance in commercial and residential applications.
- Multi-Location Protection: Suitable for dry, damp and wet locations, offering versatile installation options across various environments.
- Corrosion Resistant Materials: Features Alloy A380 aluminum with certified zinc alloy and stainless steel springs for increased corrosion resistance.
Technical Specifications
- Application: Dry-tite boxes and covers protect wiring devices, switches, electronic components and terminal blocks in dry, damp and wet locations
- Color: Silver
- Country Of Origin: India (IN)
- Department: Electrical
- Material: Aluminum Die Cast
- Product Group: Electrical Boxes
- Product Subgroup: Outlet Boxes
- Product Type: Device Boxes, Covers & Accessories
- Product type2: Electrical box extension
- Selling Unit Of Measure: each
- Special Functions: Alloy A380 aluminum, certified zinc alloy and stainless steel springs provide increased corrosion resistance
- Standards: UL e28688
Professional Applications
- Commercial Electrical Installations
- Residential Wiring Projects
- Industrial Control Panels
- Outdoor Electrical Enclosures
- Equipment Terminal Blocks
- Switch and Device Protection
- Electronic Component Housing
Why Choose Red Dot Quality?
Red Dot electrical box extensions provide professional-grade reliability with UL listed safety certification and corrosion-resistant aluminum die cast construction. The specialized alloy materials and stainless steel components ensure long-term durability in challenging electrical environments, delivering trusted performance for critical wiring protection applications.
Manufacturer Resources
Product Specs
- Application:
- Dry-tite boxes and covers protect wiring devices, switches, electronic components and terminal blocks in dry, damp and wet locations
- Product Group:
- Electrical Boxes
- Product Type:
- Device Boxes, Covers & Accessories
- Product type2:
- Electrical box extension
- Selling Unit Of Measure:
- each
- Special Functions:
- Alloy A380 aluminum, certified zinc alloy and stainless steel springs provide increased corrosion resistance
- Standards:
- UL e28688
- Department:
- Electrical
- Product Subgroup:
- Outlet Boxes
- Product Color:
- Silver
- Product Material:
- Aluminum Die Cast
Red Dot IHEF6S2-1 – Frequently Asked Questions
1) What does a Red Dot 1/2 inch 6-hole flange extension actually do on an outlet box?
It adds 1/2 inch of depth to an existing box so a device, switch, terminal block or electronic component has clearance behind the cover. The Red Dot IHEF6S2-1 bolts on through a 6-hole flange, giving multiple fastening points for a solid, square seat on the box face. It is an extension ring, not a box or a cover, so you reuse your existing box and cover with it.
2) Can this Red Dot extension be used outdoors or in a wet location?
Yes. The IHEF6S2-1 is part of the Dry-tite line, rated for use in dry, damp and wet locations, so it is suitable for outdoor enclosures as well as interior work. It is UL listed under e28688.
3) Will an aluminum box extension corrode if I mount it on an exterior wall?
The casting is Alloy A380 aluminum, and the hardware is certified zinc alloy with stainless steel springs, specifically for added corrosion resistance. The silver finish adds another layer of protection. For coastal or chemically aggressive sites, standard practice is still to keep dissimilar-metal contact to a minimum at the fasteners.
4) Do I get the gasket, cover and screws with the Red Dot IHEF6S2-1, or just the extension?
The IHEF6S2-1 is sold each, and what you are buying is the 1/2 inch 6-hole flange extension itself. Plan on supplying the box, the cover and any gasket the opening calls for separately as part of the assembly.
5) I need more than 1/2 inch of depth behind a device. Is this the right part?
No. This one adds 1/2 inch only. If a deep device, a wire nut bundle or a timer body needs more room, go to a deeper extension ring or a deeper box rather than stacking. The 1/2 inch size is for small clearance corrections, not for gaining box volume.
6) Is this the same thing as a plaster ring or mud ring?
No. A plaster ring brings a recessed box flush with finished wall surface. The Red Dot 1/2 inch flange extension is a surface extension for die cast boxes and covers used in dry, damp and wet locations, mounting through a 6-hole flange onto the box face. Different job, different hardware.
7) Which Red Dot part number should I spec for a 1/2 inch 6-hole flange extension?
Order it by model IHEF6S2-1, Red Dot brand, aluminum die cast, silver. One unit per order line since it sells each.
