Metallics TX1478 1/4-14 x 7/8 ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$96.43
Metallics TX1478 1/4-14 x 7/8 in. 3/8 Hex Head Metal to Metal Self-Drilling Screws - #1 Drill Point - All-Weather - 50qty

Metallics TX1478 1/4-14 x 7/8 in. 3/8 Hex Head Metal to Metal Self-Drilling Screws - #1 Drill Point - All-Weather - Each

(No reviews yet) Write a Review

Model: TX1478
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$96.43
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
1/4-14 x 7/8 in. 3/8 Hex Head Metal to Metal Self-Drilling Screws - #1 Drill Point - All-Weather - 50qty

  • Additional Notes

    • Fasteners for a!aching standing roof clips and wall/roof metal panels to steel framing (purlin/bar joist)|other sizes and quantities available by request

  • Features

    • Minimum torques are the same for stainless and steel self-drill screws. Drill time is 2.5 seconds for a 1 mm thick plate.
    • 3/8 Hex Head with Hex Drive
    • #1 Drill Point
    • 1/4-14 Diameter, 7/8" Length
    • All-Weather Coating

Manufacturer Resources

Product Specs

Minimum Purchase:
50 units
Arra Compliant:
C
Buy American Compliant:
C
Dimensional Standard:
ASME B18.6.3-2010
Division:
Electrical H1
Drill Point Size:
#1
Drive Type:
Hex
Fastener Head Height:
0.172 - 0.19 in.
Fastener Head Type:
Hex
Fastener Head Width:
0.367 - 0.375 in.
Fastener Length:
8-Jul
Field Application:
Construction
Hardness:
Rockwell C32-40
Language Code:
EN
Material Standard:
AISI 1016 - 1024
Order Minimum Imperial:
50
Order Minimum Uom Imperial:
EA
Pack Type:
Jar
Product Group:
Fasteners
Product Height:
2.15 in
Product Length:
3 in
Product Weight:
0.54 lbs
Product Width:
3 in
Screw Point Type:
Drill Point
Slot Depth:
0.083 - 0.101
Slot Width:
0.064 - 0.075
Sub Division:
Electrical-E H2
Thread Per Inch:
14
Thread Standard:
SAE J78 - 2013
Torsional Strength:
150 lb-in minimum
Washer Od:
0.480 - 0.520 in.
Washer Thickness:
0.030 - 0.050 IN
Width Across Corners:
0.409
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Type BSD Metal to Metal Self-Drilling Screw W/O Washer
Type2:
Type BSD Metal to Metal Self-Drilling Screw W/O Washer
Product Finish:
Zinc/All-Weather Coating
Product Details:
Type BSD Metal to Metal Self-Drilling Screw W/O Washer
Product Material:
All-Weather

Metallics TX1478 – Frequently Asked Questions

1) What is the Metallics TX1478 self-drilling screw used for?
The TX1478 is a 1/4-14 x 7/8 in. hex head self-drilling screw for metal-to-metal work: attaching standing seam roof clips and wall or roof metal panels to steel framing such as purlins and bar joists. The #1 drill point is sized for lighter steel framing, so it drills and taps in one pass with no pilot hole.
2) Does this 1/4-14 screw come with a sealing washer?
No. The TX1478 is a Type BSD metal-to-metal self-drilling screw supplied without a washer. If you are fastening exposed panel laps or anywhere weather-tight sealing is needed at the fastener head, you want a screw with a bonded EPDM sealing washer instead. This one is intended for clip and panel attachment to steel framing where the head is not the seal point.
3) How thick a steel can a #1 point self-drilling screw go through?
The #1 point is the lightest drill point in the self-drilling range, sized for thin gauge steel rather than heavy structural members. Metallics rates drill time at 2.5 seconds for a 1 mm thick plate. For heavier purlin or joist flanges, step up to a #3 or #5 point screw.
4) What size nut driver do I need for these Metallics hex head roofing screws?

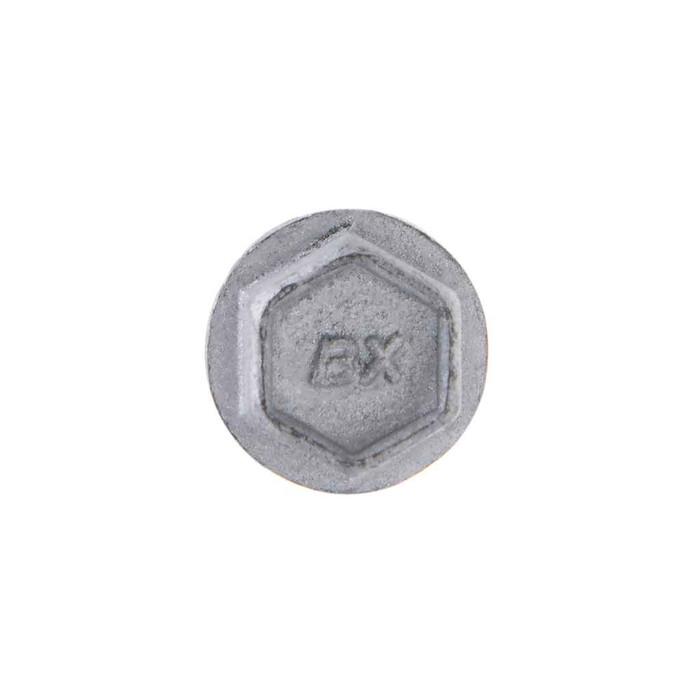

A 3/8 in. hex driver. The head measures 0.367 to 0.375 in. across the flats and 0.409 in. across the corners, with a head height of 0.172 to 0.19 in. A standard 3/8 magnetic nutsetter in a screw gun runs them.
5) Will these screws hold up outdoors on a metal roof?
The TX1478 carries a zinc and all-weather coating for exterior exposure, which is why it is spec'd for roof clip and panel attachment. It is a coated carbon steel screw (AISI 1016-1024), not stainless, so in coastal or chemically aggressive environments a stainless self-drilling fastener is the better call.
6) Will these screws snap when I drive them with an impact or a high-torque screw gun?
Minimum torsional strength is 150 lb-in, with the screws hardened to Rockwell C32-40. Metallics notes minimum torques are the same for stainless and steel self-drill screws. Keep the gun at drill-screw speed with a depth-sensing nose rather than an impact driver and you stay well inside that limit.
7) How are these 1/4-14 screws packaged and can I buy fewer than a jar?
They ship in a jar with a minimum order of 50 each, so the smallest purchase is a 50-count jar. Metallics offers other lengths and quantities of this screw by request if the job calls for a different grip.
