Metallics JSPMP102SS 1/4-20 x ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$192.86

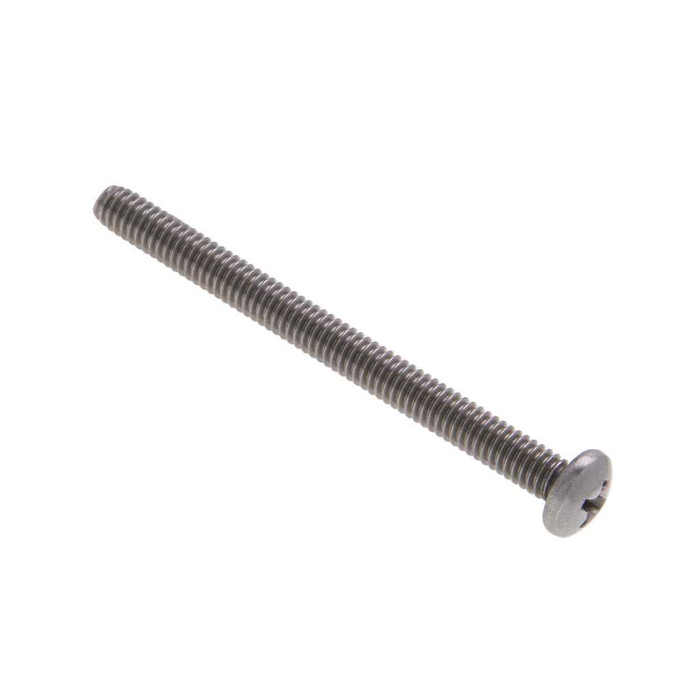

Metallics JSPMP102SS 1/4-20 x 1-1/4 in. Pan Head Phillips Machine Screws - 18-8 Stainless - 100qty

Metallics JSPMP102SS 1/4-20 x 1-1/4 in. Pan Head Phillips Machine Screws - 18-8 Stainless - Each

(No reviews yet) Write a Review

Model: JSPMP102SS
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$192.86
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
1/4-20 x 1-1/4 in. Pan Head Phillips Machine Screws - 18-8 Stainless - 100qty

  • Features

    • Pan head with Phillips Drive
    • 1/4-20 Diameter, 1-1/4" Length
    • 18-8 Stainless Material

  • Additional Notes

    • Other sizes and quantities available by request | Tensile strength values for stainless screws are offered as approximations only; there is no single standard for the performance requirements of stainless machine screws.

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
C
Buy American Compliant:
C
Dimensional Standard:
ASME B18.6.3-2010
Division:
Electrical H1
Drive Type:
Phillips
Driver Size:
#3
Fastener Head Height:
0.162 - 0.175 in.
Fastener Head Type:
Pan
Fastener Head Width:
0.473 - 0.492 in.
Fastener Length:
1/1/04
Hardness:
Rockwell BBS-B9S
Language Code:
EN
Material Standard:
SAE
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Pan_Head_Screw_St_SS.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
CT
Pack Type:
Jar
Phillips Recess Diameter:
0.274
Product Group:
Fasteners
Product Height:
3.6 in
Product Length:
3 in
Product Weight:
1.78 lbs
Product Width:
3 in
Recess Penetration Gaging Depth:
0.118 - 0.144
Sub Division:
Electrical-E H2
Tensile Strength:
80000 psi minimum
Thread Per Inch:
20
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Machine Screw
Type2:
Machine Screw
Series:
SPMP
Product Details:
Machine Screw
Product Material:
18-8 Stainless

Metallics JSPMP102SS – Frequently Asked Questions

1) Will a 1/4-20 pan head screw thread into a standard 1/4-20 tapped box or strut nut?
Yes. The JSPMP102SS is cut 1/4-20, meaning a 1/4 inch nominal diameter at 20 threads per inch, which is the standard coarse 1/4 inch machine thread used in tapped enclosure bosses, channel nuts and 1/4-20 nuts. Dimensions follow ASME B18.6.3-2010, so head and thread geometry match any other conforming 1/4-20 pan head.
2) Can I use these stainless machine screws outdoors or in a wet location?
18-8 stainless is the usual choice for damp and outdoor electrical work: exterior fixture mounting, wet-location boxes, coastal and washdown areas where a plated steel screw rusts in place and seizes. These are 18-8 stainless through the body, not a coating, so cut ends and scratches do not open a corrosion path.
3) Do I get one screw or a box when I order the Metallics JSPMP102SS?
These ship 100 to a jar, and 100 count is the order minimum, so the smallest purchase is a full jar of 1/4-20 x 1-1/4 inch pan head screws. The jar weighs 1.78 lbs. Other sizes and quantities can be requested.
4) What size driver do I need for the Metallics JSPMP102SS pan head Phillips machine screw?
A #3 Phillips driver. The recess diameter is 0.274 inch with a gaging depth of 0.118 to 0.144 inch, so a #2 bit will cam out and chew the recess on a 1/4-20 screw. Bring a #3.
5) Are these Metallics stainless screws strong enough for a structural or load-bearing connection?
No, treat them as a general-purpose fastener. Tensile strength is listed at 80,000 psi minimum with Rockwell BBS-B9S hardness, and stainless machine screws have no single governing performance standard, so the value is an approximation rather than a graded rating. For a rated structural or load-path connection, specify a graded steel bolt instead.
6) Do these screws qualify for a Buy American or ARRA-funded project?
The JSPMP102SS is flagged ARRA compliant and Buy American compliant, with country of origin China. If your contract language requires domestic melt and manufacture rather than the Buy American compliance flag, verify against the specific clause on your project.
7) Is a pan head the right choice, or should I use a flat head for mounting a device in an enclosure?
Pan head sits proud of the surface on a flat bearing face, so it needs no countersink and is what you want for tapped bosses in boxes, strut nuts, and plate mounting where the hole is a plain drilled through-hole. Go to a flat head only if the hole is countersunk or the screw head must finish flush with the surface. The pan head here stands 0.162 to 0.175 inch above the work.
