Metallics JSRM95P 1/4-20 x 2 i...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$192.86

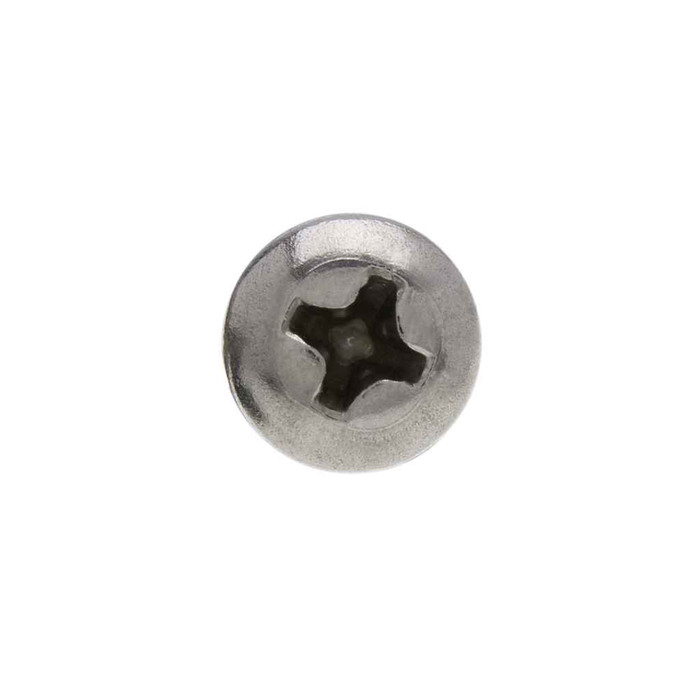

Metallics JSRM95P 1/4-20 x 2 in. Round Head Phillips Machine Screws - 18-8 Stainless - 100qty

Metallics JSRM95P 1/4-20 x 2 in. Round Head Phillips Machine Screws - 18-8 Stainless - Each

(No reviews yet) Write a Review

Model: JSRM95P
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$192.86
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
1/4-20 x 2 in. Round Head Phillips Machine Screws - 18-8 Stainless - 100qty

  • Features

    • 1/4-20 Diameter, 2" Length
    • 18-8 stainless Material
    • Round head with Phillips Drive

  • Additional Notes

    • Other sizes and quantities available by request | Tensile strength values for stainless screws are offered as approximations only; there is no single standard for the performance requirements of stainless machine screws.

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Division:
Electrical H1
Drive Type:
Phillips
Driver Size:
#3
Fastener Head Height:
0.16 - 0.175 in.
Fastener Head Type:
Round
Fastener Head Width:
0.443 - 0.472 in.
Fastener Length:
2
Field Application:
Electrical, Plumbing, Heating and Air Conditioning Industries
Hardness:
Rockwell B85-B95
Language Code:
EN
Material Standard:
SAE
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Round_Head_Machine_Screw.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Phillips Recess Depth:
0.121 - 0.147
Phillips Recess Diameter:
0.255 - 0.268
Phillips Recess Width:
0.034
Product Group:
Fasteners
Product Height:
4.57 in
Product Length:
3 in
Product Weight:
2.55 lbs
Product Width:
3 in
Recess Penetration Gaging Depth:
0.104 - 0.130
Sub Division:
Electrical-E H2
Tensile Strength:
80000 psi minimum
Thread Per Inch:
20
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Machine Screw
Type2:
Machine Screw
Series:
SRM
Product Details:
Machine Screw
Product Material:
18-8 Stainless

Metallics JSRM95P – Frequently Asked Questions

1) How many 1/4-20 x 2 in. Metallics JSRM95P machine screws come in a pack?
The JSRM95P ships as a jar of 100 screws, and 100 is the order minimum. One jar weighs 2.55 lbs. If you need a different count or size, Metallics offers other sizes and quantities by request.
2) Do these Metallics stainless screws meet Buy American or ARRA requirements for a federal job?
No. The JSRM95P is not Buy American compliant and is not ARRA compliant; country of origin is listed as multiple. If your project carries a domestic sourcing clause, these won't satisfy it.
3) What size Phillips driver do I need for 1/4-20 round head machine screws?
A #3 Phillips bit. The recess on the JSRM95P runs 0.255 to 0.268 in. diameter and 0.121 to 0.147 in. deep, which is bigger than a #2 will properly seat in. Using a #2 on these is how you cam out and chew the recess.
4) Are 18-8 stainless machine screws OK for outdoor or damp electrical work?
18-8 stainless is the usual choice for wet, damp, and outdoor locations where plated steel would rust out, so these hold up in exterior boxes, pump rooms, and rooftop equipment. Metallics lists the application as electrical, plumbing, and HVAC work.
5) How much does the head of a 1/4-20 round head Phillips machine screw stand off the surface?
Head height is 0.16 to 0.175 in. with a head width of 0.443 to 0.472 in. That's a domed round head, so it sits proud of the surface rather than flush. If you need the head buried in a countersunk hole, use a flat head machine screw instead.
6) What is the tensile strength of these stainless machine screws?
Metallics rates the JSRM95P at 80,000 psi minimum tensile, with hardness Rockwell B85-B95. Note that Metallics states tensile values for stainless screws as approximations, since there is no single performance standard for stainless machine screws. For a load-bearing structural connection, spec a graded fastener instead.
