Metallics JFMP100SS 1/4-20 x 3...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$192.86

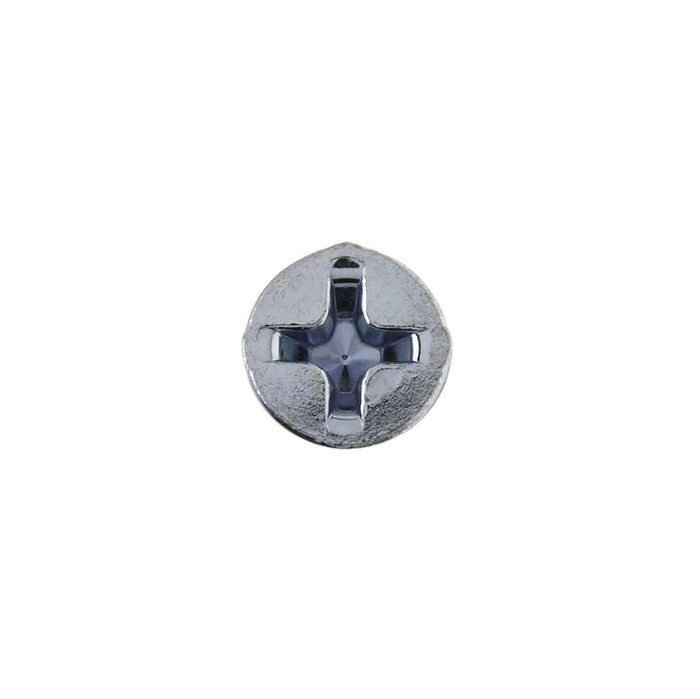

Metallics JFMP100SS 1/4-20 x 3/4 in. Flat Head Phillips Machine Screws - 18-8 Stainless - 100qty

Metallics JFMP100SS 1/4-20 x 3/4 in. Flat Head Phillips Machine Screws - 18-8 Stainless - Each

(No reviews yet) Write a Review

Model: JFMP100SS
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$192.86
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
1/4-20 x 3/4 in. Flat Head Phillips Machine Screws - 18-8 Stainless - 100qty

  • Additional Notes

    • Other sizes and quantities available by request | Hardness and tensile strength standards are offered as guides only for stainless machine screws. There is currently no national standard for these performance requirements for stainless machine screws.

  • Features

    • Stainless is also superior to steel in withstanding some elevation in application operating temperature while maintaining its strength.
    • 1/4-20 Diameter, 3/4" Length
    • 18-8 Stainless Material
    • Flat head with Phillips Drive
    • Stainless steel machine screws are used in applications which require general atmospheric corrosion resistance, in food processing machinery and refrigeration equipment.

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Dimensional Standard:
ASME B18.6.3-1998
Division:
Electrical H1
Drive Type:
Phillips
Driver Size:
#3
Fastener Head Height:
0.131 - 0.153 in.
Fastener Head Type:
Flat
Fastener Head Width:
0.442 - 0.477 in.
Fastener Length:
4-Mar
Field Application:
Electrical, Plumbing, Heating and Air Conditioning Industries
Gaging Diameter:
0.424
Hardness:
Rockwell B85-B95
Language Code:
EN
Material Standard:
SAE
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Flat_Head_Mach_Screw.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Phillips Recess Depth:
0.16
Phillips Recess Diameter:
0.276
Phillips Recess Width:
0.036
Product Group:
Fasteners
Product Height:
2.15 in
Product Length:
3 in
Product Weight:
1.15 lbs
Product Width:
3 in
Protrusion Gaging Diameter:
0.029 - 0.050 Above
Sub Division:
Electrical-E H2
Tensile Strength:
1900 lb minimum
Thread Per Inch:
20
Thread Standard:
ANSI/ASME B1.1
Thread Type:
UNC
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Machine Screw
Type2:
Machine Screw
Series:
FM and FMP
Product Details:
Machine Screw
Product Material:
18-8 Stainless

Metallics JFMP100SS – Frequently Asked Questions

1) What thread does the Metallics JFMP100SS machine screw have, and will it thread into a 1/4-20 tapped hole or standard nut?
It's a 1/4-20 UNC thread, 20 threads per inch, cut to ANSI/ASME B1.1. So it mates with any standard 1/4-20 tapped hole, coupling, or hex nut. Screw length is 3/4 inch under the head.
2) Can I use these on a federally funded or Buy American job?
No. The JFMP100SS is listed as not Buy American compliant and not ARRA compliant, with multiple countries of origin. If your spec carries a domestic-content requirement, these won't satisfy it.
3) What size Phillips driver do I need for these 1/4-20 flat head screws?
A #3 Phillips. The recess is 0.276 inch in diameter and 0.16 inch deep, so a #2 bit will cam out and chew the recess under any real torque. Load up a #3 bit before you start the run.
4) Are these stainless screws OK for outdoor, washdown, or refrigeration work?
They're 18-8 stainless, which is the grade used where general atmospheric corrosion resistance matters, including food processing machinery and refrigeration equipment. Stainless also holds strength better than plain steel as operating temperature climbs. For salt spray or chemical immersion service you'd want to step up from 18-8.
5) How many Metallics JFMP100SS screws come in a pack?
They ship 100 to a jar, and 100 is the order minimum. One jar covers a decent panel or device-mounting run without opening a second container mid-job.
6) What trades actually use the Metallics FM/FMP flat head machine screws?
They're stocked for the electrical, plumbing, and HVAC trades. Typical use is fastening device plates, enclosure covers, brackets, and equipment panels into tapped holes where the head has to finish flush. The 3/4 inch length suits thin-to-moderate material stacks where you still get full thread engagement.
7) Will these stainless screws gall when I run them into a stainless nut?
18-8 stainless on 18-8 stainless is prone to thread galling if driven fast or dry, and these are 18-8 throughout. Run them in slowly with a #3 Phillips, or use an anti-seize on the 1/4-20 UNC thread. Against an aluminum or carbon steel tapped hole it isn't a concern.
