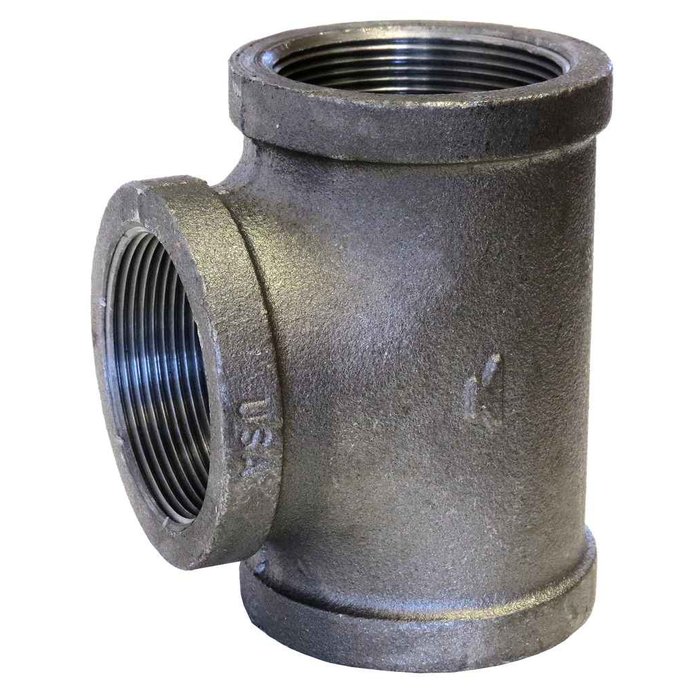

1/4 BLK MI TEE
Manufacturer Resources
Product Specs
- Dimensions Specification:
- ASME B16.3
- End Conn Size 1:
- FPT
- End Conn Size 2:
- FPT
- End Conn Size 3:
- FPT
- Material Specification:
- ASTM A-197
- Pressure Rating Specification:
- ASME B16.3
- Size 1:
- 0.25
- Size 2:
- 0.25
- Size 3:
- 0.25
- Strength:
- STD
- Thread Specification:
- ASME B1.20.1
- Ul Fm:
- Yes
- Department:
- Plumbing
- Product Group:
- Pipe Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Finish:
- Black
- Product Material:
- Malleable Iron
- Product Weight:
- 0.15 lbs
ASC Engineered Solutions 310029400 – Frequently Asked Questions
1) Are all three openings on the ASC 1/4 inch black malleable iron tee the same size?
Yes, it's a straight 1/4 inch tee. All three outlets are 1/4 inch and all three are female pipe thread (FPT), so the run and the branch take the same nipple or pipe size. If you need a size change at the branch, you want a reducing tee instead.
2) Can I use a black malleable iron tee on a natural gas line?
Black malleable iron threaded fittings are the normal choice for gas piping, and this one is black finish malleable iron built to ASME B16.3 with NPT threads. Black iron is used on gas and steam rather than potable water, where the galvanized version is used instead because the black fitting has no corrosion coating. Always confirm the fitting class against your local gas code and system pressure.
3) Is this 1/4 inch tee UL listed and FM approved for fire sprinkler work?
Yes, the fitting carries UL/FM recognition, which is what a sprinkler contractor needs when the fitting is going into a fire protection system. It's made to ASTM A-197 malleable iron with ASME B16.3 dimensions.
4) Is this a standard class or extra heavy malleable iron fitting?
Standard class. The strength rating is STD, which is Class 150 malleable iron under ASME B16.3. If your drawing calls for Class 300 extra heavy, this is not the fitting for that spec.
5) What material spec does this ASC malleable iron tee meet?
The casting is ASTM A-197 malleable iron, with dimensions and pressure rating to ASME B16.3 and threads to ASME B1.20.1. That is the three-part callout most mechanical submittals ask for on a threaded iron fitting.
