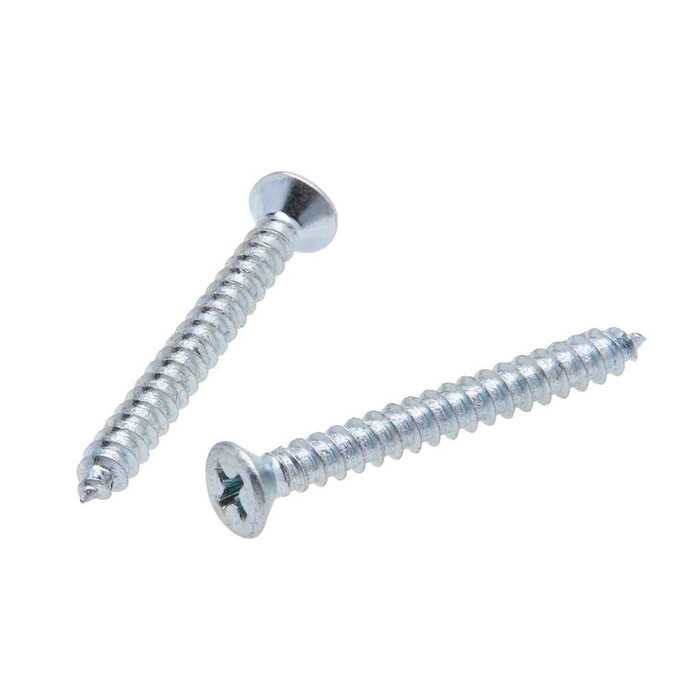

Metallics JTSF61 14 x 1-1/2 in. Flat Head Phillips Tapping Screws - Steel Zinc - 100qty

Metallics JTSF61 14 x 1-1/2 in. Flat Head Phillips Tapping Screws - Steel Zinc - Each

(No reviews yet) Write a Review

Model: JTSF61
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$192.86
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
14 x 1-1/2 in. Flat Head Phillips Tapping Screws - Steel Zinc - 100qty

  • Additional Notes

    • Other sizes and quantities available by request | Dimensions for #9 diameter are independent of ASME B18.6.4

  • Features

    • Steel Zinc Material
    • Flat head with Phillips Drive
    • 14 Diameter, 1-1/2" Length

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
C
Buy American Compliant:
C
Dimensional Standard:
ASME B18.6.4-1998
Division:
Electrical H1
Drive Type:
Phillips
Driver Size:
#3
Fastener Head Height:
0.126 - 0.148 in.
Fastener Head Type:
Flat
Fastener Head Width:
0.427 - 0.462 in.
Fastener Length:
1/1/02
Gaging Diameter:
0.41
Hardness:
Rockwell C28-38
Language Code:
EN
Material Standard:
AISI 1016 - 1024
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Flat_Phillips_Self_Tap.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
CT
Pack Type:
Jar
Phillips Recess Depth:
0.16
Phillips Recess Diameter:
0.276
Phillips Recess Width:
0.036
Product Group:
Fasteners
Product Height:
2.7 in
Product Length:
3 in
Product Weight:
1.46 lbs
Product Width:
3 in
Protrusion Gaging Diameter:
0.029 - 0.049 Above
Screw Point Type:
Gimlet Point
Sub Division:
Electrical-E H2
Thread Per Inch:
10
Thread Standard:
ASME B18.6.4
Torsional Strength:
125 lb-in minimum
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Type A Tapping Screw
Type2:
Type A Tapping Screw
Series:
JTSF
Product Finish:
Zinc
Product Details:
Type A Tapping Screw
Product Material:
Steel Zinc

Metallics JTSF61 – Frequently Asked Questions

1) Is a Type A tapping screw the right choice for sheet metal, or do I need a self-drilling screw?
The JTSF61 is a Type A tapping screw with a gimlet point, so it forms its own thread in a pre-punched or pre-drilled hole in thin sheet metal. It is not self-drilling. If you need the fastener to cut through the metal without a pilot hole, use a self-drilling (Type TEK) screw instead. For electrical work where the box, strap, or panel already has a punched hole, the Type A is what gets used.
2) Do these Metallics tapping screws meet Buy American requirements for a federal or public project?
The JTSF61 is flagged Buy American compliant and ARRA compliant in the manufacturer data, which is what a government, school, or healthcare procurement officer needs on the submittal. Country of origin is listed as multiple.
3) Is the #14 tapping screw dimensionally standard, so another brand's #14 will match on a repair?
Yes. The JTSF61 is built to ASME B18.6.4-1998 for dimensions and ASME B18.6.4 for threads, with a gaging diameter of 0.41 inch and protrusion gaging 0.029 to 0.049 inch above. Any other #14 Type A tapping screw built to the same standard will interchange in the same hole. Note that Metallics states its #9 diameter screws are independent of ASME B18.6.4, so that size is the exception in the series.
4) What driver bit do I need for the Metallics JTSF61 #14 flat head Phillips tapping screw?
A #3 Phillips bit. The recess is 0.276 inch in diameter, 0.16 inch deep and 0.036 inch wide, so a #2 bit will cam out and chew the recess on a screw this size. Keep a #3 in the bag if you are driving these with an impact.
5) How tough are these screws, and will they snap if I overdrive them?
The JTSF61 is case hardened to Rockwell C28-38 from AISI 1016-1024 steel, with a minimum torsional strength of 125 lb-in. That is the torque the screw will take before twisting off, so set the clutch on a driver rather than leaning on an impact gun in hard stock.
6) Are these zinc plated screws OK for outdoor or damp locations?
These are steel with a zinc plated finish, which is a general purpose indoor corrosion coating. Fine for dry interior electrical work, panel and box mounting, and strapping. For exterior, wet, or coastal exposure, specify a stainless or hot dip galvanized fastener instead; plain zinc will bloom and rust in standing moisture.
7) Can I buy the JTSF61 screws in less than 100?
No. The order minimum is 100 count, supplied in a jar. If you need a different size or a different quantity, Metallics offers other sizes and quantities in the JTSF series by request.
8) What is the thread pitch on the Metallics #14 x 1-1/2 in. tapping screw?
10 threads per inch, to ASME B18.6.4. That is the standard Type A pitch for a #14 and it is the coarse spacing that lets the screw form a thread in thin gauge metal rather than strip it.
9) How much does a jar of 100 of these screws weigh for shipping or a stock bin?
A jar runs 1.46 lbs for the 100 count, and the jar itself is about 3 x 2.7 x 3 inches, so it drops into a standard van shelf bin without repacking.
