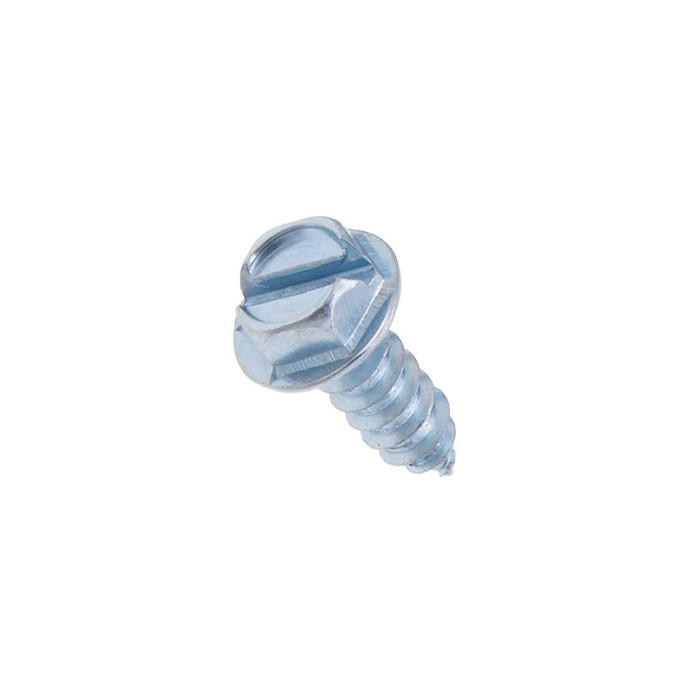

14 x 2 in. 3/8 Indented Hex Head Slotted Sharp Point Tapping Screws - Steel Zinc - 500qty
Additional Notes
- Other sizes and quantities available by request | Dimensions for #9 diameter are independent of ASME B18.6.4
Features
- Hex 3/8 Head with slotted Drive
- Steel Zinc Material
- 14 Diameter, 2" Length
Manufacturer Resources
Product Specs
- Arra Compliant:
- N
- Buy American Compliant:
- No
- Country Of Origin:
- MUL
- Dimensional Standard:
- ASME B18.6.3-2010
- Division:
- Electrical H1
- Drive Type:
- Hex/Slotted
- Fastener Head Height:
- 0.172 - 0.19 in.
- Fastener Head Type:
- Indented Hex
- Fastener Head Width:
- 0.367 - 0.375 in.
- Fastener Length:
- 2
- Finish:
- Zinc
- Hardness:
- RockweII C28-38
- Language Code:
- EN
- Material:
- Steel Zinc
- Material Standard:
- AISI 1016 - 1024
- Order Minimum Imperial:
- 500
- Order Minimum Uom Imperial:
- EA
- Pack Type:
- Box
- Product Family:
- Electrical Supplies
- Product Group:
- Fasteners
- Product Series:
- JDS
- Remarks:
- The catalog UPC differ from the tarnsaction daat spreadsheet UPC
- Screw Point Type:
- Gimlet Point
- Slot Depth:
- 0.083 - 0.101
- Slot Width:
- 0.064 - 0.075
- Sub Division:
- Electrical-E H2
- Thread Per Inch:
- 10
- Thread Standard:
- ASME B18.6.4
- Torsional Strength:
- 125 lb-in minimum
- Type:
- Type A Tapping Screw
- Washer Od:
- 0.480 - 0.520 in.
- Washer Thickness:
- 0.030 - 0.050 IN
- Width Across Corners:
- 0.409
- Department:
- Electrical
- Product Subgroup:
- Screws
- Product Type:
- Type A Tapping Screw
- Type2:
- Type A Tapping Screw
