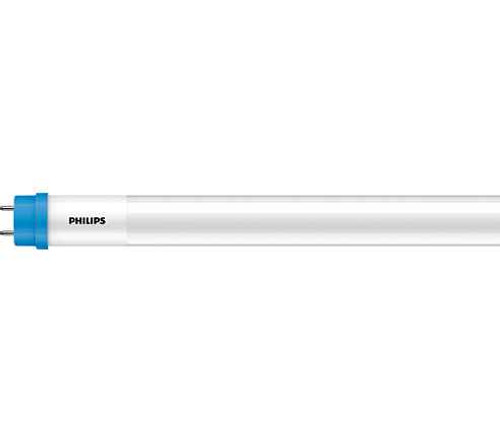

Philips Lighting 14W T8 LED Tube 4000K Cool White Dimmable InstantFit

Philips Lighting 14W T8 LED Tube 4000K Cool White Dimmable InstantFit

Professional LED tube lighting with InstantFit compatibility and superior energy efficiency

Philips Lighting delivers professional-grade LED tube lighting with this 14W T8 LED tube featuring 4000K cool white output and dimmable functionality. The InstantFit design works with over 350 ballasts and drivers, offering plug-and-play, ballast bypass, or UL Type C installation options. With G13 medium bi-pin base and 2100 lm initial output at 150 lm/W efficacy, this tube provides reliable performance for commercial and industrial applications with up to 50,000 hours nominal lifetime.

Professional Features & Benefits

• 14W Power Rating: Delivers efficient lighting performance while reducing energy consumption compared to traditional fluorescent tubes.
• 4000K Cool White: Provides crisp, professional lighting ideal for office environments and commercial spaces with 82 CRI color rendering.
• Dimmable Functionality: Offers flexible light control for various applications and energy management requirements.
• InstantFit Compatibility: Works with over 350 ballasts and drivers, enabling easy retrofit installations without rewiring.
• 50,000 Hour Lifetime: Reduces maintenance costs and replacement frequency with extended operational life and 70% lumen maintenance.
• DLC Standard Certification: Meets energy efficiency standards for utility rebate eligibility and professional installations.
• Wide Operating Range: Functions reliably from -20�C to 45�C ambient temperature with 120-277V, 347V voltage compatibility.

Technical Specifications

• Base: G13 [ Medium Bi-Pin Fluorescent]
• Beam Angle Nom : 240 �
• Color Code: 841 [ CCT of 4100K (841)]
• Color Consistency: <6
• Color Designation: Cool White (CW)
• Color Rendering Index Nom : 82
• Correlated Color Temperature Nom : 4000 K
• Dimmable: Yes
• Energy Certifications: DLC Standard
• Energy Saving Product: Yes
• Eu Rohs Compliant: Yes
• Initial Lumen Nom : 2100 lm
• Input Frequency: 25000-105000 Hz
• Lamp Current Max : 260 mA
• Lamp Current Min : 100 mA
• Llmf At End Of Nominal Lifetime Nom : 70%
• Luminous Efficacy Rated Nom : 150.00 lm/W
• Nominal Lifetime Nom : 50000 h
• Power Factor Nom : 0.9
• Power Rated Nom : 14 W
• Starting Time Nom : 0.5 s
• Switching Cycle: 50000X
• T Ambient Max : 45 �C
• T Ambient Min : -20 �C
• T Case Maximum Nom : 50 �C
• T Storage Max : 65 �C
• T Storage Min : -40 �C
• Voltage Nom : 120-277, 347 V
• Warm Up Time To 60 Light Nom : 0.5 s

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Office Buildings and Corporate Facilities
• Retail Establishments and Shopping Centers
• Industrial Facilities and Warehouses
• Parking Structures and Covered Areas
• Educational Institutions
• Healthcare Facilities
• Government Buildings

Why Choose Philips Lighting Quality?

Philips Lighting provides reliable LED tube technology with DLC Standard certification and RoHS compliance, ensuring professional-grade performance and environmental responsibility. The 50,000-hour nominal lifetime and wide operating temperature range deliver dependable operation in demanding commercial and industrial environments.
