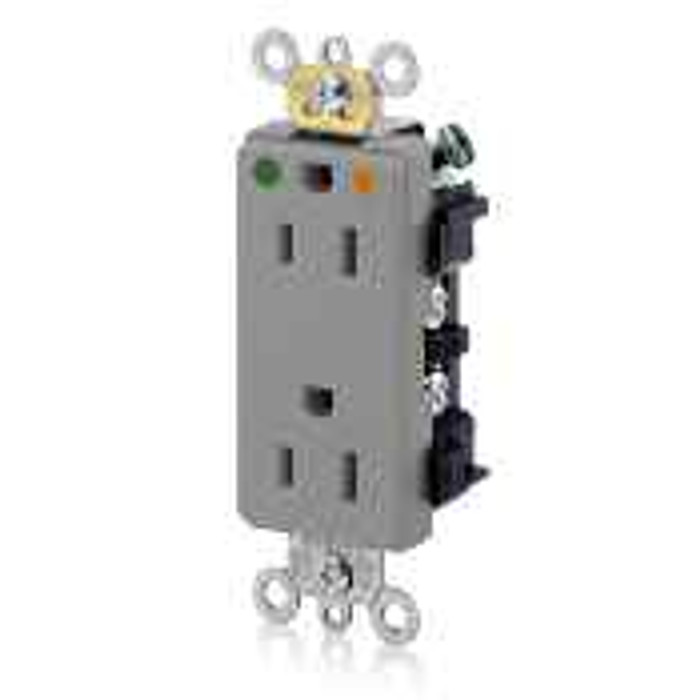

15 Amp, 125 Volt, NEMA 5-15R, 2P, 3W, Decora Plus Duplex Receptacle, Straight Blade, Hospital Grade, Isolated Ground, , Back & Side Wired, Steel Strap, - Gray
Related Products
- 16262-IGR
- 16262-IGT
- 16262-IGW
- 16262-IGE
- 16262-IG
- 16262-IGI
- 16262-IGB
Manufacturer Resources
Product Specs
- At Rated Voltage:
- 1/2 HP
- Body Material:
- Nylon
- Clamp Nuts:
- Zinc-Plated Steel
- Csa C22 2 No 42:
- File 152105
- Current Limiting:
- Full Rated Current
- Dielectric Voltage:
- Withstands 2000V per UL498
- Face Material:
- Nylon
- Grounding Screw:
- Brass 8-32
- Operating Temperature:
- -40C-60C
- Product Id:
- Ratings are permanently marked on device
- Strap Material:
- Steel
- Temperature Rise:
- Max 30C after 250 cycles OL at 200 percent rated current
- Terminal Accom :
- 14-10 AWG
- Terminal Id:
- Brass-Hot, Green-Ground, Silver-Neutral
- Terminal Screws:
- Brass 10-32
- Product Group:
- Wiring Devices
- Department:
- Electrical
- Product Subgroup:
- Wiring Accessories
- Amperage:
- 15 Amp
- Ansi:
- C-73
- Color:
- Gray
- Flammability:
- Rated V-2 per UL94
- Grade:
- Hospital
- Grounding:
- Isolated Ground
- Nema:
- WD-6
- Nom:
- 57
- Pole:
- 2
- Termination:
- Back & Side
- Ul498hg:
- File E13399
- Voltage:
- 125 Volt
- Wire:
- 3
- Yoke:
- Zinc-Plated Steel
