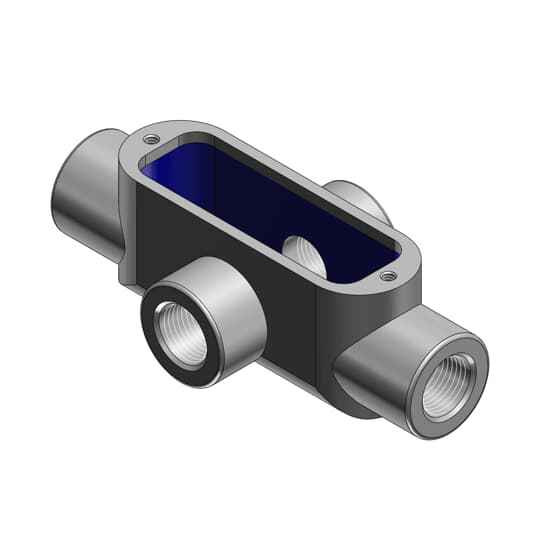

Thomas & Betts X100M 1IN S35 X COND BODY IRON

Thomas & Betts Series 35 Conduit Body X-Type 1-Inch Malleable Iron

(No reviews yet) Write a Review

Model: X100M
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$289.01
$37.07
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Thomas & Betts Series 35 Conduit Body X-Type 1-Inch Malleable Iron

Professional Electrical Conduit Body Fitting

The Thomas & Betts Series 35 X-Type Conduit Body delivers reliable conduit system performance for 1-inch electrical installations. This malleable iron conduit body provides dependable performance designed for electrical contractors, industrial facilities, and commercial installations, offering the trusted performance and quality that professionals expect from America's established electrical infrastructure manufacturer.

Professional Features & Benefits

Durable Construction Performance

  • Malleable Iron Construction - Superior strength and durability for demanding electrical applications with Thomas & Betts quality engineering
  • Series 35 Design - Professional-grade conduit body engineered for reliable electrical system connections and wire pulling access
  • X-Type Configuration - Provides multiple conduit entry points for complex electrical routing and junction applications
  • 1-Inch Trade Size - Designed for standard 1-inch conduit systems with precise threading for secure connections

Installation & Application Benefits

  • Professional Threading - Precision-machined threads ensure secure conduit connections and long-term electrical system integrity
  • Wire Pulling Access - X-type design facilitates wire installation and maintenance in complex electrical routing applications
  • Corrosion Resistance - Malleable iron construction provides excellent durability in various electrical installation environments

Technical Specifications

Trade Size: 1-Inch, Material: Malleable Iron, Product Type: Series 35 Conduit Body, Configuration: X-Type, Department: Electrical, Construction: Professional electrical conduit body fitting designed for standard conduit system applications.

Installation & Usage

  1. Verify conduit body size matches 1-inch conduit system requirements and electrical specifications
  2. Apply appropriate thread sealant to conduit threads according to electrical installation standards
  3. Thread conduit body securely onto conduit ends ensuring proper alignment for electrical connections
  4. Install cover plate with appropriate gasket for environmental protection and code compliance
  5. Route electrical conductors through conduit body using proper wire pulling techniques
  6. Verify all connections are secure and meet local electrical code requirements before energizing system

Professional Applications

Ideal for:

  • Industrial Electrical Systems - Manufacturing facilities, processing plants, and industrial equipment electrical connections
  • Commercial Construction - Office buildings, retail facilities, and commercial electrical infrastructure installations
  • Conduit System Junctions - Complex electrical routing requiring multiple conduit entry points and wire access
  • Electrical Maintenance Access - Installations requiring periodic wire pulling and electrical system maintenance
  • Facility Electrical Infrastructure - Permanent electrical installations in commercial and industrial environments
  • Contractor Applications - Professional electrical installations requiring reliable conduit body fittings
  • Electrical Panel Connections - Conduit routing to electrical panels and distribution equipment
  • Motor Control Centers - Industrial electrical connections requiring durable conduit body fittings

Malleable Iron Advantage

Thomas & Betts selection of malleable iron construction provides superior strength and durability for electrical conduit body applications. This material choice ensures long-term performance in demanding electrical environments while maintaining the threading integrity essential for secure conduit connections and professional electrical installations.

Why Choose Thomas & Betts Quality?

With decades of established experience in electrical infrastructure solutions, Thomas & Betts maintains unwavering commitment to professional quality standards and trusted reliability for electrical contractors and facility managers. Our Series 35 conduit bodies represent the engineering excellence and manufacturing precision that electrical professionals depend on for critical electrical system installations and long-term performance reliability.

Manufacturer Resources

Product Specs

Number Of Batteries:
0
Product Type:
Type X Conduit Body
Department:
Electrical
Product Material:
Malleable Iron
Product Group:
Conduit & Raceway
Product Subgroup:
Conduit Bodies & Covers

Thomas & Betts X100M – Frequently Asked Questions

1) What does the X configuration on a Thomas & Betts Series 35 conduit body give me compared to an LB, T, or C body?
The X body is a four-opening cross fitting. All four hubs are threaded 1-inch, so conduit can enter from four directions at one point, which is what you want at a true junction where runs cross or split two ways. A T body handles three directions, a C is a straight inline pull point, and an LB turns a 90 and is the one to use where you are coming out of a wall into a down run. If your routing only needs three legs, the X leaves you with a hub to plug.
2) Will the X100M thread onto 1-inch rigid metal conduit, or do I need a different fitting for EMT?
The hubs are threaded for 1-inch trade size conduit, so it mates directly with threaded rigid metal conduit or IMC. EMT is not threaded, so you cannot screw it into this body. To bring EMT into it you need an EMT-to-threaded male adapter or a set-screw/compression connector with a male thread on the conduit end.
3) Does the Thomas & Betts X100M conduit body come with a cover and gasket?
The X100M is the body casting only. The install sequence calls for a cover plate with the appropriate gasket to be fitted after the body is threaded on, and those are ordered separately. Match the cover to the 1-inch Series 35 body opening, and pick the gasket material for the environment, since the cover and gasket are what close the fitting and keep water and dust out.
4) Is a malleable iron conduit body strong enough for an industrial plant, or should I use aluminum?
Malleable iron is the heavier-duty choice of the two and is what this body is cast from. It holds thread engagement well and takes mechanical abuse, which is why it gets specified in manufacturing plants, processing facilities, and motor control center feeds. Aluminum bodies weigh less and are often preferred where the conduit system itself is aluminum, since mixing dissimilar metals in a wet location invites galvanic corrosion. For steel rigid or IMC in an industrial setting, the iron body is the consistent match.
5) Can I use the Series 35 X body as a pull point for wire, or is it only a routing fitting?
It serves both. With the cover off, the X body is an access opening for pulling and feeding conductors at the junction, and it stays accessible afterward for maintenance pulls. That is the usual reason to set one at a corner or crossing rather than bending four separate runs.
6) I need to standardize conduit body fittings across a facility. What exactly do I order to repeat this one?
Specify Thomas & Betts part number X100M: Series 35, X configuration, 1-inch trade size, malleable iron. One part number covers the whole item, there are no finish or handing options to pick. Covers and gaskets are a separate line, so build those into the standard kit if you want a complete fitting on every requisition.
7) Do I need thread sealant when installing a 1-inch malleable iron conduit body?
Yes, the conduit threads should get an appropriate thread sealant before the body is threaded on, then run it up tight with the hubs aligned to the conduit runs. On a metal conduit system the threaded joints are also carrying the equipment grounding path, so take the alignment and tightness seriously rather than just hand-starting the fitting.
