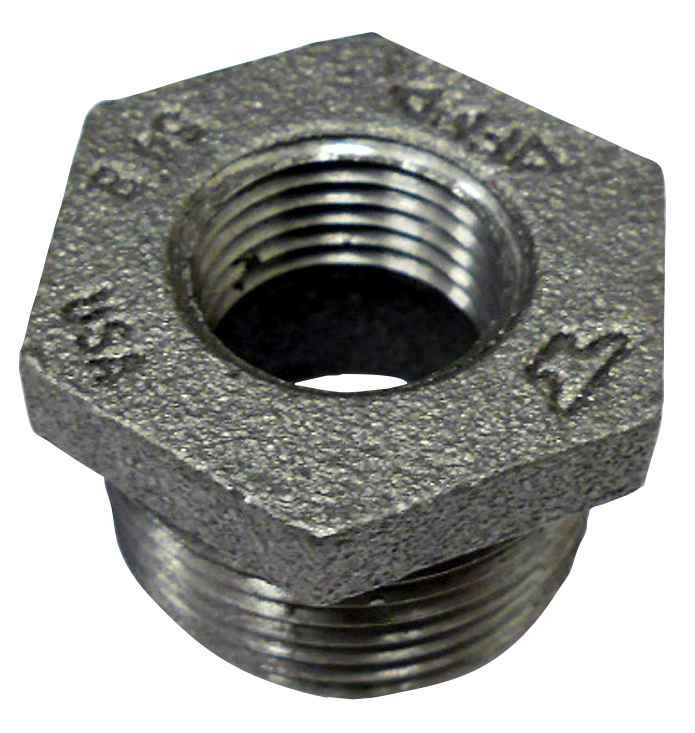

1X3/4 BLK MI HEX BUSHING
Manufacturer Resources
Product Specs
- Dimensions Specification:
- ASME B16.3
- End Conn Size 1:
- MPT
- End Conn Size 2:
- FPT
- Material Specification:
- ASTM A-197
- Pressure Rating Specification:
- ASME B16.3
- Size 1:
- 1
- Size 2:
- 0.75
- Strength:
- STD
- Thread Specification:
- ASME B1.20.1
- Ul Fm:
- Yes
- Department:
- Plumbing
- Product Group:
- Pipe Fittings
- Product Subgroup:
- Bushings
- Product Type:
- Bushing
- Product Finish:
- Black
- Product Material:
- Malleable Iron
- Product Weight:
- 0.16 lbs
ASC Engineered Solutions 318906641 – Frequently Asked Questions
1) What size pipe does the ASC Engineered Solutions black malleable iron hex bushing reduce?
It takes 1 inch down to 3/4 inch. The large end is 1 inch male pipe thread and the small end is 3/4 inch female pipe thread, so it threads into a 1 inch female port and accepts a 3/4 inch male pipe or nipple.
2) Are the threads on this 1 x 3/4 hex bushing standard NPT?
Yes. The threads are made to ASME B1.20.1, which is the standard American taper pipe thread spec, so it mates with any standard NPT pipe, nipple or fitting of the matching size. Use pipe dope or PTFE tape on the taper to seal.
3) Is this black iron bushing UL listed and FM approved for a sprinkler line?
It carries UL/FM recognition, and it is a standard weight malleable iron fitting built to ASME B16.3 for both dimensions and pressure rating. That combination is what fire protection contractors look for on threaded black iron sprinkler piping. Match the pressure class on the drawing to the B16.3 standard class before you commit.
4) Can I use a black malleable iron bushing on a domestic water line?
No. Black malleable iron is for gas, fire protection, air, and non-potable service. Potable water calls for galvanized, brass, copper or a lead-free rated fitting, because unlined black iron rusts in wet water service. Use this one on black steel gas or sprinkler pipe.
5) What grade of iron is this ASC hex bushing made from?
Cast malleable iron to ASTM A-197, the standard material spec for threaded malleable iron pipe fittings. It is a standard weight (STD) fitting, not extra heavy.
