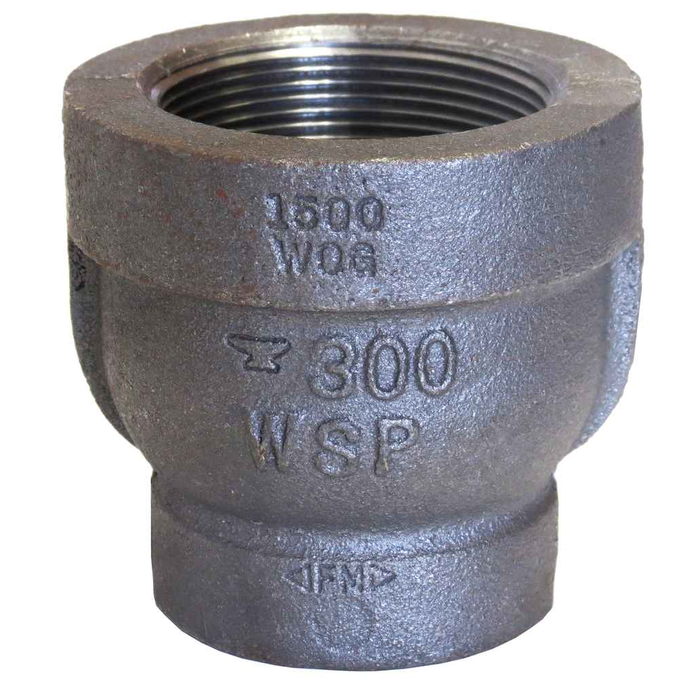

1X3/8 XH BLK MI REDUCER
Manufacturer Resources
Product Specs
- Dimensions Specification:
- ASME B16.3
- End Conn Size 1:
- FPT
- End Conn Size 2:
- FPT
- Material Specification:
- ASTM A-197
- Pressure Rating Specification:
- ASME B16.3
- Size 1:
- 1
- Size 2:
- 0.375
- Strength:
- XH
- Thread Specification:
- ASME B1.20.1
- Ul Fm:
- Yes
- Department:
- Plumbing
- Product Group:
- Pipe Fittings
- Product Subgroup:
- Reducers
- Product Type:
- Reducer
- Product Finish:
- Black
- Product Material:
- Malleable Iron
- Product Weight:
- 0.71 lbs
ASC Engineered Solutions 310542808 – Frequently Asked Questions
1) What size pipe does the ASC Engineered Solutions black malleable iron reducer connect?
It reduces 1 inch down to 3/8 inch, with female pipe threads on both ends. Both openings are FPT, so it threads onto male-threaded pipe nipples or fitting ends on each side rather than accepting plain pipe.
2) Will this reducer thread onto standard NPT pipe?
Yes. Threads are cut to ASME B1.20.1, which is the standard NPT taper pipe thread spec, so it mates with ordinary NPT-threaded steel pipe and nipples. Use pipe dope or PTFE tape on the taper as usual.
3) Is this an extra heavy (Class 300) reducer or a standard weight one?
It is the XH extra heavy pattern, dimensioned and pressure rated to ASME B16.3. If your drawing calls for standard weight (Class 150) malleable iron, this is the heavier-wall version, which is what you want on higher pressure steam, gas, or compressed air runs.
4) Is this black malleable iron reducer UL listed and FM approved?
Yes, it carries UL/FM recognition, which matters if you are working on fire protection piping where the authority having jurisdiction requires listed fittings. The body is malleable iron to ASTM A-197 with a black finish.
5) Can I use a black malleable iron reducer on a domestic water line?
No. Black malleable iron is for gas, steam, compressed air, fire protection, and similar dry or non-potable service. For potable water you want galvanized, copper, or brass instead, since black iron corrodes in wet water service.
6) What is the difference between this reducer and a reducing bushing or a reducing coupling?
This ASC fitting is female threaded on both the 1 inch and the 3/8 inch side, so it joins two male-threaded ends, the same way a coupling does. A reducing bushing is male on the large side and screws into a female port, taking up less space. Pick the bushing when you are stepping down inside an existing female fitting; pick this one when you are joining two nipples or pipe ends.
7) How much does the 1 x 3/8 extra heavy reducer weigh for freight and hanger calculations?
Each fitting weighs 0.71 lbs. Light enough that it adds nothing meaningful to a hanger load, but useful when you are pricing out a bulk box for a large job.
