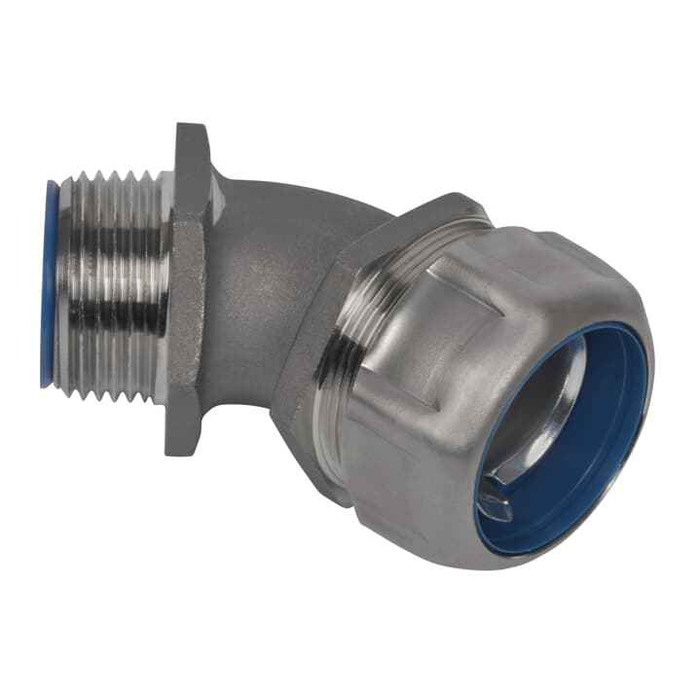

Thomas & Betts 5347SST6 2 45 DEG 316 SS LT FITTING

It's built from 316 stainless steel, the grade specified where chlorides and washdown chemicals attack standard steel or zinc die cast fittings. That makes it the right pick for food and beverage processing, pharma, wastewater, and marine or coastal exposure. The ground cone is Duraplated.

It is made for flexible metallic conduit, specifically liquidtight, in 2 inch trade size. Any manufacturer's 2 inch LFMC of the standard type terminates in it; the fitting is sized to the trade size, not to a brand.

A 45 degree fitting like the 5347SST6 turns the conduit away from the enclosure at a half angle, which keeps the liquidtight whip off the wall and stops you forcing a tight radius bend right at the connector. Use a straight connector when the conduit runs square into the box, a 90 when you need a full turn at the enclosure, and the 45 when you need to clear an obstruction or route down at an angle without kinking the flex.

Yes. The fitting includes a Duraplated ground cone, which bites the flexible metal core of the liquidtight conduit to carry the bonding path through the connector into the enclosure. Where code requires a separate equipment grounding conductor for the circuit, you still pull one.

The 5347SST6 body is 316 stainless, which is more noble than plain or galvanized steel, so in a wet chloride environment the steel hub or enclosure is the part that will corrode first. On corrosive installs the usual practice is to keep the enclosure material in the same class, stainless or non metallic, rather than pairing a stainless fitting to a painted steel box in a washdown zone.

Finish is bare metallic stainless, no paint or coating on the body, so it matches other 316 stainless fittings and stainless strut or enclosures on the same run.
