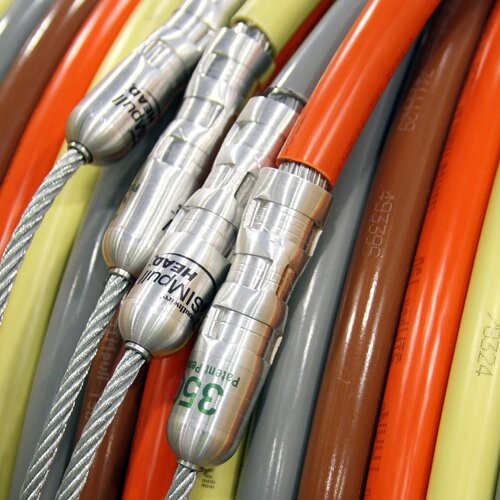

Southwire 2 AWG SIMPULL HEAD 12" Steel Cable Pulling Device

(No reviews yet) Write a Review

Model: SPH2-12

In Stock (leaves warehouse same day if ordered before 3pm ET)

$75.51
$20.31
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Southwire 2 AWG SIMPULL HEAD 12" Steel Cable Pulling Device

Professional Low-Profile Cable Installation Solution

The Southwire 2 AWG SIMPULL HEAD delivers efficient cable pulling performance with its steel construction and 12" length design. This commercial-grade pulling device features the lowest profile available in its category, enabling smooth cable installation in tight spaces while saving valuable installation time through its staggered length design and optimized pulling mechanics.

Professional Features & Benefits

  • 2 AWG Wire Capacity: Engineered specifically for 2 AWG cable applications, ensuring proper fit and secure pulling performance.
  • 12" Length Design: Provides optimal pulling distance while maintaining maneuverability in confined installation spaces.
  • Steel Construction: Durable steel material delivers reliable strength and longevity for demanding commercial cable pulling operations.
  • Lowest Profile Available: Minimized profile design allows installation in tight conduit runs and restricted access areas.
  • Staggered Length Configuration: Advanced design reduces binding and improves pulling efficiency through complex cable runs.
  • Time-Saving Performance: Streamlined pulling action reduces installation time and labor costs on commercial projects.

Technical Specifications

  • Items In Inner Pack: 5
  • Batteries Included: No
  • Batteries Required: No
  • Color: Silver
  • Commercial Residential: Commercial
  • Csa Certified: No
  • Does The Item Contain Mercury: No
  • Item Extension: 12.6
  • Item Height: 1.6
  • Item Weight: 0.41
  • Item Width: 3.9
  • Master Pack Height: 2.1
  • Material: Steel
  • Package Length: 17.5
  • Packaging Type: cardboard

Professional Applications

  • Commercial Building Electrical Installation
  • Industrial Facility Wiring Projects
  • Multi-Unit Residential Properties
  • Professional Office Buildings
  • Retail and Commercial Establishments
  • Electrical Contractor Operations
  • Maintenance and Retrofit Projects

Why Choose Southwire Quality?

Southwire delivers proven reliability through steel construction and commercial-grade engineering. The SIMPULL HEAD series represents professional-quality cable installation tools designed for demanding commercial applications, providing consistent performance and durability that electrical contractors depend on for efficient project completion.

Manufacturer Resources

Product Specs

Items In Inner Pack:
5
Batteries Included :
No
Batteries Required :
No
Commercial Residential:
Commercial
Csa Certified:
No
Does The Item Contain Mercury :
No
Item Extension:
12.6
Item Height:
1.6
Item Weight:
0.41
Item Width:
3.9
Master Pack Height:
2.1
Package Length:
17.5
Packaging Type:
cardboard
Product Color:
Silver
Product Material:
Steel

Southwire SPH2-12 – Frequently Asked Questions

1) What size wire does the Southwire SIMPULL HEAD SPH2-12 work with?
The SPH2-12 pulling head is built for 2 AWG conductor. Southwire builds these heads per conductor size, so the head has to match the wire you are pulling. If you are pulling a different gauge, order the head for that gauge rather than forcing this one on.
2) How much room does a SIMPULL HEAD need to get through a tight conduit run?
The Southwire pulling head measures 12.6 by 3.9 by 1.6 inches, and that 1.6 inch figure is the one that matters in a congested raceway or a packed LB. Southwire calls it the lowest profile head in its class. If the head clears the tightest point in the run, the pull clears.
3) Do I have to buy SIMPULL HEADS one at a time or in a set?
They come 5 to an inner pack, which lines up with how they get used: a 3 phase plus neutral plus ground pull takes five heads at once. Packaging is cardboard, package length 17.5 inches.
4) Why are Southwire SIMPULL HEADS made in staggered lengths?
Staggering the heads keeps the conductors from bunching into one fat bundle at the front of the pull. Each head sits at a different point along the rope, so the leading section stays narrow and binds less through offsets and bends. That is the whole reason the 12 inch version exists as its own part.
5) Is the SIMPULL HEAD steel or plastic, and does it hold up for repeat use?
Steel, silver finish, and it weighs 0.41 lb per head. Steel is what lets it take the sustained tension of a long commercial pull rather than deforming the way a molded grip can.
6) Is the Southwire SIMPULL HEAD meant for commercial jobs or residential work?
Commercial is the rated application. That does not stop you using it on multi unit residential or a service upgrade, but the 2 AWG size and the head design are aimed at feeder and service pulls in commercial and industrial raceway.
7) Does the SIMPULL HEAD need batteries or any power source?
No batteries, and none required. The head is a purely mechanical pulling attachment, so nothing to charge and nothing that dies on you mid pull. It also contains no mercury, which matters if you are filing material declarations on an institutional or government job.
