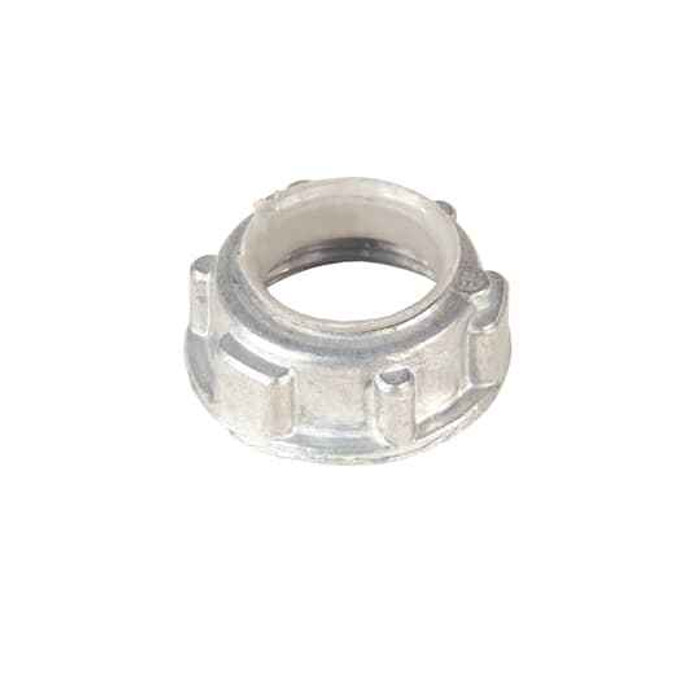

2 INSULATED BUSHING
Manufacturer Resources
Product Specs
- Number Of Batteries:
- 0
- Product Type:
- Insulated Bushing
- Department:
- Electrical
- Product Group:
- Conduit & Fittings
- Product Subgroup:
- Bushings
- Product Type2:
- Insulated Bushing
- Product Size:
- 2 Inch
- Product Material:
- Aluminum
Steel City CI2416 – Frequently Asked Questions
1) What size conduit does the Steel City CI2416 insulated bushing fit?
The CI2416 is a 2 inch insulated bushing, so it threads onto 2 inch trade size rigid or IMC conduit.
2) Is the Steel City CI2416 bushing metal or all plastic?
The body is aluminum with an insulating liner, not an all plastic bushing. That matters where an inspector wants a metallic bushing on the conduit end but still requires an insulated throat to protect the conductors.
3) Do I need an insulated bushing on a 2 inch conduit run, or will a plain bushing do?
An insulated throat bushing like the CI2416 is what you use where conductors leave the raceway and need protection from the cut thread edge. A plain metal bushing has no insulating liner. On larger raceways like 2 inch, with big conductors, the insulated type is the usual call.
4) How many options are there for the Steel City CI2416, or is it a single part?
It is a single part, model CI2416, in one size and one material. There is no finish or configuration to pick when ordering.
5) Will the CI2416 work on aluminum conduit as well as steel?
The bushing body itself is aluminum, which is why crews standardizing on aluminum raceway often spec it. It threads to standard 2 inch conduit thread either way.
