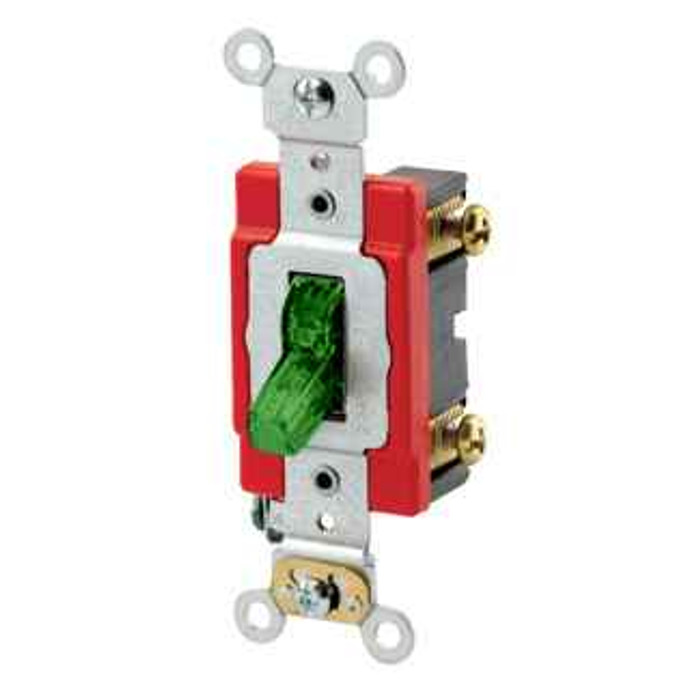

20 Amp, 120 Volt, Toggle Pilot Light - Illuminated ON - Req. Neutral Single-Pole AC Quiet Switch, Industrial Grade, Self Grounding, Back & Side Wired, - Green
Manufacturer Resources
Product Specs
- Actuator Material:
- Polycarbonate
- Amperage:
- 20 A
- Ansi:
- C-73
- Base Material:
- Thermoplastic
- Body Material:
- Thermoplastic
- Color:
- Green
- Contact Material:
- Silver Alloy
- Cover Material:
- Thermoplastic
- Csa C22 2 No 111:
- File #152105
- Device Type:
- Toggle Switch
- Dielectric Voltage:
- Withstands 1500V for 1 minute
- Endurance:
- 50,000 cycles minimum
- Feature:
- Pilot Light - Illuminated ON - Req. Neutral, Illuminated - Load ON (Pilot Light)
- Flammability:
- Rated V-2 per UL 94
- Function:
- Single-Pole
- Grade:
- Extra Heavy-Duty Industrial Specification Grade
- Ground Clips:
- Brass
- Grounding:
- Self-Grounding
- Grounding Screw:
- Brass 8-32
- Hp Rating:
- 1HP-120V
- Nema:
- WD-1 & WD-6
- Nom:
- 57
- Operating Temperature:
- -40°C to 65°C
- Overload Ul20 Test:
- 100 cycles of OL at 4.8 times rated current
- Product Id:
- Ratings are permanently marked on device
- Rohs:
- Compliant
- Strap Material:
- Steel
- Temperature Rise:
- Maximum 30 degrees C rise
- Terminal Accom :
- 14-#10 AWG back wired; #14-#12 AWG side wired
- Terminal Id:
- Brass-Hot Black-Hot White-Neutral Green-Gnd
- Terminal Screws:
- Brass 8-32
- Termination:
- Back or Side Wire
- Toggle:
- Polycarbonate
- Torque Range:
- 12-14 inch pounds
- Ul Fed Spec Ws896e:
- File #E7458
- Ul Standard:
- UL 20
- Voltage:
- 120 VAC
- Product Group:
- Electrical
