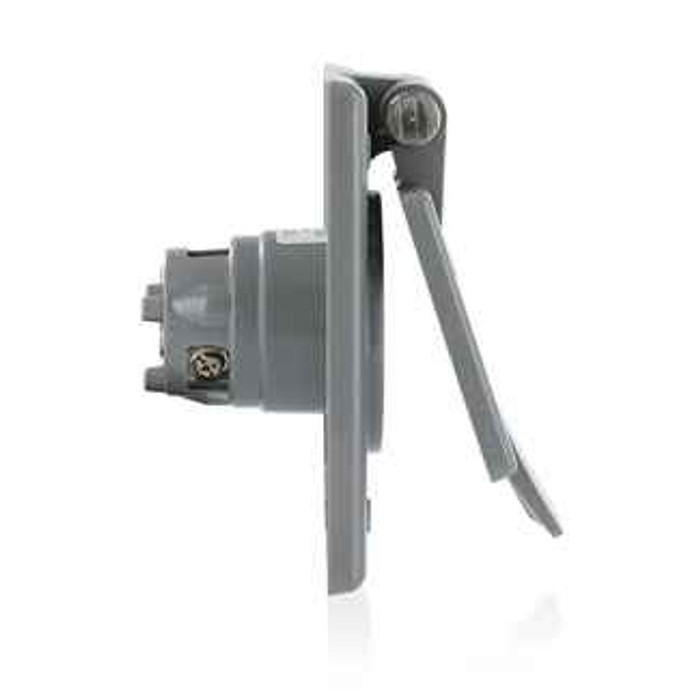

Leviton 5479-CWP 20A 250V NEMA 6-20R Industrial Grade Power Outlet Receptacle, Gray

The Leviton 5479-CWP is a 20 Amp, 250 Volt, NEMA 6-20R power outlet receptacle built for demanding industrial and commercial power circuits. This 2-pole, 3-wire straight blade device features grounding, standard wire wells wired construction, and a strap for secure mounting, all housed in a gray glass-filled thermoplastic body. Industrial grade and UL498 Listed, the 5479-CWP delivers dependable, code-compliant power connections in dry-location installations.

Key Features

  • Electrical Rating: 20 Amp, 250 Volt, NEMA 6-20R configuration, 2-Pole 3-Wire, engineered for demanding industrial power circuits.
  • Durable Construction: Body, face, and cover-and-plate are Glass-Filled Thermoplastic for impact resistance and long-term durability.
  • Grounding Design: Straight blade grounding receptacle with Brass line contacts and a Brass 8-32 grounding screw for secure, reliable grounding.
  • Standard Wire Wells Wired: Strap-mounted terminal design with Brass 10-32 terminal screws and an 18-10 AWG terminal accommodation range for straightforward field wiring.
  • Color-Coded Terminals: Brass-Hot, Green-Ground, and Silver-Neutral terminal identification simplifies correct wiring every time.
  • Industrial Grade Performance: Current Limiting rated for Full Rated Current and Dielectric Voltage withstands 1500V per UL498 for rugged, heavy-use environments.
  • Operating Range: Rated -40°C to 60°C for Dry environment installations.
  • Finish: Gray Glass-Filled Thermoplastic housing rated V-2 per UL 94 flammability standards.

Certifications & Compliance

  • UL498 Listed – File E13399
  • CSA C22.2 No. 42 Certified – File LR-16347
  • ANSI C-73 Compliant
  • NEMA WD-6 Dimensional Standard
  • UL 94 Flammability Class V-2

Technical Specifications

  • At Rated Voltage: 2 HP
  • Body Material: Thermoplastic Glass Filled
  • Cover And Plate Material: Glass-Filled Thermoplastic
  • Csa C22 2 No 42: File LR-16347
  • Current Limiting: Full Rated Current
  • Device Type: Straight Blade Flanged Inlet
  • Dielectric Voltage: Withstands 1500V per UL498
  • Face Material: Thermoplastic Glass Filled
  • Grounding Screw: Brass 8-32
  • Line Contacts: Brass
  • Operating Temperature: -40°C to 60°C
  • Product Id: Ratings are permanently marked on device
  • Terminal Accom: 18-10 AWG
  • Terminal Id: Brass-Hot, Green-Ground, Silver-Neutral
  • Terminal Screws: Brass 10-32
  • Ansi: C-73
  • Environment: Dry
  • Flammability Class: Rated V-2 per UL 94
  • Nema: WD-6
  • Pole: 2
  • Ul498: File E13399
  • Wire Count: 3
  • Product Voltage: 250 VAC
  • Product Color: Grey

Typical Applications

  • Industrial Power Distribution Circuits
  • Commercial and Industrial Electrical Installations
  • Dry-Location Power Outlet Wiring
  • Panel and Equipment Power Connections
  • Renovation and New Construction Wiring Projects

Why Leviton?

Leviton engineers the 5479-CWP with a Glass-Filled Thermoplastic body, face, and cover-and-plate, Brass line contacts, and Brass grounding and terminal screws for dependable, long-lasting performance. Backed by UL498 and CSA C22.2 No. 42 certifications and built to ANSI C-73 and NEMA WD-6 standards, this industrial grade receptacle delivers the reliable, code-compliant power connections professionals expect from Leviton wiring devices.

Manufacturer Resources

Product Specs

At Rated Voltage:
2 HP
Body Material:
Thermoplastic Glass Filled
Cover And Plate Material:
Glass-Filled Thermoplastic
Csa C22 2 No 42:
File LR-16347
Current Limiting:
Full Rated Current
Device Type:
Straight Blade Flanged Inlet
Dielectric Voltage:
Withstands 1500V per UL498
Face Material:
Thermoplastic Glass Filled
Grounding Screw:
Brass 8-32
Line Contacts:
Brass
Operating Temperature:
-40°C to 60°C
Product Id:
Ratings are permanently marked on device
Terminal Accom:
18-10 AWG
Terminal Id:
Brass-Hot, Green-Ground, Silver-Neutral
Terminal Screws:
Brass 10-32
Product Group:
Outlets
Department:
Electrical
Product Subgroup:
Switches & Receptacles
Amperage Rating:
20 A
Ansi:
C-73
Environment:
Dry
Flammability Class:
Rated V-2 per UL 94
Grounding:
Grounding
Nema:
WD-6
Pole:
2
Termination:
Standard Wire Wells
Ul498:
File E13399
Wire Count:
3
Product Voltage:
250 VAC
Product Color:
Grey
Product Type:
Receptacle
