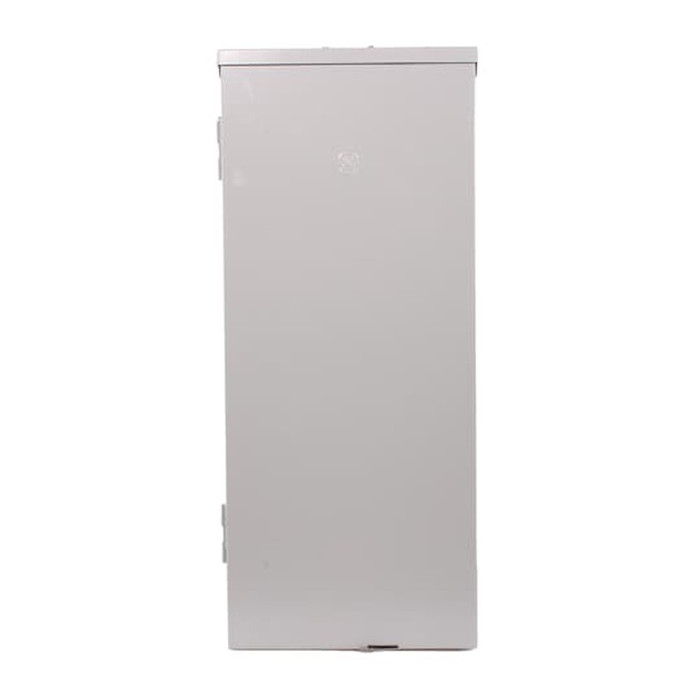

ABB 200A32CT CT Cabinet, 200A 1P3W 120/240V 22K IC, NEMA 3R

ABB 200A32CT CT Cabinet, 200A 1P3W 120/240V 22K IC, NEMA 3R

(No reviews yet) Write a Review

Model: TLM3220RCU

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,306.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

ABB 200A32CT CT Cabinet, 200A 1P3W 120/240V 22K IC, NEMA 3R

The ABB 200A32CT CT cabinet is a 200 A rated metering enclosure engineered for single phase, 3 wire (1P3W) 120/240V electrical service. Built with a 22K IC interrupt rating and housed in an outdoor NEMA 3R enclosure, this UL listed CT cabinet accepts either overhead or underground feeders, making it a flexible solution for utility metering and commercial service entrance applications.

Key Features

  • Amperage Rating: 200 A rating supports main service metering and distribution applications.
  • Wiring Configuration: 1 Phase, 3 Wire (1P3W) design for 120/240V electrical systems.
  • Interrupt Rating: 22K IC short-circuit interrupt capacity for added protection.
  • Feeder Flexibility: Accepts either overhead or underground feeders for versatile installation.
  • Outdoor Enclosure: NEMA 3R rated enclosure built for outdoor service entrance installations.
  • UL Listed Construction: Meets UL standards for safety and code-compliant performance.

Certifications & Compliance

  • UL Listed
  • NEMA 3R Outdoor Enclosure Rating

Technical Specifications

  • Standard: UL
  • Number Of Feeders: Either
  • Phase: 1 Phase
  • Enclosure: Outdoor
  • Wiring Configuration: 3 Wire
  • Amperage Rating: 200 A
  • Packaging: 1 EA

Typical Applications

  • Utility Metering Installations
  • Commercial and Industrial Service Entrances
  • Outdoor CT Cabinet and Meter Socket Applications
  • New Construction and Service Upgrade Projects

Why ABB?

ABB's 200A32CT CT cabinet combines a UL listed, 200 A rated design with a durable outdoor NEMA 3R enclosure and 22K IC interrupt rating, giving contractors and utilities a dependable, code-compliant metering solution for demanding service entrance applications.

Manufacturer Resources

Spec Sheet

Product Specs

Product Type:
CT Cabinet
Amperage Rating:
200A
Voltage Rating:
120/240V
Configuration:
NEMA 3R Enclosure
Standards:
UL
Listing:
UL Listed
Department:
Electrical
Product Group:
Power Distribution
Product Subgroup:
Metering & Meter Sockets

ABB TLM3220RCU – Frequently Asked Questions

1) Will the ABB 200A32CT CT cabinet work on a single phase 120/240V residential or light commercial service?
That is exactly the service it is built for. The 200A32CT is rated 200A, single phase, 3 wire, at 120/240V, which covers a standard residential or light commercial service entrance. If the building is fed three phase or at 277/480V, this is the wrong cabinet.
2) Can the 200A32CT CT cabinet be mounted outdoors on an exterior wall?
Yes. It ships in a NEMA 3R enclosure, which is the outdoor rating utilities normally require for a wall-mounted service entrance cabinet exposed to rain and sleet. NEMA 3R is not a washdown or dust-tight rating, so for an indoor dusty process area or a hosedown location you would spec a different enclosure type.
3) Does this CT cabinet take an overhead service drop or an underground lateral?
Either one. The 200A32CT is built to accept overhead or underground feeders, so the same cabinet works whether the utility is dropping conductors from a pole or pulling a lateral up from a trench. That matters on service upgrades where the feed type changes mid-project.
4) Is the ABB 200A32CT UL listed for a code-compliant service entrance?
It is UL listed and built to UL standards, which is what most inspectors and utilities want to see on a metering enclosure at the service entrance. Note that utility approval is separate from the UL listing, so the local power company still has to have the cabinet on its accepted equipment list.
5) What is the ABB model and part number I should order for a 200A NEMA 3R CT cabinet?
The ABB catalog number is TLM3220RCU, sold and referenced as the 200A32CT, a 200A 1P3W 120/240V CT cabinet in a NEMA 3R outdoor enclosure. It ships one each, so quantity is per cabinet.
6) Does the 200A32CT include the current transformers and the meter socket?
It is the CT cabinet itself, the enclosure that houses the metering current transformers for a 200A 1P3W 120/240V service. On most jobs the utility supplies and installs the CTs and the meter, and the meter socket is separate equipment, so plan the order around the cabinet plus whatever the serving utility does not furnish.
7) Can I use a CT cabinet like this instead of a self-contained meter socket on a 200A service?
A self-contained socket is the usual choice at 200A and the meter measures current directly. You go to a CT cabinet like the 200A32CT when the utility requires instrument transformer metering on that service, often for commercial accounts or where the service equipment layout calls for it. The deciding factor is the utility's metering spec for the account, not the amperage alone.
