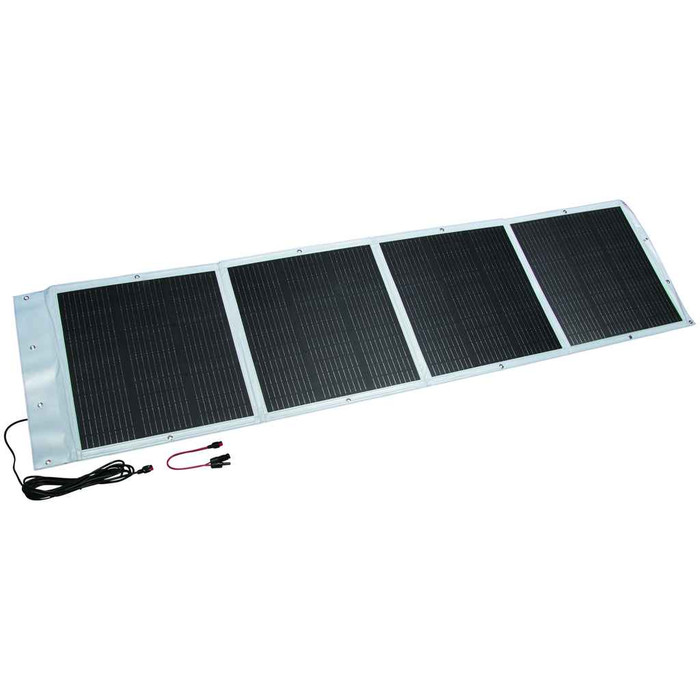

200W Portable Solar Panel
29251 - spec sheet
Warnings
- Estimated times and charges are approximate, and not additive, and may vary by application and ambient environmental conditions and were determined based on controlled experiments.
- Do not place equipment and its accessories in the trash. Items must be properly disposed of in accordance with local regulations. Please see www.epa.gov/recycle for additional information.
- Read, understand, and follow the instruction manual to ensure safe operation.
- Failure to observe these warnings can result in risk of fire, electric shock, serious injury, and/or property damage.
- Do not use the product if it is damaged or modified. Damaged or modified equipment may exhibit unpredictable behavior resulting in fire or risk of injury.
Features
- Integrated USB-A port for direct charging of USB devices
- APP® compatible connector to MC4 adapter, sold separately (Cat. No. 29215)
- Up to 400W output when chained with another 200W panel for faster off-grid recharge times
- Four monocrystalline panels fold, creating a protective, compact case for easy storage and versatility
- Long reaching 16.4-Foot (5 m) cable conveniently fits in the integrated storage pocket
- Reflective fabric on front and rear to help locate panels in the dark
- Kickstands angle the panel to help maximize the surface exposed to the sun, and LED lights indicate the level of power output
- Adjustable Shoulder Strap, Reinforced Handle, Kickstands, Solar Power Indicator Lights, Chain 2 Solar Panels (up to 400 W)
- 200W max power output to extend power station runtime in the field
- Carrying case and IP65 rated panel helps keep the panel protected in inclement weather
- Replacement carrying case (Cat. No. 29216) for the 200W Portable Solar Panel, sold separately
29251 - spec sheet
Manufacturer Resources
Product Specs
- Amperage:
- 10.8 Amps
- Cable Size:
- 16 AWG
- Depth:
- 23.0700 in
- Input Port:
- APP® compatible Input
- Number Of Panels:
- 4
- Operating Temperature:
- 32° to 185°F (0° to 85°C)
- Output Port:
- APP® compatible - 24.6V/10.8A, USB-A - 5V/3.0A
- Overall Height:
- 23.07" (58.6 cm)
- Overall Length:
- 91.34" (232 cm)
- Overall Width:
- 2" (5.1 cm)
- Standard:
- RoHS, CE, EMC, REACH, FCC
- Weather Resistant:
- IP65
- Department:
- Electrical
- Product Group:
- Tool Sets
- Product Subgroup:
- Tool Kits
- Product Type:
- Monocrystalline
- Product Voltage:
- 19.8 VDC Maximum
- Product Details:
- Monocrystalline
- Product Wattage:
- 200W
- Product Height:
- 3.0000 in
- Product Material:
- Monocrystalline Silicon
- Product Weight:
- 17.9000 lbs
- Product Width:
- 20.5600 in
