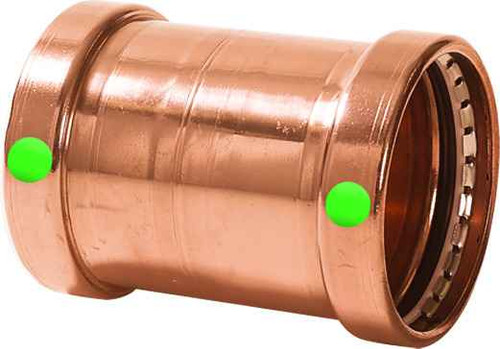

20738 Viega ProPress coupling With stop Smart Connect technology Copper, 4'' x 4''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2
- Country Of Origin:
- Made In Germany
- Material Type:
- Copper
- Product Dimension:
- 4'' x 4''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Couplings
- Product Type:
- Coupling
- Product Length:
- 4.681"
- Product Height:
- 4.681"
- Product Weight:
- 2.881 lbs
- Product Width:
- 5.787"
Viega 20738 – Frequently Asked Questions
1) Does the Viega ProPress 20738 coupling have a tube stop, and when would I want one without?
The 20738 is a 4 inch ProPress copper coupling made with a stop, meaning the internal bead keeps each pipe end from sliding past center. That is what you want on a normal joint because it sets insertion depth for you. On a repair where you have to slip the coupling over an existing fixed run and slide it back, you want a coupling without stop instead so the fitting can travel along the tube.
2) What size and type of pipe does the Viega 20738 coupling join?
It joins two 4 inch press ends, copper to copper, in a straight run. The connection is press on both sides (P1 x P2), so both ends get crimped with a press tool and jaw sized for 4 inch ProPress. There are no threaded or sweat ends on it.
3) What is Smart Connect on this Viega 4 inch coupling and why does it matter on a big job?
Smart Connect is Viega's unpressed-joint feature: if a connection gets missed during install, it leaks visibly at low pressure during the test so you find it before the walls close up. On a 4 inch main with a lot of joints, that is the practical reason contractors spec ProPress over sweat here.
4) Can I press this Viega coupling onto steel or PEX?
No. The 20738 is a copper press fitting and belongs on copper tube only. Viega's steel and PEX systems use different fittings and different sealing elements, so transitioning between materials takes a dedicated adapter, not this coupling.
