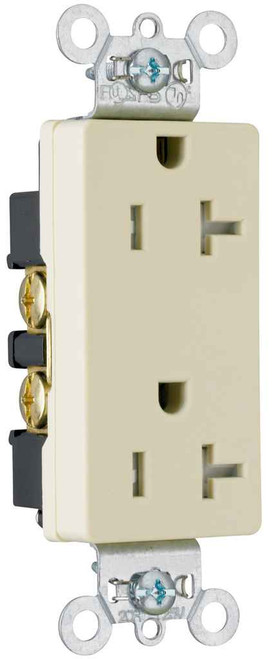

Pass & Seymour TR63HW 20A 125V Hospital-Grade Tamper-Resistant Duplex Receptacle, Back and Side Wire, White

Pass & Seymour TR63HW 20A 125V Hospital-Grade Tamper-Resistant Duplex Receptacle, Back and Side Wire, White

(No reviews yet) Write a Review

Model: TR63HW
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$110.94
$60.94
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
20A 125V Hospital-Grade Tamper-Resistant Duplex Receptacle, Back and Side Wire, White

  • Certifications

    • cULus Listed

  • Features

    • Two drive screws anchor strap to back body and face.
    • Extra heavy-duty brass, one-piece mounting strap with integral ground.
    • Impact-resistant nylon face and back body.
    • AC receptacles available in 15 and 20 Amp, 125V
    • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
    • One-piece, nickel-plated: brass, triple-wipe power contacts for lasting retention.
    • Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body.
    • Thermoplastic dual mechanism shutter system to help prevent insertion of foreign objects.
    • Exclusive patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation.
    • External screw-pressure-plate back wire clamps with #10 brass terminal screws for visual assurance of a good connection.


TR63HW - spec sheet

Manufacturer Resources

Product Specs

Country Of Origin:
Mexico
Depth:
0.9 in
Product Color:
White
Product Finish:
Matte
Product Height:
2.75 in
Product Line:
Pass & Seymour
Product Width:
1.625 in
