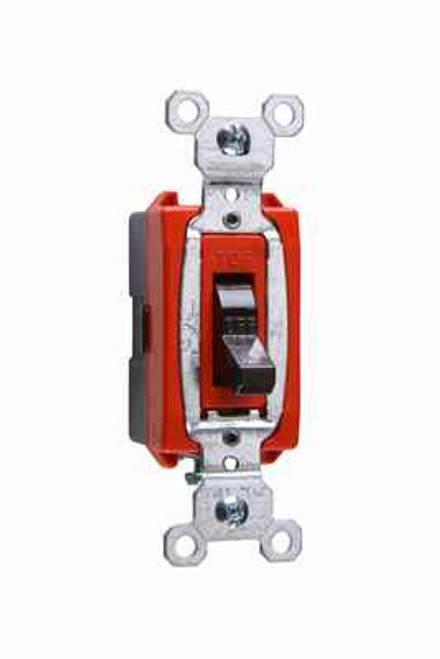

Pass & Seymour 20A Double Pole Double Throw Switch Brown Thermoplastic Professional Grade

Pass & Seymour 20A Double Pole Double Throw Switch Brown Thermoplastic Professional Grade

Professional Grade Double Pole Double Throw Switching Solution

The Pass & Seymour 20A Double Pole Double Throw Switch delivers reliable switching performance with durable thermoplastic construction and brown matte finish. This professional-grade switch features oversize silver alloy contacts, nylon molded components, and side wired terminals accepting #14-#10 AWG copper conductors for versatile installation applications.

Professional Features & Benefits

• 20A Double Pole Double Throw Configuration: Provides reliable switching control for dual-circuit applications with professional-grade current handling capacity.
• Oversize Silver Alloy Contacts: Ensures long operational life and superior heat dissipation for consistent performance under load conditions.
• Durable Nylon Construction: Bodies, covers, and toggles molded of durable nylon provide lasting durability and reliable operation in demanding environments.
• Side Wired Terminals: Accept #14-#10 AWG copper or copper-clad conductors with fiber terminal insulation barriers for secure, professional connections.
• Versatile Mounting Options: Can be mounted in standard device boxes or NEMA 1 sheet steel enclosures for flexible installation requirements.
• cULus, UL, and CSA Listed: Meets rigorous safety and performance standards for professional electrical installations and code compliance.
• Brown Matte Finish: Thermoplastic construction with brown matte finish provides professional appearance and durability in various applications.

Technical Specifications

• Country Of Origin: Mexico
• Depth: 1.469 in
• Product Color: Brown
• Product Finish: Matte
• Product Height: 3.281 in
• Product Line: Pass & Seymour
• Product Material: Thermoplastic
• Product Width: 1.5 in

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Residential electrical switching and control systems
• Commercial facility power distribution and control
• Industrial control panel and switching applications
• Professional electrical installations requiring double pole double throw switching
• Generator transfer and backup power switching systems
• Multi-circuit control and isolation applications

Why Choose Pass & Seymour Quality?

Pass & Seymour delivers professional-grade reliability with cULus, UL, and CSA Listed certifications ensuring code compliance and safety. The durable thermoplastic construction with oversize silver alloy contacts provides long-term performance and dependable operation for demanding electrical applications.
