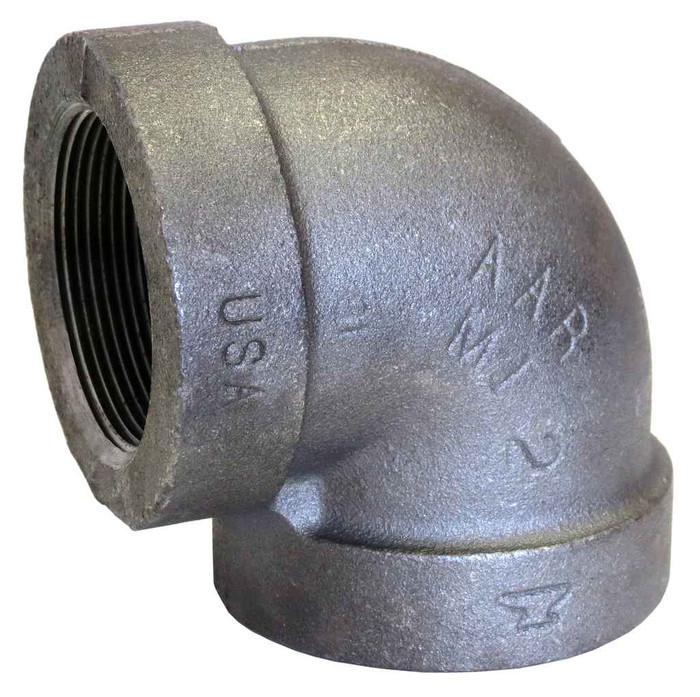

21/2 XH BLK MI 90 ELL
Manufacturer Resources
Product Specs
- Dimensions Specification:
- ASME B16.3
- End Conn Size 1:
- FPT
- End Conn Size 2:
- FPT
- Material Specification:
- ASTM A-197
- Pressure Rating Specification:
- ASME B16.3
- Size 1:
- 2.5
- Size 2:
- 2.5
- Strength:
- XH
- Thread Specification:
- ASME B1.20.1
- Ul Fm:
- Yes
- Department:
- Plumbing
- Product Group:
- Pipe Fittings
- Product Subgroup:
- Elbows
- Product Type:
- 90° Elbow
- Product Finish:
- Black
- Product Material:
- Malleable Iron
- Product Weight:
- 6.51 lbs
ASC Engineered Solutions 310501804 – Frequently Asked Questions
1) What thread type and size are the ends on this 2-1/2 inch black malleable iron 90 degree elbow?
Both ends are 2-1/2 inch FPT, meaning female NPT taper threads cut to ASME B1.20.1. It mates directly with 2-1/2 inch threaded black steel pipe or a male-threaded nipple. There is no reducing on this fitting, both openings are the same 2-1/2 inch size.
2) Can I use this black iron elbow on a potable water line?
No. Black malleable iron is for gas, sprinkler, compressed air, steam, and similar non-potable service. It has no protective coating and will rust in water service. For potable water you want galvanized malleable iron, copper, or CPVC instead.
3) What material spec does this ASC malleable iron fitting meet?
The casting is malleable iron to ASTM A-197, the standard grade for cupola malleable iron pipe fittings, with dimensions and pressure rating per ASME B16.3. If a submittal package asks you to name the material standard on a black malleable fitting, those are the two lines to put on it.
4) How heavy is a 2-1/2 inch extra heavy black malleable 90, and does that matter for overhead work?
It weighs 6.51 lbs. That is worth planning for on overhead runs, since an extra heavy 2-1/2 fitting plus a filled pipe run adds up fast at the hanger spacing. Support the fitting close in rather than letting it hang off a long unsupported leg.
5) What is the ASC part number for the 2-1/2 inch XH black malleable 90 degree elbow?
Order it as ASC Engineered Solutions part 310501804. That is the 2-1/2 by 2-1/2 inch extra heavy black malleable iron 90 degree elbow with FPT ends.
