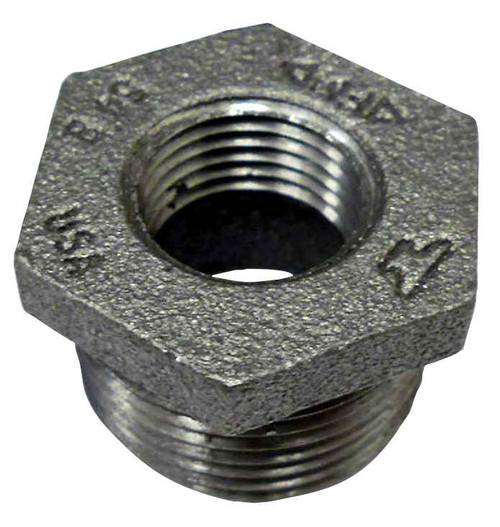

21/2X2 GALV MI HEX BUSHING
Manufacturer Resources
Product Specs
- Dimensions Specification:
- ASME B16.3
- End Conn Size 1:
- MPT
- End Conn Size 2:
- FPT
- Finish Specification:
- ASTM A-153
- Material Specification:
- ASTM A-197
- Pressure Rating Specification:
- ASME B16.3
- Size 1:
- 2.5
- Size 2:
- 2
- Strength:
- STD
- Thread Specification:
- ASME B1.20.1
- Ul Fm:
- Yes
- Department:
- Plumbing
- Product Group:
- Pipe Fittings
- Product Subgroup:
- Bushings
- Product Type:
- Bushing
- Product Finish:
- Galvanized
- Product Material:
- Malleable Iron
- Product Weight:
- 1.05 lbs
ASC Engineered Solutions 319907960 – Frequently Asked Questions
1) What sizes does the ASC Engineered Solutions galvanized hex bushing reduce between?
It takes a 2-1/2 inch male pipe thread down to a 2 inch female pipe thread. The large end (2-1/2) threads into a fitting or coupling, and 2 inch pipe or a 2 inch male-thread fitting screws into the center. Manufacturer part number 319907960.
2) Is this hex bushing approved for fire sprinkler piping?
It carries UL/FM approval, which is what an inspector looks for on wet and dry sprinkler system piping. It is galvanized malleable iron, standard pattern, which is the usual combination for dry-pipe and pre-action sprinkler branch work.
3) Is this a standard or extra heavy bushing? Can I use it on a 150 pound system?
Standard weight (STD) class, with the pressure rating established under ASME B16.3. Standard pattern galvanized malleable iron is the 150 class fitting in that standard; if your drawing calls for 300 class, you need an extra heavy bushing instead.
4) Is the galvanizing on this bushing hot dip or electroplated?
The coating is specified to ASTM A-153, which is hot dip galvanizing on iron and steel hardware. That is the finish spec called out for corrosive service and outdoor or damp locations, and it holds up better than a plated coating when you are cutting threads into it.
5) What grade of malleable iron is this bushing made from?
The casting meets ASTM A-197, the specification for cupola malleable iron used in threaded pipe fittings. Malleable iron is what you want over cast iron here, since the hex flats take a wrench without cracking.
6) How much does the 2-1/2 x 2 galvanized hex bushing weigh for a materials takeoff?
1.05 lbs each. Worth noting if you are pricing freight on a full box for a sprinkler or process piping job.
