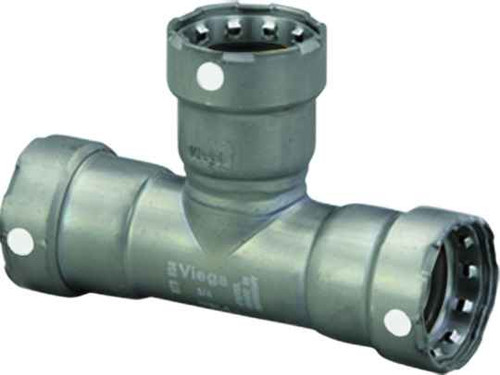

25315 Viega MegaPress tee Smart Connect technology Carbon steel, 1-1/4'' x 1-1/4'' x 1-1/4''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2 x P3
- Country Of Origin:
- Made in Germany
- Material Type:
- Carbon Steel
- Product Dimension:
- 1-1/4'' x 1-1/4'' x 1-1/4''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 6.457"
- Product Height:
- 2.205"
- Product Weight:
- 1.62 lbs
- Product Width:
- 4.303"
Viega 25315 – Frequently Asked Questions
1) Will the Viega MegaPress 25315 tee work on 1-1/4 inch carbon steel pipe?
Yes. The 25315 MegaPress tee is a 1-1/4 x 1-1/4 x 1-1/4 inch fitting, so all three ports take 1-1/4 inch pipe with no reducing. It is carbon steel, matched to black iron or carbon steel pipe systems rather than copper.
2) Is the Viega 25315 a press fitting or does it have to be welded or threaded?
It presses. The 25315 is a press-connect tee with three press ports, so the branch goes in with a press tool and jaw instead of cutting threads or striking an arc. That is the whole reason to reach for MegaPress on carbon steel pipe: no hot work permit, no threading machine on site.
3) What does Smart Connect do on a Viega MegaPress fitting?
Smart Connect is a feature of the sealing element that lets an unpressed joint leak on purpose during test. Fill and pressurize the system before pressing and any connection you missed shows itself, so you find it at test rather than after the ceiling is closed. It does not change how the 25315 tee is pressed, only how you verify the run.
4) How much room do I need to fit a 1-1/4 inch MegaPress tee in a tight ceiling?
The tee itself measures 6.457 inches long, 4.303 inches wide and 2.205 inches high, and weighs 1.62 lbs. Plan clearance beyond that for the press jaw, which needs to swing fully around each port. In a tight joist bay or against a wall, press the branch before the run goes up.
5) What part number do I order for a 1-1/4 inch MegaPress carbon steel tee?
Viega model 25315. It is a single-configuration item, all three ports 1-1/4 inch press, so there is nothing further to specify on the order beyond quantity. Made in Germany.
6) Do I need anything besides the tee to make up a MegaPress joint?
The fitting is one piece with the sealing element already in it, so the tee is all the hardware you buy. What the job needs is the tooling: a press tool with the correct 1-1/4 inch jaw or ring for MegaPress, plus a pipe cutter and a deburring tool. The pipe end has to be cut square, deburred, and marked to insertion depth before pressing.
