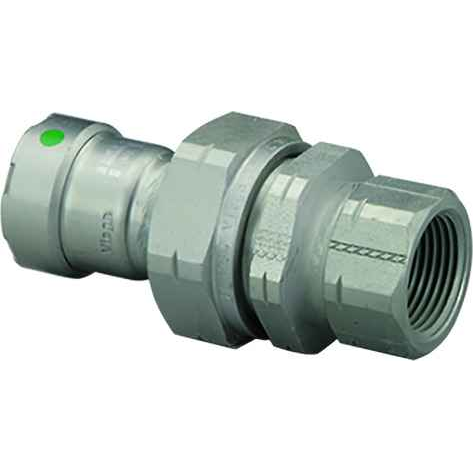

25655 Viega MegaPress union Smart Connect technology Carbon steel, 3/4'' x 3/4''
Manufacturer Resources
Product Specs
- Connection Type:
- P x FPT
- Country Of Origin:
- Made in Germany
- Material Type:
- Carbon Steel
- Product Dimension:
- 3/4'' x 3/4''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 3.197"
- Product Height:
- 1.969"
- Product Weight:
- 1.028 lbs
- Product Width:
- 2.165"
Viega 25655 – Frequently Asked Questions
1) What connections does the Viega MegaPress 25655 have?
The Viega MegaPress 25655 is a 3/4 inch press by 3/4 inch female pipe thread fitting (P x FPT). The press end goes onto 3/4 inch carbon steel pipe with a MegaPress jaw, and the threaded end takes a male NPT nipple, valve, or gauge. That makes it the transition point where you get off pressing and onto threads.
2) Can I use the Viega 25655 MegaPress on black iron gas or steam pipe?
It's a carbon steel MegaPress fitting sized for 3/4 inch pipe, which is the line Viega makes for black iron and other carbon steel pipe systems. Use it on 3/4 inch carbon steel pipe only; it is not a copper or PEX fitting, so do not press it onto tube.
3) What is Smart Connect on the Viega MegaPress 25655 and why does it matter on a punch list?
Smart Connect is the feature built into the 25655 that lets an unpressed connection leak intentionally during pressure testing, so an installer can spot a joint that was missed before the system is signed off. On a large repipe with dozens of joints, that's the difference between finding the miss at test and finding it in a finished ceiling.
4) How much room do I need around the Viega 25655 in a tight chase?
The fitting body measures 3.197 inches long, 2.165 inches wide, and 1.969 inches high, and weighs 1.028 lbs. Those are the fitting dimensions only. Budget additional clearance for the press tool jaw, which needs to swing fully around the press end.
5) Is the Viega 25655 a tee or a two-end fitting?
It is a two-end union style fitting with one 3/4 inch press connection and one 3/4 inch female thread. If you need to branch a line, a 3/4 inch MegaPress tee is the part to order instead.
